描述

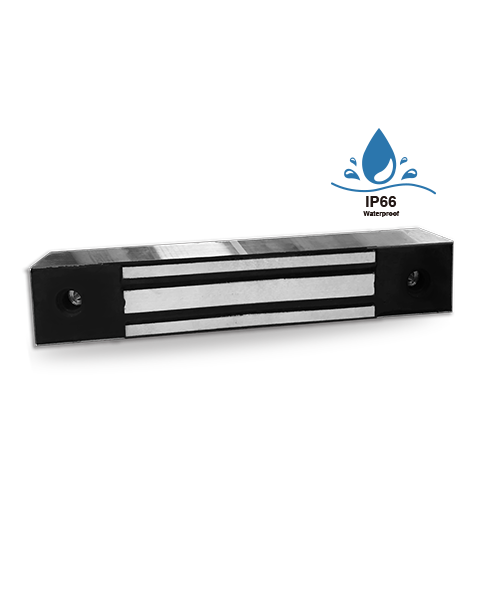

AR-0600M-WPF
Outdoor Electronic Magnetic Lock 600LBS(Face Mount)
AR-0600M-WPF 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- The lock body of the full magnetic lock is meticulously crafted with SUS304 stainless steel and UL94V0 fire-resistant and flame-retardant materials.
- Holding force increased by 10%, 250Kgs → 270Kgs
規格
AR-0600M-WPF
| Operating Voltage | 12VDC/24VDC |
| Current Draw | 560mA/12VDC ； 280mA/24VDC |
| Lock Type | Lock Housing: Allumunium Alloy, Armature Plate: Pure Iron, Bracket: Allumunium Alloy |
| Holding Force(kg) | 270 |
| Selenoid Test | Over 500,000 times |
| Temperature | Lock Surface: ≦ ambient temperature ± 20°C Operating:-20℃ ~ +70℃ |
| Humidity | 0~95% non-condensing |
| Dimmension (mm) | Magnet: 43(H) x 258(W) x 37(D) |
| Electronic Magnetic Lock Net Weight (kg) | approx.1.85kg |
| Door Monitoring Output | — |
| LED indicator | — |
