Soyal AR-1207A-29 Electric Drop Bolt Lock – Fail-Safe 是Soyal電鎖。香港防盜為安裝商及經銷商，負責開孔、對準門鉸、對接控制器及消防解鎖。規格以下方原廠資料為準。

相關方案：Soyal 門禁安裝、門禁系統、貨倉方案。選型可先參閱以上方案頁；原廠規格見下方。

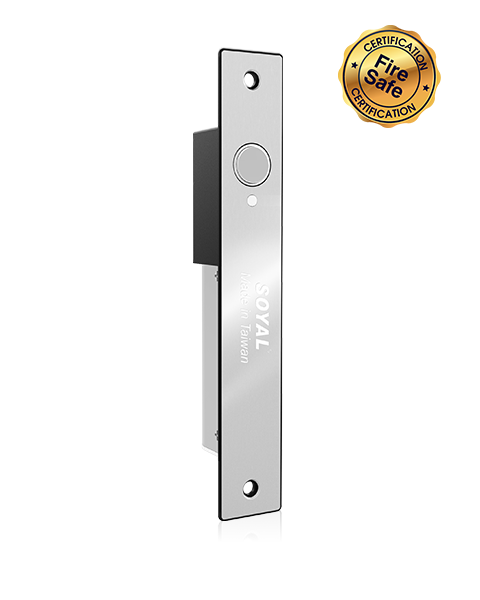

AR-1207A-29

Electric Drop Bolt Lock – Fail-Safe。

Item NO.	Fail-Safe Electric Drop Bolt Lock AR-1207A-29/36
Suitable Installation	Public Space
Distance between screw hole and bolt	29mm: AR-1207A-29 36mm: AR-1207A-36
Operating Voltage	DC12V-24V
Current Draw	1A(12V) / 0.5A(24V)
Power Saving Mode	220mA (12V) / 110mA (24V)
Material	Dropbolt: 304 Stainless Steel； Lock Body: Union Body Zinc Alloy ； Strike Plate: Stainless Steel ； Bracket: Allumunium Alloy
Temperature	Lock Surface: Low Temperature Operating: -20℃ ~ +70℃
Selenoid test	Over 500,000 times
Humidity	0∼90%(non-condensing)
Dimmension (mm)	Distance between screw hole and bolt 29mm: Lock Body: 200(H) x 32(W) x 32(D) / Strike Plate: 104(H) x 25.5(W) x 2(D) / Dropbolt Length: 16 mm Distance between screw hole and bolt 36mm: Lock Body: 205(H) x 32(W) x 32(D) / Strike Plate: 104(H) x 25.5(W) x 2(D) / Dropbolt Length: 16 mm
Net Weight (g)	approx.500
Time Delay	0s, 3s, 9s
LED Indicator	YES
