描述

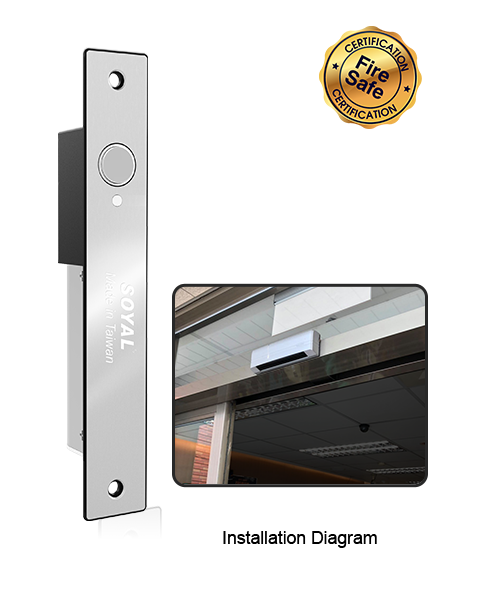

AR-1207A-5065/ 5085
Electric Bolt Lock for Automatic Door – Fail-Safe
AR-1207A-5065/ 5085 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- [Ultra Thin & Narrow] Innovation Technology, Smart / Simple / Elegant
規格
Electric Bolt Lock for Automatic Door AR-1207A-29/36-5065/ 5085
| Suitable Installation | Automatic Slide Door |
| Distance between screw hole and bolt | 29mm: AR-1207A-29-5065 / AR-1207A-29-5085 36mm: AR-1207A-36-5065 / AR-1207A-36-5085 |
| Operating Voltage | DC12V-24V |
| Current Draw | 1A(12V) / 0.5A(24V) |
| Power Saving Mode | 220mA (12V) / 110mA (24V) |
| Material | Dropbolt: 304 Stainless Steel； Lock Body: Union Body Zinc Alloy ； Strike Plate: Stainless Steel ； Bracket: Allumunium Alloy |
| Temperature | Lock Surface: Low Temperature Operating: -20℃ ~ +70℃ |
| Selenoid test | Over 500,000 times |
| Humidity | 0∼90%(non-condensing) |
| Dimmension (mm) | Distance between screw hole and bolt29mm: Lock Body: 200(H) x 32(W) x 32(D) / Strike Plate: 104(H) x 25.5(W) x 2(D) / Dropbolt Length: 16 mm Distance between screw hole and bolt36mm: Lock Body: 205(H) x 32(W) x 32(D) / Strike Plate: 104(H) x 25.5(W) x 2(D) / Dropbolt Length: 16 mm |
| Net Weight (g) | approx. 500 |
| Time Delay | 0s, 3s, 9s |
| LED Indicator | YES |
