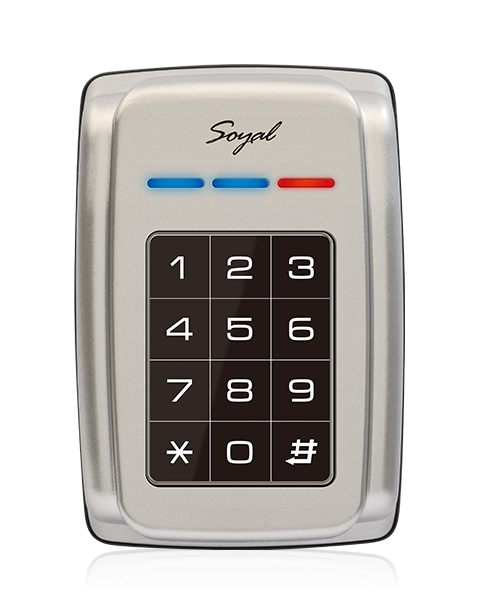

AR-321-K
Vandal-proof RFID Access Reader
AR-321-K 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- Durable, Weather & Corrosion Resistance
- 3 Sets of LED
- Glow in Dark
- Fully Sealed Protection
規格
Frequency / UID Bits / RF Reading Range / Read/Write
| B (125Khz) | D (13.56Mhz) | |
|---|---|---|
| Frequency | EM | ISO 14443/ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) , iCASH Card |
| UID Bits | 24~32 (Adjustable) | |
| RF Reading Range | 3-7 cm | 1-3 cm |
| Read/Write | Read Only | Read/Write |
RFID Crypto / Communication interface
| B (125Khz) | D (13.56Mhz) | |
|---|---|---|
| RFID Crypto | No | CC Certification: 3DES Crypto comply with EAL4+ |
| Host | RS-485 (9600 bps) | RS-485 (9600 bps) SSC (Soyal Security Communication) |
| Serial | UART PORT (Only Output) | |
| Wiegand Input | Wiegand 24~34 | |
| Wiegand Output | Wiegand Data 0 Data 1 | |
DI/DO
| DI | LED (Red) LED (Green) Buzzer |
||
| Relay ouput | No | ||
| Open Collect Output | No | ||
Hardware Specifications
| Power Voltage | 12-24VDC | |||
| Power Consumption | <1W | |||
| Indicator | LED | 3 Bi-Color LED (Blue/Red) | ||
| Buzzer | 1 | |||
| TAMPER | No | |||
| Housing Material | Zinc Alloy (Fire-proof level: 94V0) | |||
| Color | Chrome | |||
| Keypad | Illuminated Touch-Panel / * Invisible Keypad Function |
|||
| Dimension (mm) | 114(H)X78(W)X33(D) | |||
| Net Weight(g) | approx. 290 | |||
| Ingress Protection | IP56 | |||
| Environment | Operating Temperature | -20℃ ~ +70℃ | ||
| Storage Temperature | -25℃ to +70℃ | |||
| Operating Humidity | 0%~90% (non-condensing) | |||
| Storage Humidity | 0%~95% (non-condensing) | |||
