描述
Soyal AR-323-D Smart Digital Door Lock 是Soyal電鎖。香港防盜為安裝商及經銷商，負責開孔、對準門鉸、對接控制器及消防解鎖。規格以下方原廠資料為準。
相關方案：Soyal 門禁安裝、門禁系統、貨倉方案。選型可先參閱以上方案頁；原廠規格見下方。

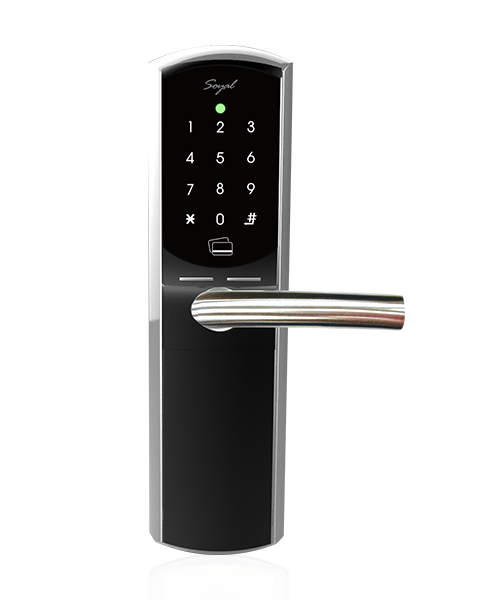

AR-323-D
Smart Digital Door Lock。
| Frequency | 13.56MHz | |
| Supported Tags | ISO 14443 /ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) | |
| UID Bits | 24~32 (Adjustable) | |
| RFID Reading Range | 2-8cm | |
| RFID Crypto | CC Certification: 3DES Crypto comply with EAL4+ | |
| Host | RS-485 (9600 bps) SSC (Soyal Security Communication) |
|
| Serial | UART PORT (Only Output) | |
| Wiegand Input | Wiegand 24~34 | |
| Wiegand Output | No | |
| Lock Type | US | |
| Door Thickness |
40mm ~ 80mm |
|
| Opening Method | RH: Right Push / LH: Left Push / RHR: Right Pull / LHR: Left Pull | |
| Unlock Operation | 13.56MHz tags, PIN CODE, and mechanical key | |
| Power Supply | 9-24VDC | ||
| Power Consumption | <3W | ||
| Indicator | LED | Bi-Color LED (Green/Red) | |
| Buzzer | 1 | ||
| Housing | Zinc Alloy | ||
| Keypad | Illuminated Touch Panel | ||
| Color | Black | ||
| Dimension (mm) | 276(H)X26(W)X75(D) | ||
| Net Weight(kg) | approx. 3.9 | ||
| Enviroment | Operating Temperature | -20℃ ~ +70℃ | |
| Storage Temperature | -40℃ to +75℃ | ||
| Operating Humidity | 0%~90% (non-condensing) | ||
| Storage Humidity | 0%~95% (non-condensing) | ||
數字以原廠規格書為準。
電鎖安裝、調試、保養及維修
香港防盜（持牌主體傑成系統有限公司 KNS SYSTEM LTD）為Soyal電鎖的安裝商及經銷商，保安牌照 1507、電業承辦商 029394。工作包括開孔、對準門鉸、對接控制器及消防解鎖。
查詢 2122-9527，WhatsApp 9439-8568。保養見保安系統保養。系統選型見門禁系統。Soyal安裝見Soyal 門禁安裝。
