描述

Soyal AR-327-E Multi-Function Graphic Proximity Controller 是Soyal門禁控制器。香港防盜為安裝商及經銷商。門數及擴展以原廠規格為準，並預留消防解鎖及 UPS。此類產品並非牆面拍卡讀頭。

相關方案：Soyal 門禁安裝、門禁系統、貨倉方案。選型可先參閱以上方案頁；原廠規格見下方。

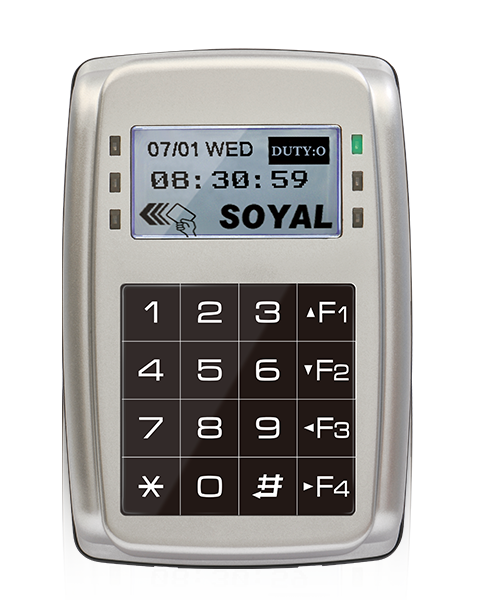

AR-327-E

Multi-Function Graphic Proximity Controller。

	B (125Khz)	D (13.56Mhz)	S (Dual Band)
Frequency	ISO18000-2: EM4001 and EM4095 compatible	ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica / iCASH Card	125kHz: ISO18000-2: EM4001 and EM4095 compatible 13.56MHz: ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica / iCASH Card
UID Bits	24~64 Bit (Adjustable)
RF Reading Range	3-7 cm	1-5 cm	1-7 cm

	B (125Khz)	D (13.56Mhz)	S (Dual Band)
RFID Crypto	—	CC Certification: AES Crypto comply with EAL5+
Host	RS-485 (9600 bps) TCP/IP (Optional By Order) POE (Optional By Order) SSC (Soyal Security Communication)
Serial	TTL UART (4800~115200 bps) X2 (half-duplex)
Wiegand Input	Wiegand 26~64
Wiegand Output	Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal

	Main Controller	Wiegand Output Port
DI	Egress X1 Door Status X1	Egress X1 Door Status X1
Door Lock Output	Door Lock Relay X1	Open Collector X1
Alarm Output	Relay X1
Wiegand Port	—	Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1
Open Collect Output	Arming Output X1 Security Trigger Signal X1 Duress Output X1
Tamper	Limit switch (1 Form C/ 1000mA / 30VDC)

User Capacity / Floors Number	16,000 Users/64 Floors (Default value)；32,000 Users/32 Floors；65,000 Users/16 Floors
Event Log	32,000

Power Voltage		12-24VDC
Flash memory		Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off)
RTC		RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment)
CPU		ARM Cortex M3 (32 bits)
Power Consumption		<5W
Indicator	LED	6 LED (Green/ Red)
Indicator	Buzzer	1
TAMPER		Limit switch (1 Form C/ 1000mA / 30VDC)
LCD Panel		128*64 (4 line messages, 16 Characters each line)
Housing Material		ABS (Fire-proof level: 94V0)
Color		Gray
Keypad		Electroplated Rubber Keyboard
Dimension (mm)		140(H)X92(W)X40(D)
Net Weight(g)		approx. 430
Ingress Protection		IP56
Environment	Operating Temperature	-20℃ ~ +70℃
	Storage Temperature	-40℃ to +75℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~95% (non-condensing)
