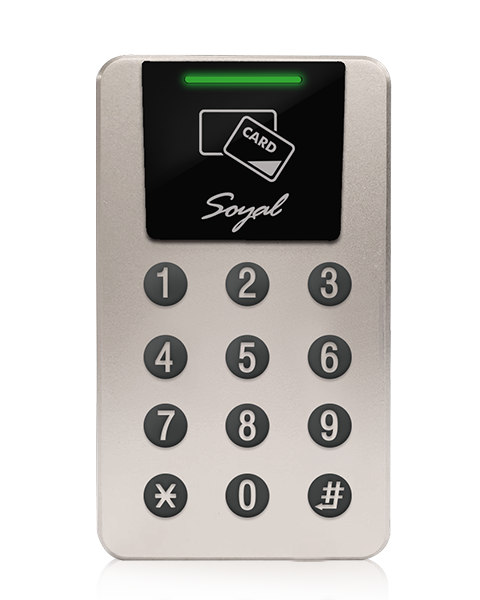

Soyal AR-363-E Union body Metal Housing Dual band RFID IP Controller with Piezo Touch Key

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

描述

Soyal AR-363-E Union body Metal Housing Dual band RFID IP Controller with Piezo Touch Key 是Soyal門禁控制器。香港防盜為安裝商及經銷商。門數及擴展以原廠規格為準，並預留消防解鎖及 UPS。此類產品並非牆面拍卡讀頭。

相關方案：Soyal 門禁安裝、門禁系統、貨倉方案。選型可先參閱以上方案頁；原廠規格見下方。

AR-363-E

Union body Metal Housing Dual band RFID IP Controller with Piezo Touch Key。

		S (Dual Band)
Frequency		125kHz: ISO18000-2: EM4001 and EM4095 compatible 13.56MHz: ISO14443 /ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) /ISO15693 / Felica / iCASH Card
UID Bits		24~64 Bit (Adjustable)
RF Reading Range		1-3 cm

	S (Dual Band)
RFID Crypto	CC Certification: AES Crypto comply with EAL5+
Host	RS-485 (9600 bps) TCP/IP (Optional By Order) SSC (Soyal Security Communication)
Serial	TTL UART (4800~115200 bps) X2 (half-duplex) *Expandable serial port
Wiegand Input	Wiegand 26~64
Wiegand Output	Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal

	Main Controller	Wiegand Output Port
DI	Egress X1 Door Status X1	Egress X1 Door Status X1
Door Lock Output	Door Lock Relay X1	Open Collector X1
Alarm Output	Open Collector X1
Wiegand Port	—	Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1
Open Collect Output	Arming Output X1 Security Trigger Signal X1 Duress Output X1
Tamper	Limit switch (1 Form C/ 1000mA / 30VDC)

User Capacity / Floors Number	16,000 Users/64 Floors (Default value)；32,000 Users/32 Floors；65,000 Users/16 Floors
Event Log	32,000

Power Voltage		12-24VDC
Flash memory		Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off)
RTC		RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment)
CPU		ARM Cortex M3 (32 bits)
Power Consumption		<5W
Indicator	LED	Bi-Color LED (Green/Red)
Indicator	Buzzer	1
TAMPER		Limit switch (1 Form C/ 1000mA / 30VDC)
Housing Material		Metal Housing (Fire-proof level: 94V0)
Color		Champagne Gold / Space Black
Keypad		Push button style keypad
Dimension (mm)		118(H)X68(W)X30(D)
Net Weight(g)		approx. 300
Ingress Protection		IP66
Environment	Operating Temperature	-20℃ ~ +70℃
	Storage Temperature	-40℃ to +75℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~95% (non-condensing)
