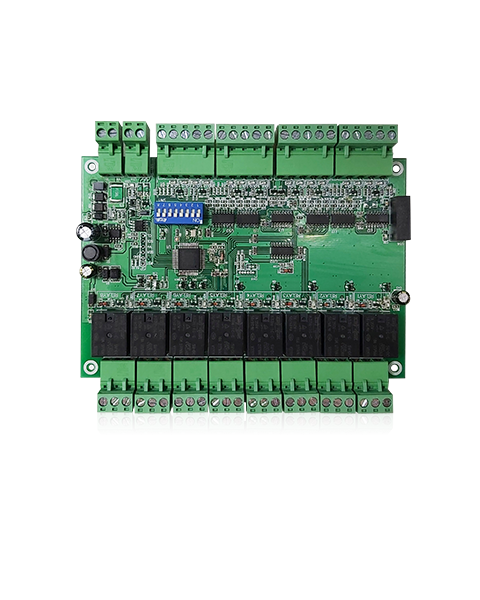

AR-401-IO-1608R
16 Optically Isolated Input/8 Type C Relay Output I/O Module
AR-401-IO-1608R 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- Support for a high-security centralized access control system with separation of reading and control.
- Supports Modbus and SOYAL communication protocols, suitable for various IoT integration applications.
- Built-in input optocoupler protection function, effectively achieving electrical isolation, high voltage protection, lightning resistance, and avoiding noise interference.
- Versatile application modes: standard I/O, multi-door interlock, people counting, crowd control, etc., easily meeting various application scenarios.
- Compatible with Modular DIN Rail Mounting Base (AR-701B)
規格
Interface
| Protocol | Modbus RTU, Soyal | ||||
| Interface | Ethernet | — | |||
| PoE | — | ||||
| Serial port | RS485 X1,Baud Rate 9600 bps – 19200 bps(N,8,1) RS485 X1 | ||||
| I/O | Input | Digital Input | — | ||
| Isolated Input | X 16 | ||||
| Fire Input | — | ||||
| Output | MosFET Output | — | |||
| Relay Output | X 8(5A/125VAC,5A/30VDC) | ||||
| Infrared | — | ||||
| Independent Power Supply |
— | ||||
| Wiegand port | — | ||||
| Watchdog | Yes | ||||
| Power Voltage | 12 VDC | ||||
| Power Consumption | <4W | ||||
| Surge Suppression | 400W peak power dissipation. Clamping time < 1 picosecond (theoretical) Power: bi-directional avalanche breakdown device. RS485 bi-directional avalanche breakdown device. |
||||
| Power Fuse | Power & RS485 both with PTC Protector | ||||
| Dimension (mm) | PCB | 100(H)x147(W)x20(D) | |||
| Panel Mounting Base |
102(H)x175(W)x30(D) | ||||
| Metal Box | 180(H)x231(W)x62(D) | ||||
| Net weight (g) | PCB | approx.100 | |||
| Panel Mounting Base |
approx.182 | ||||
| Metal Box | approx.1760 | ||||
| Operating Temperature | -20℃ ~ +70℃ | ||||
Certifications
| LVD | EN 62368-1 | ||
| EMC | EN 55032 | ||
| EMS | IEC 61000-4-2 ESD: Contact 6kV; Air: 8kV IEC 61000-4-3 RS: 80MHz to 2.7GHz: 10V/m |
||
