描述

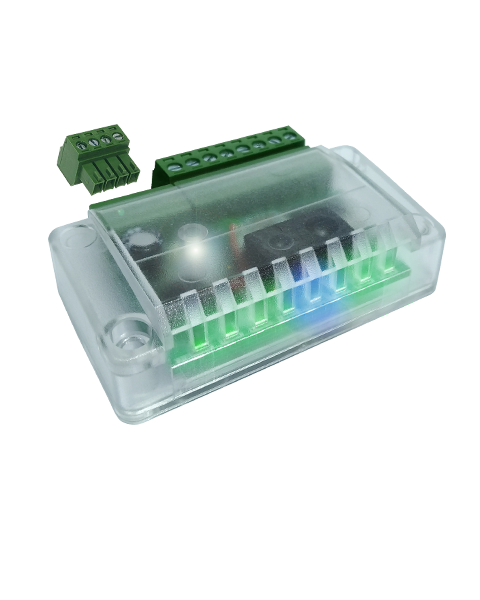

AR-403-IO-0202M-IR_Modbus
2 Input / 2 MOSFET Output I/O Module (Including IR Sensor)
AR-403-IO-0202M-IR_Modbus 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- Universal I/O module available in four different modes such as standard (Modbus/SOYAL), Mailbox, multiple-delay function, Rear Detection, Front Detection.
- For 701ServerSQL software [LAN] model selection, please refer to Features ↓
規格
Interface
| Item NO. | AR-403-IO-0202M-IR | AR-403-IO-0404M |
| Ethernet | — | |
| Serial port | RS485 X1 | |
| Baud Rate | 9600 bps (N,8,1) | |
| Inputs | 2 Digital Input (with 1 IR) |
4 Digital Input |
| Outputs | 2 Digital Input (with 1 IR) |
4 Digital Output (MosFET) |
| WG port | — | |
Specifications
| Item NO. | AR-403-IO-0202M-IR | AR-403-IO-0404M |
| PoE | — | |
| Protocol | Modbus, Soyal | |
| Serial Buffer | — | |
| LED Indicator | Power: Tx/Rx, D.O./D.I | |
| Watchdog Function | YES | |
| Bulit-in linkage function | YES | |
| Surge Suppression | 400W peak power dissipation. Clamping time < 1 picosecond (theoretical) Power: bi-directional avalanche breakdown device. RS485 bi-directional avalanche breakdown device. |
|
| Fuses | Power & RS485 both with PTC Protector | |
| Isolation | — | |
| Power Supply | 9-24 VDC | |
| Power Consumption | <1W | |
| Dimension(mm) | 60(H)x43(W)x20(D) | |
| Net Weight (g) | approx. 31 | |
| Network/Device setting | 701Server, 701Client, Commview.exe | |
| OS Supported | Windows 7/8/10, Win Server 2008/2012/2016 | |
| Operating Temperature | -20℃ ~ +70℃ | |
Certifications
| LVD | EN 62368-1 | ||
| EMC | EN 55032 | ||
| EMS | IEC 61000-4-2 ESD: Contact 6kV; Air: 8kV IEC 61000-4-3 RS: 80MHz to 2.7GHz: 10V/m |
||
