描述

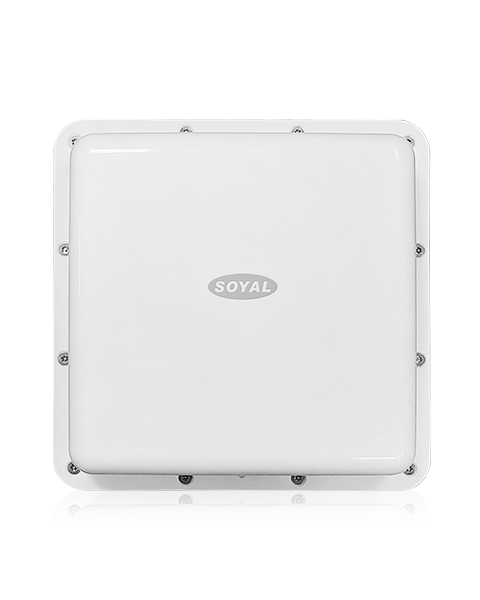

AR-661UG
UHF Proximity Reader
AR-661UG 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- AR-661-UG is designed for outdoor environments with long reading range up to 6 meters. Commonly use for parking lot and any other long distance application in term of performance and price wise.
規格
RFID Long Range Reader AR-661UG
| Frequency | 902- 928 MHz /865-868 MHz | ||
| Standard | ISO18000-6C | ||
| Supported Tag | H3/H4/H9/U9 chip tags can be used Vehicle tags and Hand-held tags |
||
| Communication Interface | Wiegand,RS485 | ||
| Baud Rate | 9600 bps (N, 8, 1) | ||
| Reading Range | 4-6 Meters (The power consumption is adjustable from 10%~100%, the reading range will increase/decrease by different power consumption.) | ||
| Read/Write | Read only | ||
| Watchdog function | Yes | ||
| Power Consumption | <18W | ||
| Power Supply | 12VDC | ||
| Indicator | 1 LED | ||
| Housing Material / Color | ABS/ Ivory | ||
| Dimension (mm) | 228(L)x228(W)x52(H) | ||
| Net Weight(g) | approx. 940 | ||
| Temperature | -20°C to +65°C | ||
