描述

Soyal AR-723-H Tiny Proximity Access Controller 是Soyal門禁控制器。香港防盜為安裝商及經銷商。門數及擴展以原廠規格為準，並預留消防解鎖及 UPS。此類產品並非牆面拍卡讀頭。

相關方案：Soyal 門禁安裝、門禁系統、貨倉方案。選型可先參閱以上方案頁；原廠規格見下方。

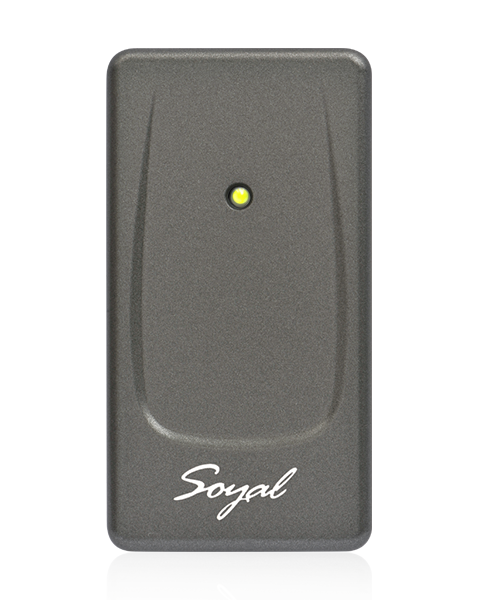

AR-723-H

Tiny Proximity Access Controller。

	B (125Khz)	D (13.56Mhz)
Frequency	ISO18000-2: EM4001 and EM4095 compatible	ISO 14443 /ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) , iCASH Card
UID Bits	24~32 (Adjustable)
RF Reading Range	5-12 cm	2-8 cm

	B (125Khz)	D (13.56Mhz)
RFID Crypto	—	CC Certification: 3DES Crypto comply with EAL4+
Host	RS-485 (9600 bps)	RS-485 (9600 bps) SSC (Soyal Security Communication)
Serial	UART PORT (Only Output)
Wiegand Input	Wiegand 24~34 (support external Wiegand Keyboard)
Wiegand Output	No

	Main Controller	Wiegand Output Port
DI	Egress X1 Door Status X1	Egress X1 Door Status X1
Door Lock Output	Door Lock Relay X1	Open Collector X1
Alarm Output	Relay X1
Wiegand Port	—	Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1
Open Collect Output	Arming Output X1 Security Trigger Signal X1 Duress Output X1
Tamper	Limit switch (1 Form C/ 1000mA / 30VDC)

User Capacity / Floors Number	1,024 Users / 32 Floors
Event Log	1100

Power Voltage		12-24VDC
Flash memory		Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off)
RTC		RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment)
CPU		ARM Cortex M3 (32 bits)
Power Consumption		<3W
Indicator	LED	Bi-Color LED (Green/Red)
Indicator	Buzzer	1
TAMPER		No
Housing Material		ABS (Fire-proof level: 94V0)
Color		Black, Gray, Silver
Keypad		No
Dimension (mm)		81(H)X43(W)X18(D)
Net Weight(g)		approx. 40
Ingress Protection		IP56 / IP66(Epoxy)
Environment	Operating Temperature	-20℃ ~ +70℃
	Storage Temperature	-40℃ to +75℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~95% (non-condensing)
