Soyal AR-727-CM-485 [Dual RS485 Channels]Serial-to-Ethernet Server&Modbus RTU Over TCP

查詢價錢

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

Soyal AR-727-CM-485 [Dual RS485 Channels]Serial-to-Ethernet Server&Modbus RTU Over TCP 是Soyal門禁卡機／獨立機。香港防盜為安裝商及經銷商，負責牆面開孔、走線、對接電鎖／出門掣。卡種及讀距以原廠規格為準。

相關方案：Soyal 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

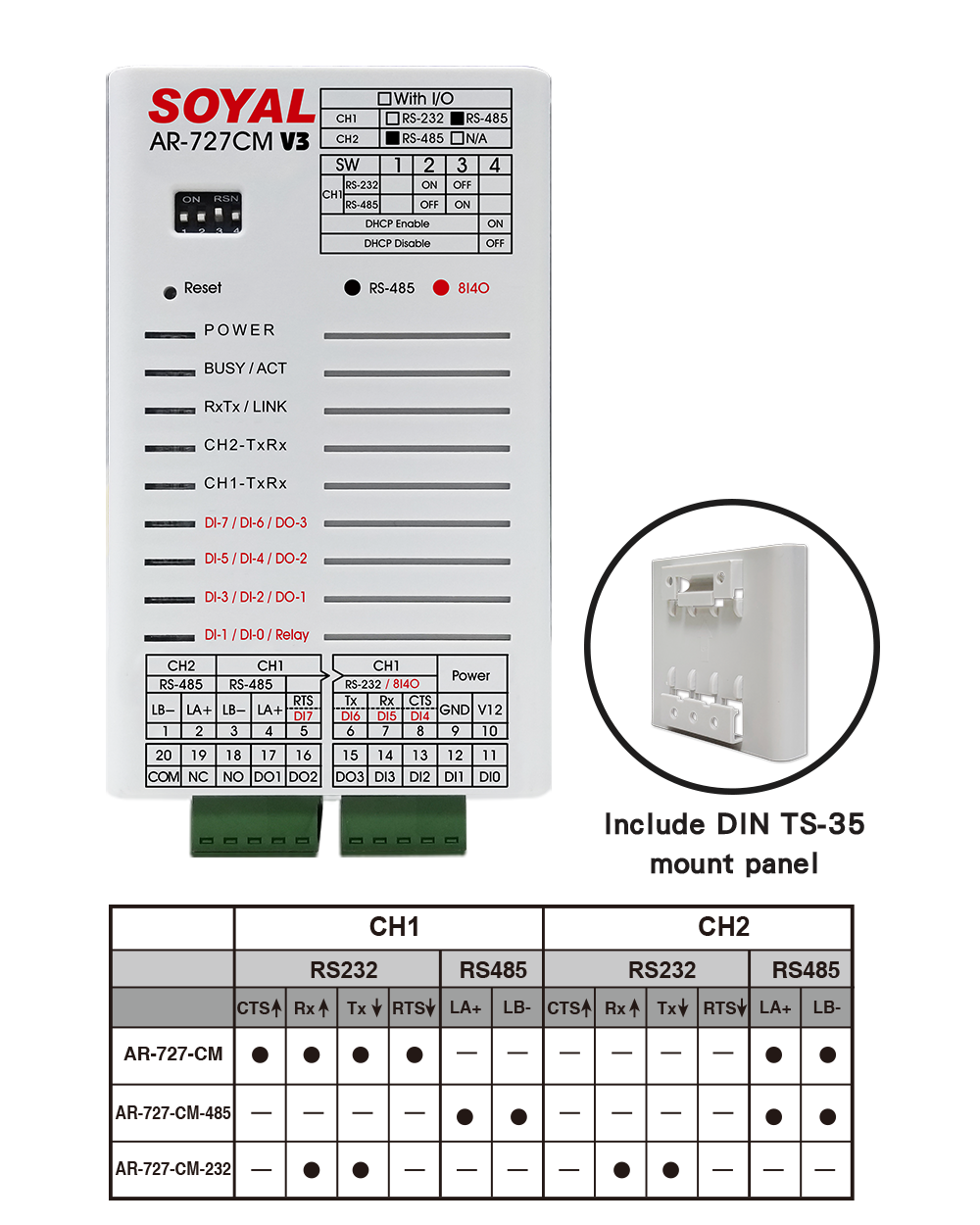

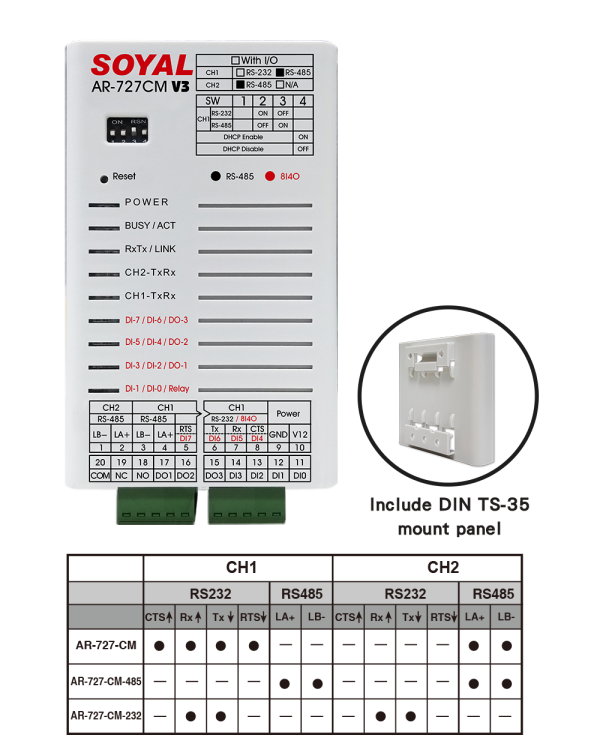

AR-727-CM-485

[Dual RS485 Channels]Serial-to-Ethernet Server&Modbus RTU Over TCP。

Interface	10/100 Mbps BaseT Ethernet <–> RS485
Baud Rate	4800 bps – 115200 bps
Protocol	ARP, IP,TCP Client,UDP, ICMP,HTTP,DHCP,NetBIOS
Serial Buffer	1K each channel
LED Indicator	9 LEDs for Power, Communication
Watchdog Function	Yes
Active Distance	300m~1200m (RS485)
Surge Suppression	Power: 30 Volt, bi-directional avalanche breakdown device. RS485 6.5 Volt, bi-directionalavalanche breakdown device. 400W peak power dissipation. Clamping time < 1 picosecond(theoretical)
Fuses	Power PTC 150mA , RS485 PTC 30mA
Isolation	Optical 5 kV
Power Supply	9-24 VDC
Power Consumption	<2W
Dimension (mm)	106.5(H)x66(W)x27.7(D)
Net Weight (g)	approx. 90
OS Supported	Windows 7/8/10, Win Server 2008/2012/2016
Network/Device setting	HTTP Web browser, UDP Updater change IP address
Operating Temperature	-20℃ ~ +70℃
