描述
Soyal AR-727-CM-IO-0802R TCP/IP to Wiegand 26-80bits 是Soyal門禁卡機／獨立機。香港防盜為安裝商及經銷商，負責牆面開孔、走線、對接電鎖／出門掣。卡種及讀距以原廠規格為準。
相關方案：Soyal 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

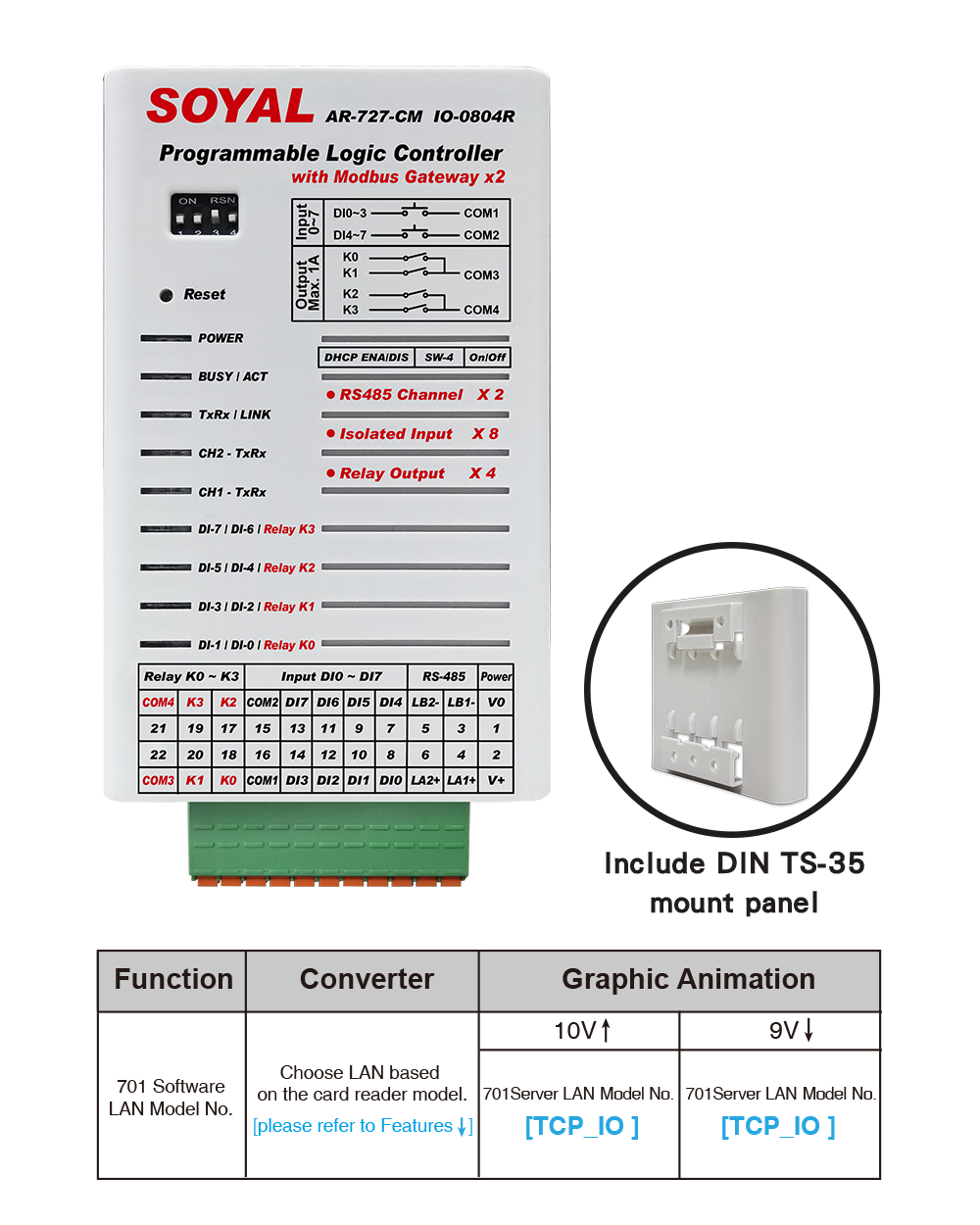

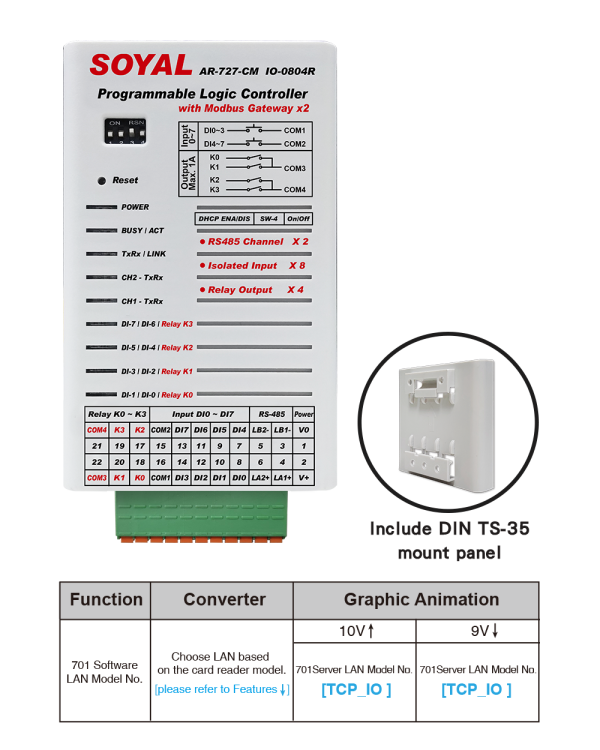

AR-727-CM-IO-0802R
TCP/IP to Wiegand 26-80bits。
| Ethernet | 10/100 Mbps Base T Ethernet <–> RS485 |
| Serial port | RS485 X2 Baud Rate 2400 bps – 115200 bps (By order: RS232, RS232+RS485) Auto detect Support TCP/Sever, TCP/Client, UDP Mode |
| Baud Rate | 4800 bps -115200 bps |
| Inputs | 8 Digital Input |
| Outputs | 2 Digital Output _Relay Output (Form C) (1A/30VAC, 1A/30VDC) |
| WG port | DO-1 & DO-2 Output WG 128bits maximum, supporting user defined format,auto add even parity bit and odd parity bit and various format, etc. |
| PoE | — | ||
| Protocol | ModBus-TCP, ARP, IP, TCP Client,UDP, ICMP, HTTP, DHCP, NetBIOS | ||
| Serial Buffer | 1K each channel | ||
| LED Indicator | Power: Tx/Rx, D.O./D.I | ||
| Watchdog Function | YES | ||
| Active Distance | 300m~1200m (RS485) | ||
| Bulit-in linkage function | YES | ||
| Surge Suppression | 400W peak power dissipation. Clamping time < 1 picosecond (theoretical) Power: bi-directional avalanche breakdown device. RS485 bi-directional avalanche breakdown device. |
||
| Fuses | Power & RS485 both with PTC Protector | ||
| Isolation | DI Opto-isolation | ||
| Power Supply | 12-24 VDC | ||
| Power Consumption | <2W | ||
| Dimension(mm) | 106.5(H)x66(W)x27.7(D) | ||
| Net Weight (g) | approx. 120 | ||
| Network/Device setting | 701Server, 701Client, HTTP Web page for any browser | ||
| OS Supported | Windows 7/8/10, Win Server 2008/2012/2016 | ||
| Operating Temperature | -20℃ ~ +70℃ | ||
| LVD | EN 62368-1 | ||
| EMC | EN 55032 | ||
| EMS | IEC 61000-4-2 ESD: Contact 6kV; Air: 8kV IEC 61000-4-3 RS: 80MHz to 2.7GHz: 10V/m |
||
數字以原廠規格書為準。
卡機安裝、調試、保養及維修
香港防盜（持牌主體傑成系統有限公司 KNS SYSTEM LTD）為Soyal門禁卡機的安裝商及經銷商，保安牌照 1507、電業承辦商 029394。工作包括牆面開孔、走線、對接電鎖／出門掣、卡種及權限。高貨值場地不應只用易複製卡。
查詢 2122-9527，WhatsApp 9439-8568。保養見保安系統保養。系統選型見門禁系統。Soyal安裝見Soyal 門禁安裝。
