描述

Soyal AR-816RB-V DC Energy-Saving Latching Power Relay (with 2 Form A Contacts) 是Soyal門禁卡機／獨立機。香港防盜為安裝商及經銷商，負責牆面開孔、走線、對接電鎖／出門掣。卡種及讀距以原廠規格為準。

相關方案：Soyal 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

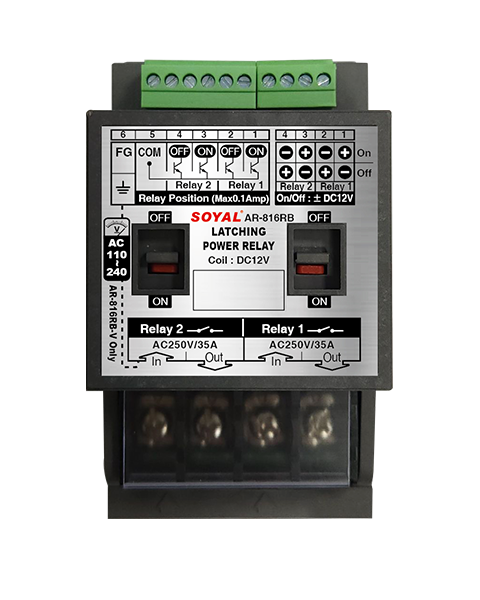

AR-816RB-V

DC Energy-Saving Latching Power Relay (with 2 Form A Contacts)。

Model No.		Power Monitoring Type(AR-816RB-V)	Contact Monitoring Type(AR-816RB-C)
Output Contacts		X 2 ( 35A / 250VAC Single-Pole Output )
Contact Rated Capacity		250VAC / 35Amp
Control Contacts		X 2 (Dual DC12V Forward and Reverse Control )
Status Output	ON	The AC IN contact must have a voltage of 110 to 240V for the status to be ON.	ON
Status Output	OFF	OFF	OFF
Control Power		DC12V / 200mA
Control Method		DC12V Forward and Reverse Control
Power Consumption		~0
Service Life		500,000 times
Operating Temperature		-20℃ ~ +70℃
Operating Humidity		0%~90% (non-condensing)
Dimension (mm)		102(H)x55(W)x47(D)
Net Weight(g)		approx. 183g
