描述
Soyal AR-MS-101-A Door Contacts 是Soyal門禁卡機／獨立機。香港防盜為安裝商及經銷商，負責牆面開孔、走線、對接電鎖／出門掣。卡種及讀距以原廠規格為準。
相關方案：Soyal 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

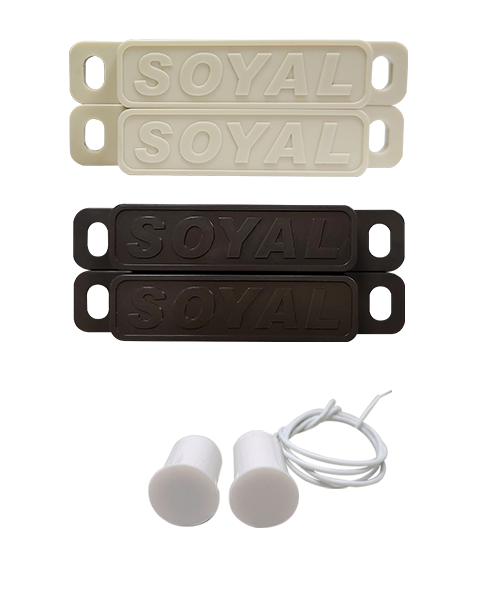

AR-MS-101-A
Door Contacts。
| Model No. | AR-MS-101-A | AR-MS-101-C | AR-130/131NO-Reed | ||
| Contact | 2 PIN | 3 PIN | 2 PIN | ||
|
Contact Type |
N.O. (Normally Open – A Type – No Magnetic Field Interruption) | N.O. + N.C. (C Type) | N.O. (Normally Open – A Type – No Magnetic Field Interruption) | ||
| Sensing Distance | 15MM – 25MM | ||||
| Application | This product is for signal use only and cannot switch power directly. To switch power, an external relay board is required. | ||||
| Switching Voltage/Current |
24VDC / 30mA 12VDC / 50mA |
||||
| Ingress Protection | Supports IP66 Rating | ||||
| Housing Material | ABS | ||||
| Color | Beige / Brown | White | |||
| Dimension (mm) | 12(H)X63.6(W )X14.5(D) | Magnet Diameter: 12x14mm Switch Diameter: 12x18mm |
|||
| Operating Temperature | -20℃ ~ +70℃ | ||||
| Pull-in | 10~50 AT | |||
| Drop-out | 5 AT min | |||
| Contact resistance | 100 mΩ max | |||
| Breakdown voltage | 250 VDC min | |||
數字以原廠規格書為準。
卡機安裝、調試、保養及維修
香港防盜（持牌主體傑成系統有限公司 KNS SYSTEM LTD）為Soyal門禁卡機的安裝商及經銷商，保安牌照 1507、電業承辦商 029394。工作包括牆面開孔、走線、對接電鎖／出門掣、卡種及權限。高貨值場地不應只用易複製卡。
查詢 2122-9527，WhatsApp 9439-8568。保養見保安系統保養。系統選型見門禁系統。Soyal安裝見Soyal 門禁安裝。
