描述

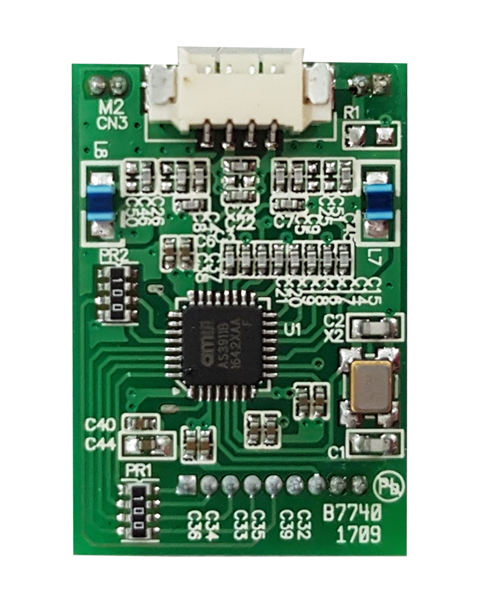

RF13.56 Module-V2
Mifare Module
RF13.56 Module-V2 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- Mifare model is a low-voltage, low-power consumption RFID module that can also totally support DESFire EV1 3DES, and AES authentication algorithm. It can directly insert into the main board of SOYAL E/HV5 series controller to work without more parts need to be added, it is really convenient and economical.
規格
RF13.56 Module-V2 Specifications
| Frequency | SPI |
| Power Supply | 3.3VDC |
| Power consumption | <0.1W |
| Current | — |
| Protocol | ISO 18092 ISO14443 A/B |
| Output Contact | — |
| Dimension (mm) | 30(H)X20(W)X10(D) |
| Net Weight (g) | approx.14 |
| Temperature | -20°C ~ +70°C |
