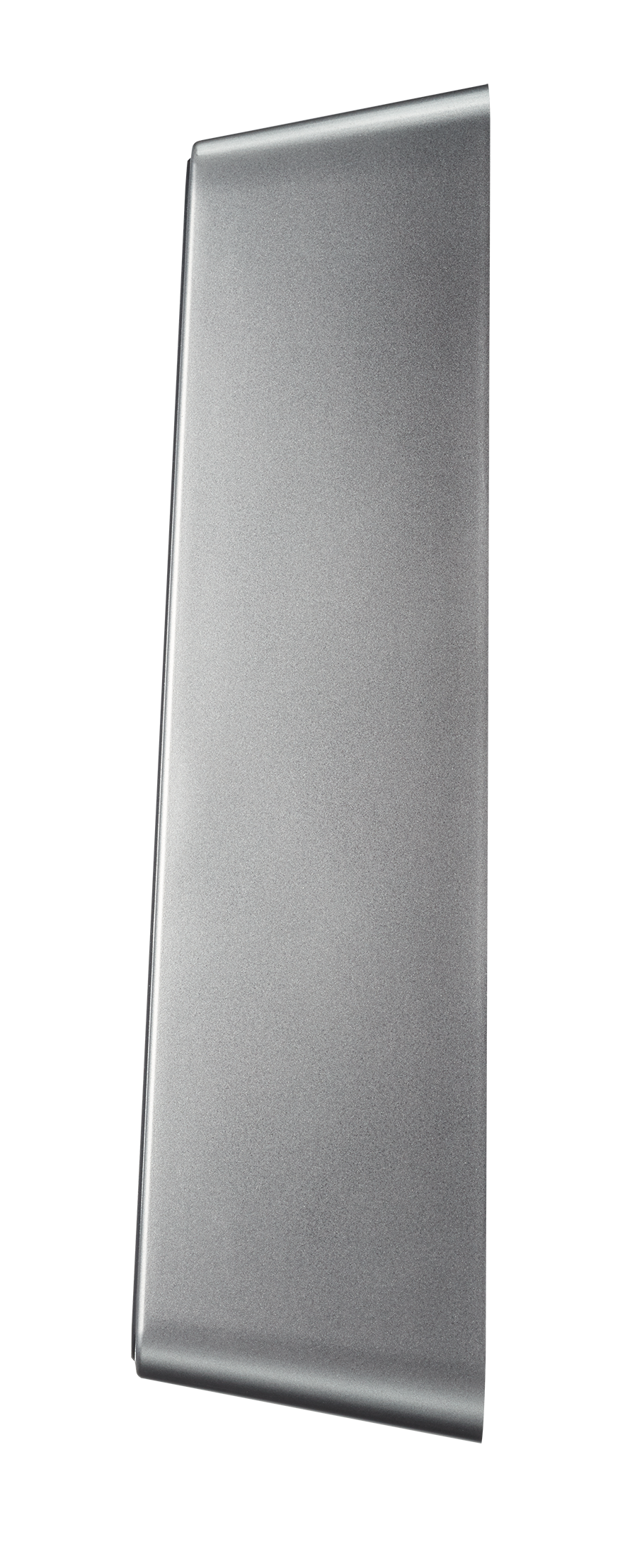

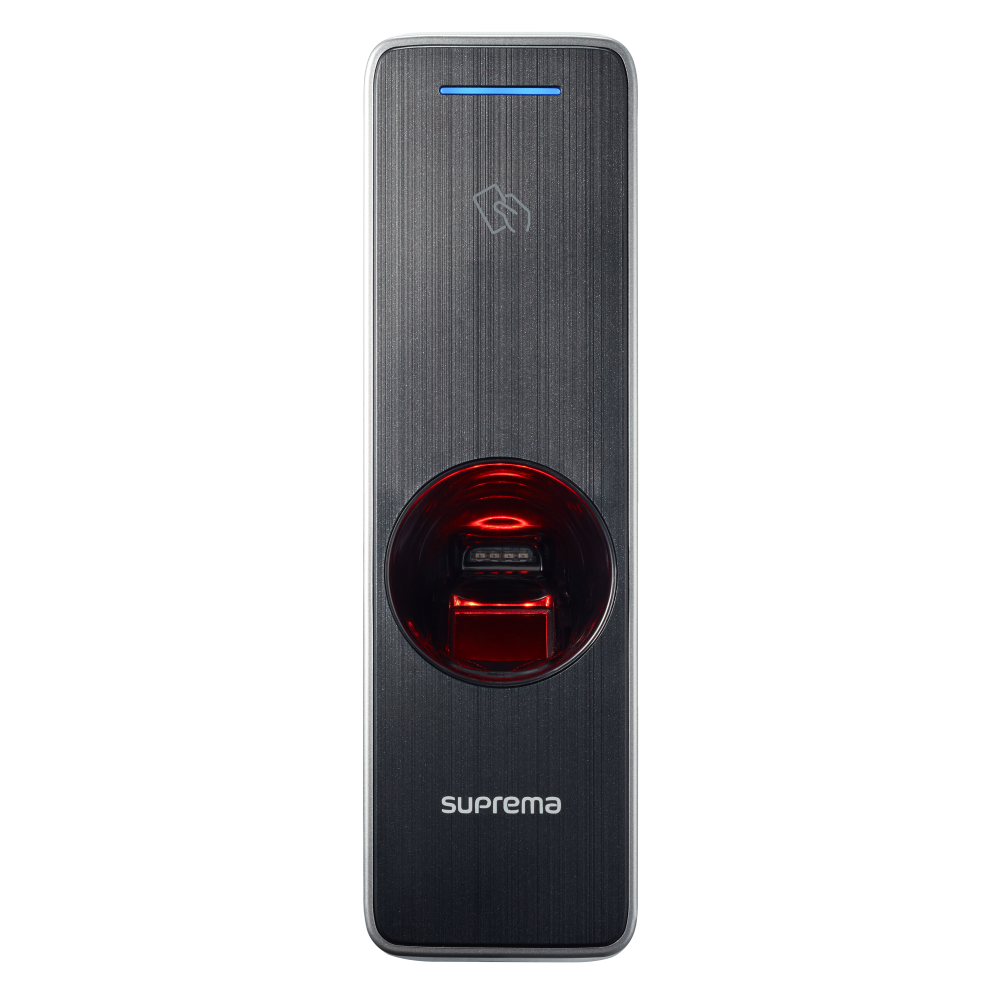

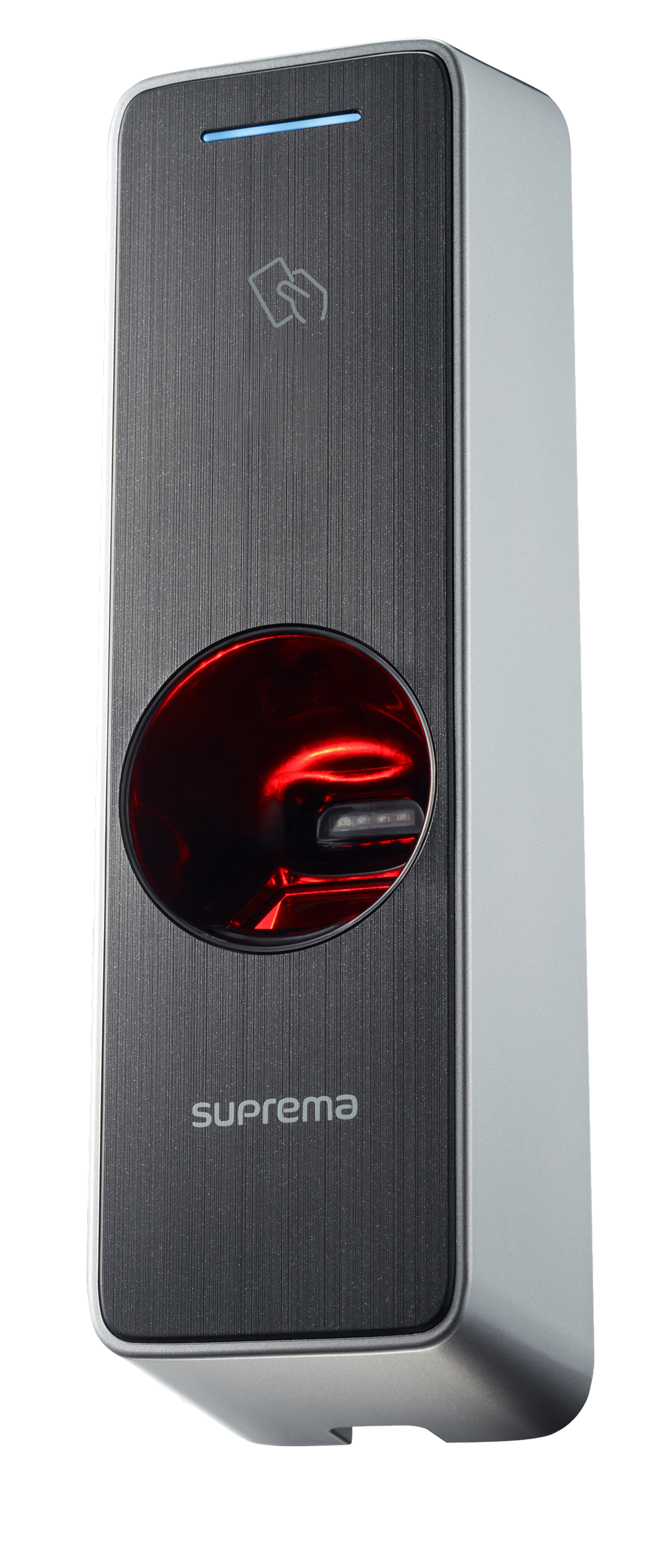

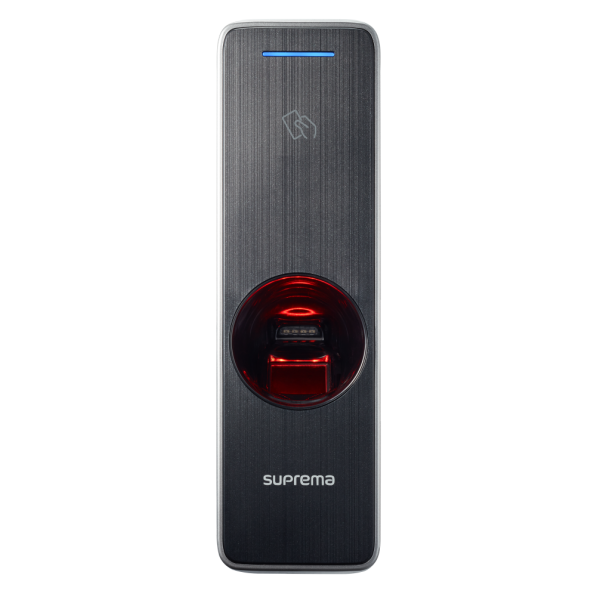

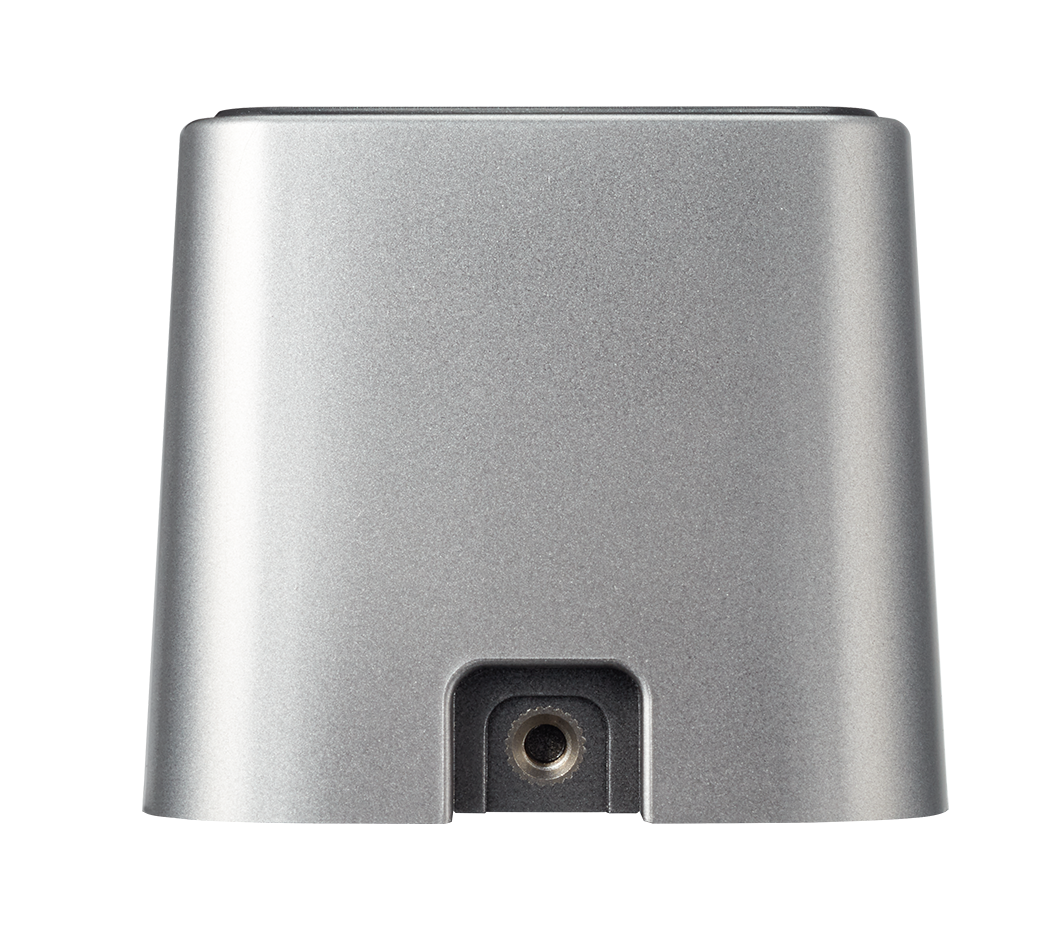

Suprema BioEntry W2 Outdoor IP Fingerprint Device
(Model:BEW2-OHPB, BEW2-ODPB, BEW2-OAPB)
Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.
Specifications
Credential
- Biometric: Fingerprint
- RF Option:
• BEW2-OHPB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,
DESFire, DESFire EV1/EV2/EV3*, FeliCa
• BEW2-ODPB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire,
DESFire EV1/EV2/EV3*, FeliCa
• BEW2-OAPB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,
DESFire, DESFire EV1/EV2/EV3*, FeliCa, iCLASS SE/SR/Seos - RF read range**: MIFARE/DESFire/EM/HID Prox/iCLASS : 50 mm, FeliCa: 30 mm
- Mobile: NFC, BLE
General
- CPU: 1.2 GHz Quad Core
- Memory: 2GB Flash + 256 MB RAM
- Crypto chip: Supported
- LED: Multi-color
- Sound: Multi-tone Buzzer
- Operating temperature: -20°C–50°C
- Storage temperature: -40°C–70°C
- Operating humidity: 0 %–80 %, non-condensing
- Storage humidity: 0 %–90 %, non-condensing
- Dimension (W x H x D): 50 mm x 172 mm x 43.4 mm (Bottom) / 38.1 mm (Top)
- Weight:
• Device: 251 g
• Bracket (Including washer and bolt): 43 g - IP rating: IP67
- IK rating: IK09
- Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, UL294***
Fingerprint
- Image dimension: 272 x 320 pixels
- Image bit depth: 8bit, 256 grayscale
- Resolution: 500 dpi
- Template: SUPREMA / ISO 19794-2 / ANSI 378
- Extractor / Matcher: MINEX certified and compliant
- Live Fingerprint Detection: Supported
Capacity
- Max. User: 500,000****
- Max. Credential (1:N): Fingerprint: 100,000
- Max. Credential (1:1):
• Fingerprint: 500,000
• Card: 500,000 - Max. Text Log: 1,000,000
Interface
- Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
- RS-485: 1ch Master / Slave (Selectable)
- Wiegand: 1ch Input / Output (Selectable)
- TTL input: 2 ch Inputs
- Relay: 1 Relay
- PoE: Supported (Power over Ethernet 44 VDC Max 12 W, IEEE 802.3af)
- Tamper: Supported
Electrical
- Power:
• Voltage: 12 Vdc
• Current: Max. 0.5 A - Switch input VIH:
• Min.: 3 V
• Max.: 5 V - Switch input VIL: Max.: 1 V
- Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
- Wiegand output VOH: More than 4.8 V
- Wiegand output VOL: Less than 0.2 V
- Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
- Relay:
2 A @ 30 VDC Resistive load
1 A @ 30 VDC Inductive load
* DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry W2.
** RF read range will vary depending on installation environment.
*** UL Safety Standard – Access Control Device Destructive attack – Level 2 / Line security – Level 2 / Endurance – Level 1 / Standby power- Level 1
**** The number of users registered without any credential data.
