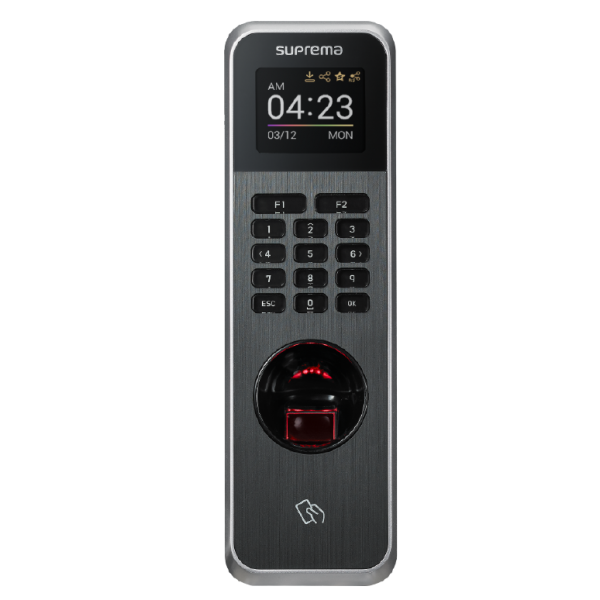

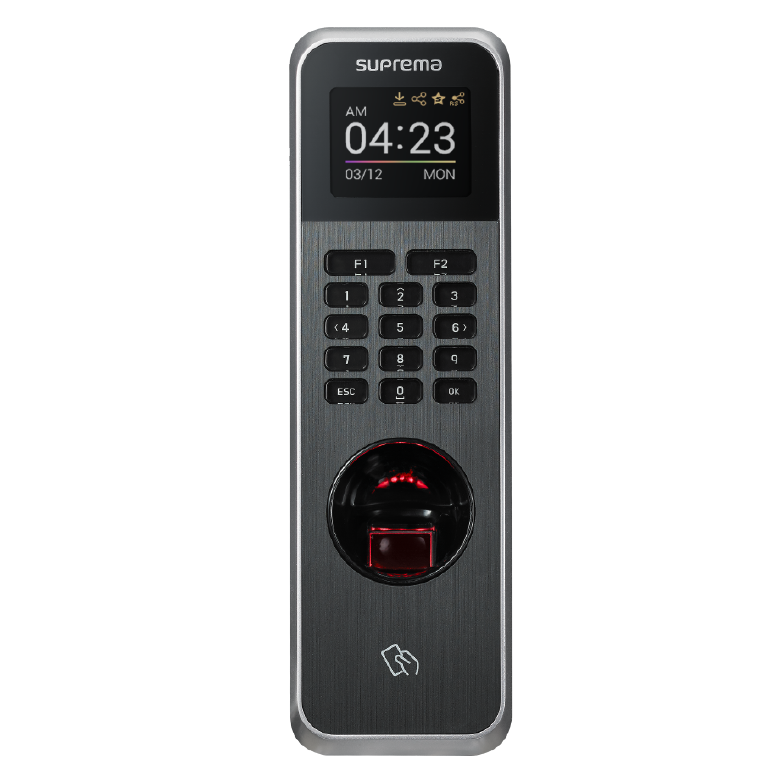

Suprema BioLite N2 Outdoot IP Fingerprint Terminal

描述

Suprema BioLite N2 Outdoot IP Fingerprint Terminal

(Model:BLN2-ODB, BLN2-OAB, BLN2-PAB)

Suprema BioLite N2 is a Suprema’s 2nd generation outdoor fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s latest biometric technology and security platform. BioLite N2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled with world’s best fingerprint sensor. Packed in a rugged IP67 housing, BioLite N2 added flexibility in system design with multi-class RFID reading technology.



Specifications



Credential

• Biometric: Fingerprint
• RF Option
  • BLN2-ODB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire,
  DESFire EV1/EV2/EV3¹⁾, FeliCa, NFC & 2.4GHz BLE
  • BLN2-OAB, BLN2-PAB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE
• RF read range²⁾ : MIFARE/DESFire: 50 mm, EM/FeliCa: 30 mm
• Mobile: NFC, BLE



General

• CPU: 1.2 GHz
• Memory: 4 GB Flash + 64 Mb RAM
• Crypto chip: Supported
• LCD type: 1.77” color TFT LCD
• LCD resolution: 160 x 128 pixels
• Sound: 16-bit
• Operating temperature
  • BLN2-ODB, BLN2-OAB: -20 °C to 50 °C
  • BLN2-PAB: -10 °C to 50 °C
• Storage temperature
  • BLN2-ODB, BLN2-OAB: -40 °C to 70 °C
  • BLN2-PAB: -20 °C to 60 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Dimension (W x H x D): 58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)
• Weight
  • Device: 255 g
  • Bracket (Including washer and bolt): 57 g
• IP rating: IP67
• Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE



Fingerprint

• Image dimension: 272 x 320 pixels
• Image bit depth: 8 bits, 256 gray scale
• Resolution: 500 dpi
• Template: SUPREMA / ISO19794-2 / ANSI-378
• Extractor / Matcher: MINEX certified and compliant
• Live Fingerprint Detection: Supported (SW-based)



Capacity

• Max. User: 10,000
• Max. Credential (1:N): Fingerprint: 10,000
• Max. Credential (1:1)
  • Fingerprint: 10,000
  • Card: 10,000
  • PIN: 10,000
• Max. Text Log: 1,000,000



Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Master / Slave (Selectable)
• Wiegand: 1 ch Input / Output (Selectable)
• TTL input: 2 ch Inputs
• Relay: 1 Relay
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.4 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioLite N2.
2) RF read range will vary depending on installation environment.
