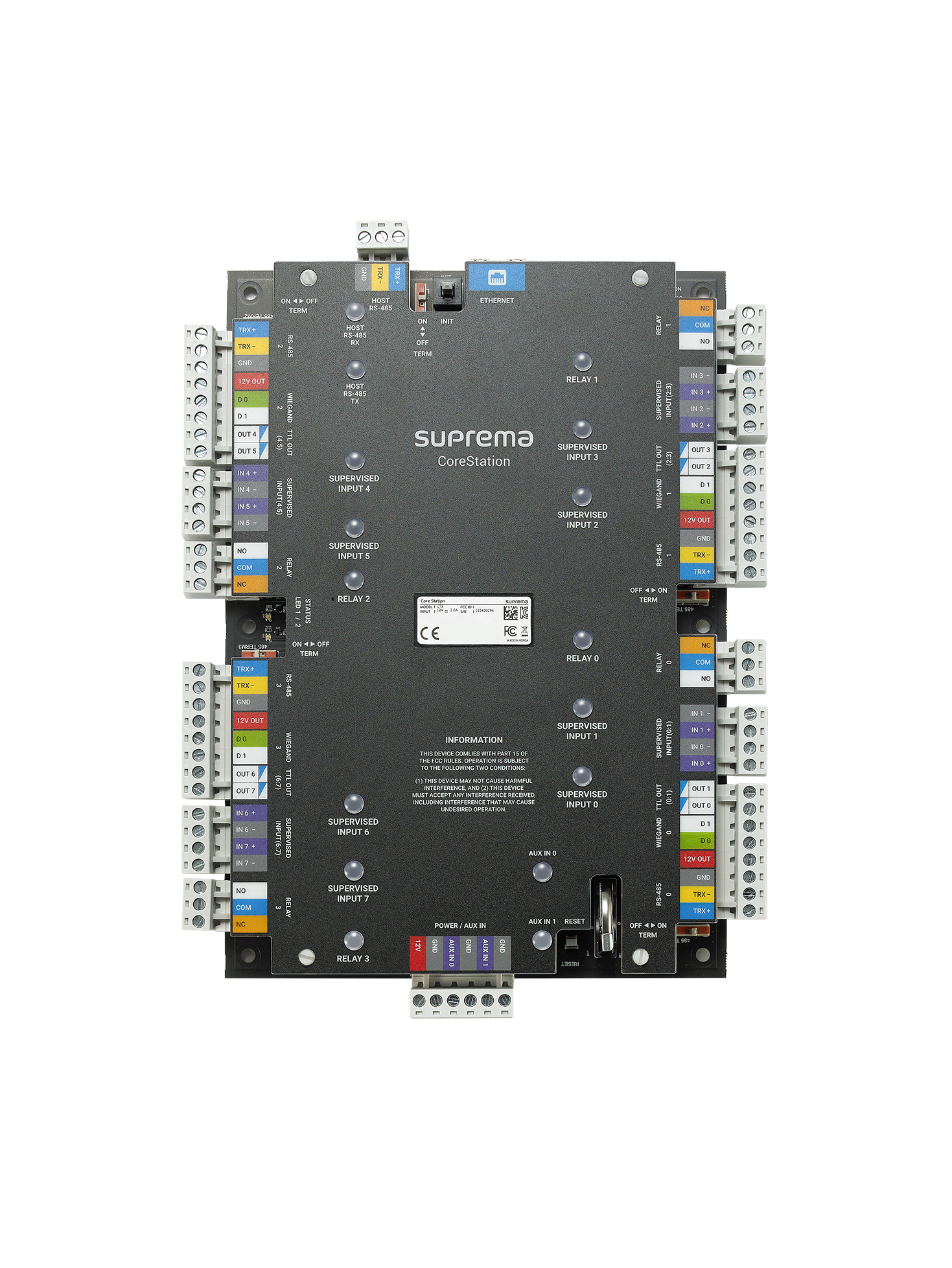

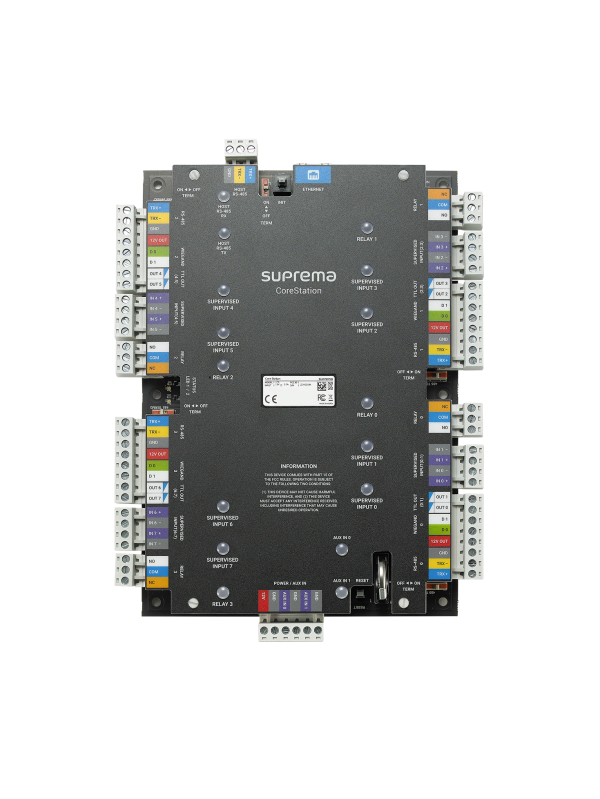

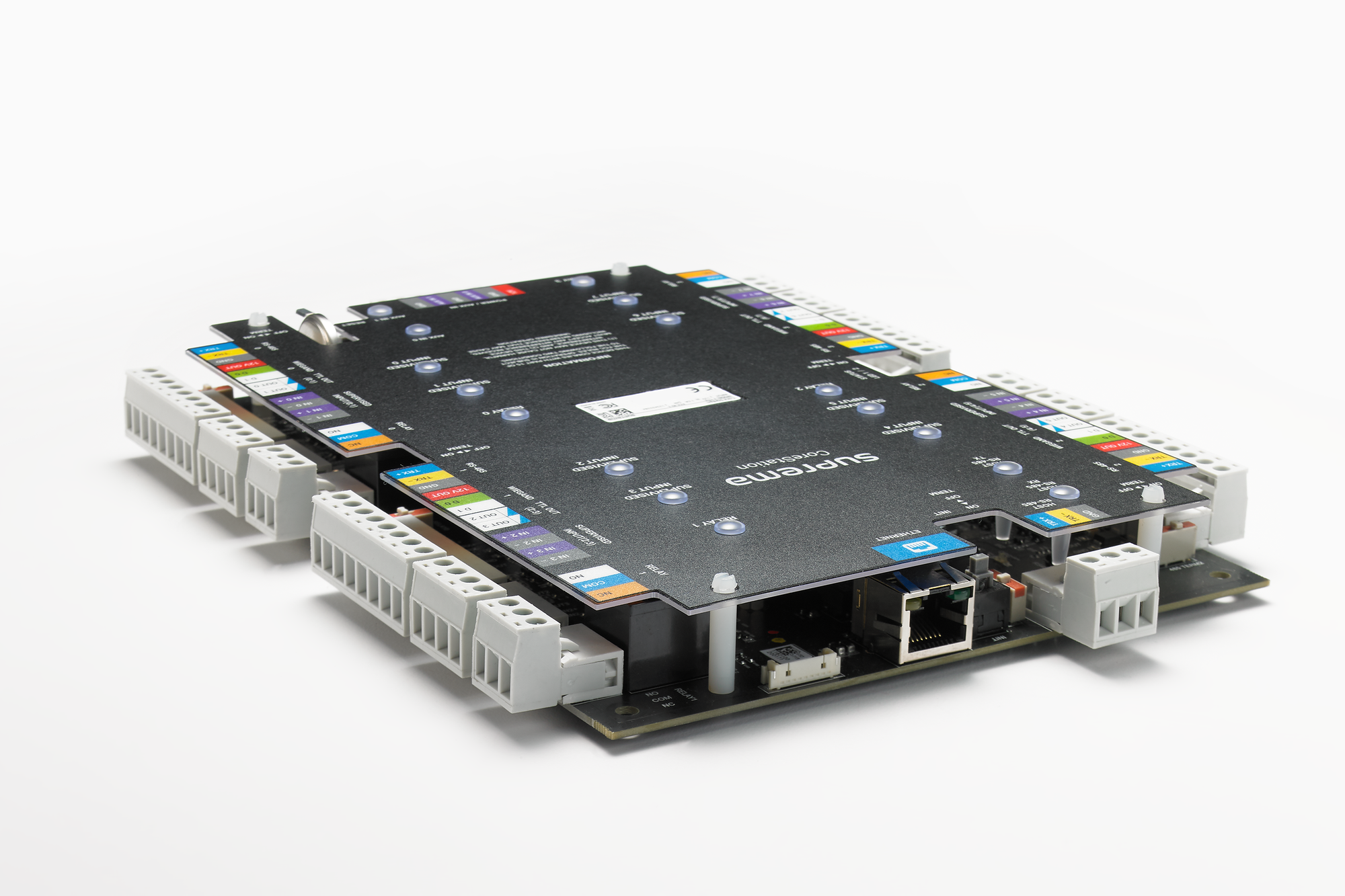

Suprema CoreStation CS-40 Intelligent Biometric Controller

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.

Specifications

General

• CPU: 1.4 GHz Octa-core
• Memory: 8 GB Flash + 1 GB RAM
• Crypto chip: Supported
• LED
  – Multi-color
  • STATUS – 2ea
  • HOST RS-485 TX – 1ea
  • HOST RS-485 RX – 1ea
  • SUPERVISED INPUT – 8ea
  • RELAY – 4ea
  • AUX IN – 2ea
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 95 %, non-condensing
• Operational ambient conditions: 0 °C ~ 49 °C
• Dimension (W x H x D) : 150 x 214 x 21 (mm)
• Weight: 415 g
• Certificates: CE, UKCA, KC, FCC, RCM, RoHS, REACH, WEEE

Capacity

• Max. User: 500,000¹⁾
• Max. Credential (1:1)
  • Fingerprint: 500,000²⁾
  • Face: 30,000
  • Card: 500,000
  • PIN: 500,000
• Max. Credential (1:N)
  • Fingerprint: 500,000²⁾
  • Face: 4,000
• Max. Text Log: 5,000,000

Interface

• Ethernet: Support (10/100 Mbps, Auto MDI/MDI-X)
• RS-485: 5 ch
• RS-485 Communication Protocol: OSDP V2 compliant
• Wiegand: 4 ch
• Relay: 4 relays
• Supervised Input: 8 ch (TTL input selectable)
• TTL Output: 8 ch
• AUX Input: 2 ch (AC POWER FAIL, Tamper)

Electrical

• Power
• CoreStation
  • Voltage: 12 Vdc
  • Current: Max. 3 A
• Power Supply (SMPS) AC INPUT
  • 110 ~ 240 VAC, 50/60 Hz
• Power Output
  • Voltage: 12 Vdc
  • Current: Max. 1.5 A
• Switch input VIH
  • Max.: 5 V
  • Min.: 3 V
• Switch input VIL: Max.: 1V
• Relay: 5 A @ 30 VDC Resistive load

• Product specifications are subject to change without notice to improve.
• FaceStation 2 and FaceLite are available only.

1) The number of users registered without any credential data.
2) If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint
authentication.
