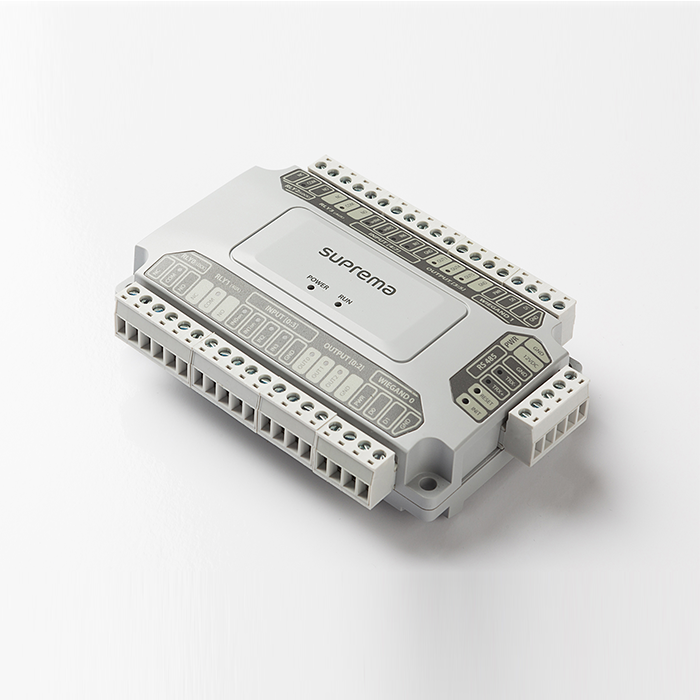

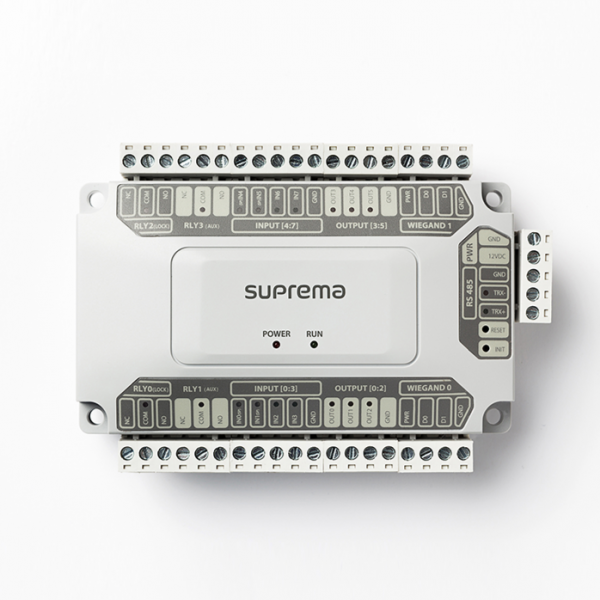

Suprema Door Module DM-20 Secure Multi Door I/O Module

描述

Suprema Door Module DM-20 Secure Multi Door I/O Module

Door Module provides secure door control of up to four doors via encrypted communication and also contains two wiegand reader interfaces for use with 3rd party readers. A wide variety of I/O interfaces allows Door Module to be a part of diverse system configurations.



Specifications

General

• CPU Cortex M3 72 MHz
• Memory 128 KB Flash, 20 KB SRAM
• LED
  – Multi-color
     • Power x1
     • Relay x4
     • TTL Input x4
     • Supervised Input x4
     • TTL Output x6
     • RS-485 x2
     • Run x1
• Operating temperature -20 °C ~ 60 °C
• Storage temperature -40 °C ~ 70 °C
• Operating humidity 0 % ~ 80 %, non-condensing
• Storage humidity 0 % ~ 90 %, non-condensing
• Dimension (W x H x D) 130 x 90.5 x 35.8 (mm)
• Certificates CE, UKCA, KC, FCC, RoHS, REACH, WEEE

Interface

• RS-485 1 ch
• TTL Input
  • TTL Input 4 ch
  • Supervised Input 4 ch
• Output TTL Output 6 ch
• Relay 4 relays
• Wiegand
• Wiegand Input 2 ch
  • Voltage: 12 Vdc
  • Current: Max. 1.5 A

Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 3.1 A
• Relay 2 A @ 30 VDC Resistive load
• 1 A @ 30 VDC Inductive load
