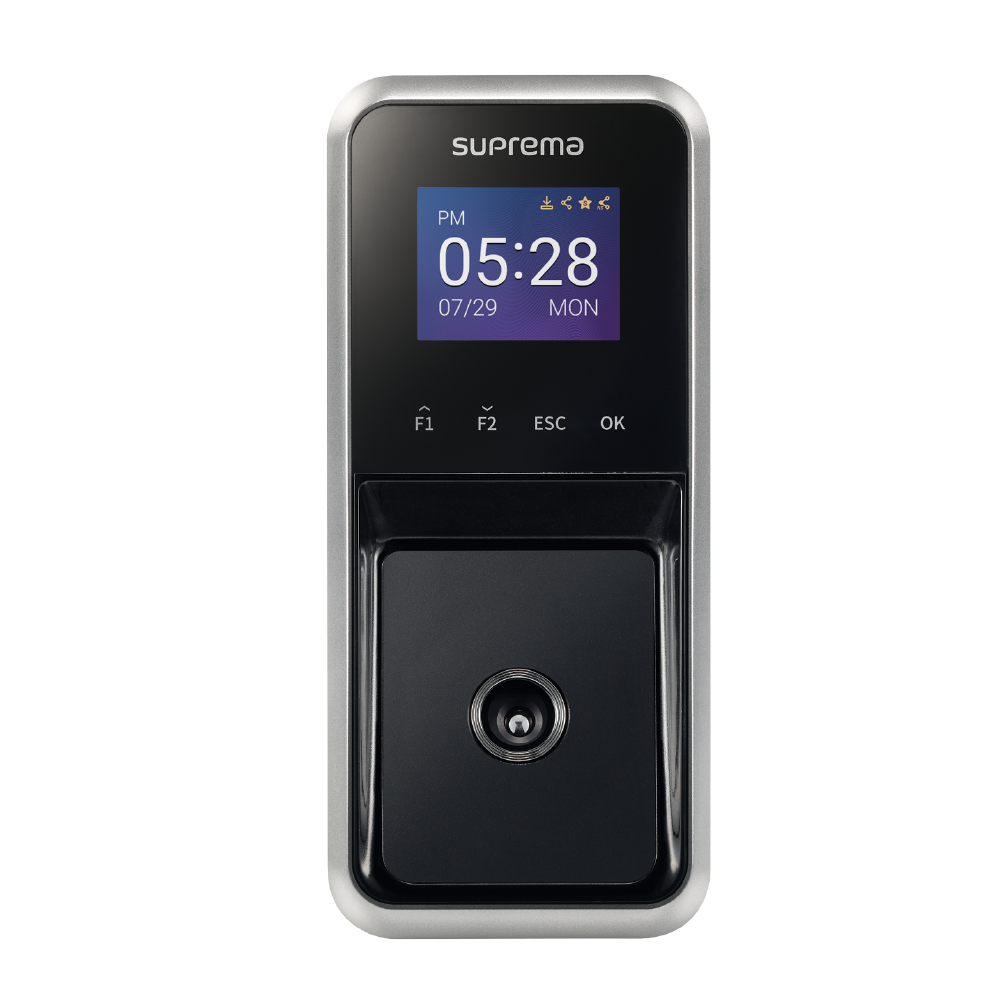

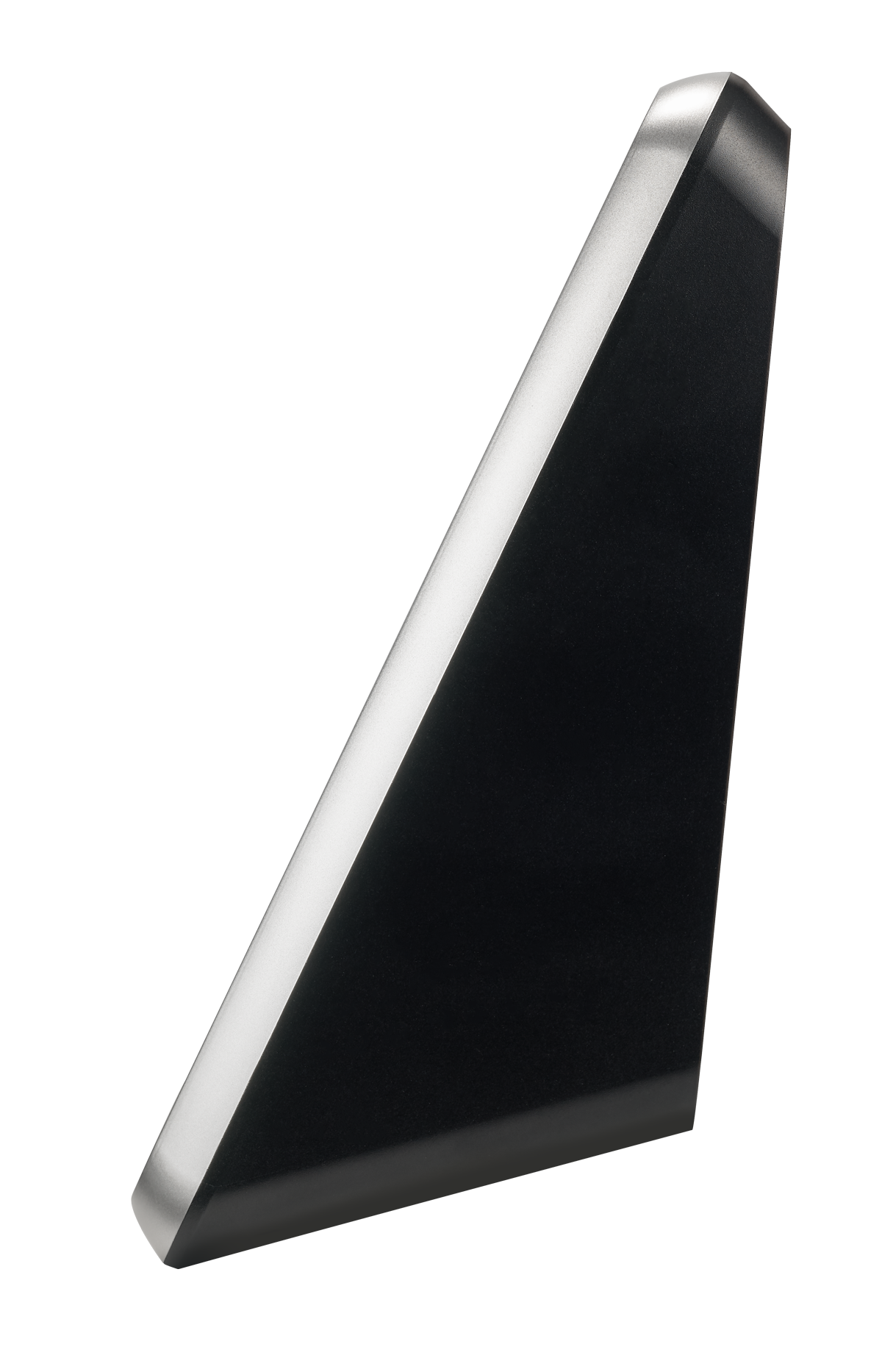

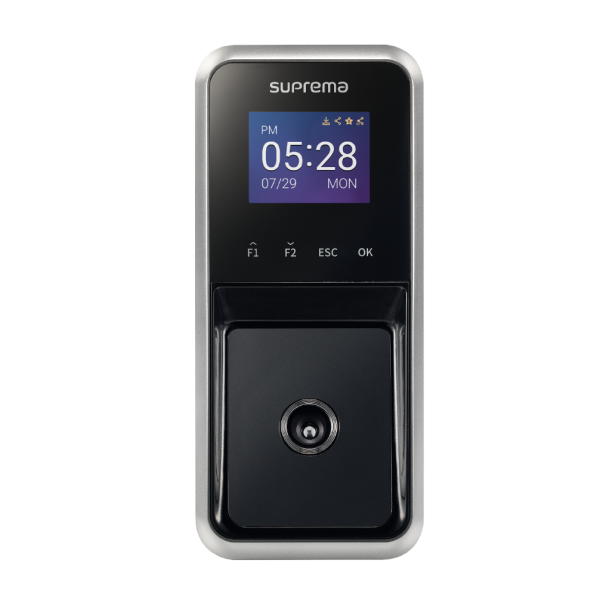

Suprema FaceLite FL-DB Compact Face Recognition Terminal
Suprema FaceLite is the most compact facial authentication terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceLite offers unrivaled matching speed, accuracy, and level of security. With Suprema’s patented optic engineering, FaceLite achieves up to 25,000 lx of operating illuminance which in turn, brings all-around confidence regardless of lighting conditions. Packed in a compact and an ergonomically-designed structure, FaceLite provides exceptional performance and usability for diverse access control and time attendance sites, large or small.
Specifications
Credential
- Biometric: Face
- RF Option: 125 kHz EM & 13.56 Mhz MIFARE, MIFARE Plus,
DESFire EV1/EV21), FeliCa, NFC & 2.4 GHz BLE - RF read range2) : MIFARE/DESFire/BLE: 50 mm, EM/Felica: 30 mm
- Mobile: NFC, BLE
- Live Face Detection: Supported
General
- CPU: 1.2 GHz Quad-core
- Memory: 8 GB Flash + 1 GB RAM
- Crypto chip: Supported
- LCD type: 2” color TFT LCD
- LCD resolution: 320 x 240 pixels
- IR LED: 8 ea (940 nm)
- Sound: 24 bit DSP
- Operating temperature: -20 °C ~ 50 °C
- Storage temperature: -40 °C ~ 70 °C
- Operating humidity: 0 % ~ 80 %, non-condensing
- Storage humidity: 0 % ~ 90 %, non-condensing
- Camera: CMOS
- Camera resolution: 720 x 480 pixels
- Camera angle: IR Lens: Diagonal 58°
- Dimension (W x H x D) : 80 x 170 x 76 (mm)
- Weight
• Device: 296 g
• Bracket (Including washer and bolt): 41 g - Certificates: CE, UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE
Capacity
- Max. User: 30,0003)
- Max. Credential (1:N)
• Fingerprint: 30,0004)
• Face: 4,000 - Max. Credential (1:1)
• Fingerprint: 30,0004)
• Face: 30,000
• Card: 30,000
• PIN: 30,000 - Max. Text Log: 5,000,000
- Image Log: Not Supported
Interface
- Wi-Fi: Not Supported
- Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
- RS-485: 1 ch Host or Slave (Selectable)
- Wiegand: 1 ch Input or Output (Selectable)
- TTL input: 2 ch Inputs
- Relay: 1 Relay
- USB: USB 2.0 (Host)
- Tamper: Supported
Electrical
- Power
• Voltage: 24 Vdc
• Current: Max. 1.2 A - Switch input VIH
• Min.: 3 V
• Max.: 5 V - Switch input: VIL Max.: 1 V
- Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
- Wiegand output VOH: More than 4.8 V
- Wiegand output VOL: Less than 0.2 V
- Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
- Relay
• 2 A @ 30 VDC Resistive load
• 1 A @ 30 VDC Inductive load
1) DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards.
CSN and smart card functions are compatible with FaceLite.
2) RF read range will vary depending on installation environment.
3) The number of users registered without having any credential data.
4) If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint authentication.
