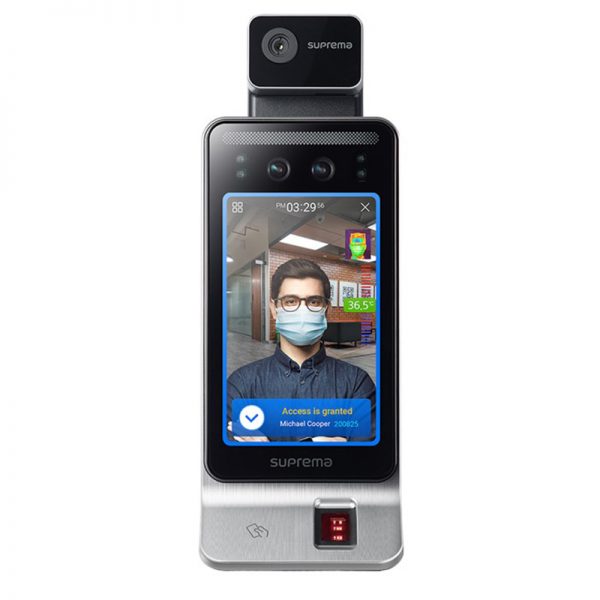

Suprema FaceStation F2 FSF2-ODB Fusion Multimodal Terminal
Suprema FaceStation F2 is a fusion multimodal terminal with unmatched facial authentication performance.
Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.
Specification
Credential
- Biometric：Face, Fingerprint
- RF Option：125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3(1), FeliCa
- RF Read Range：EM/MIFARE/DESFire : 50 mm (2″), FeliCa: 30 mm (1.2″)
- Mobile：NFC, BLE
General
- CPU：1.8 GHz Dual Core + 1.4 GHz Quad Core
- Memory：16GB Flash + 2GB RAM
- Crypto Chip：Supported
- LCD Type：7” IPS color LCD
- LCD Resolution：800 x 1280 pixels
- Sound：16 bit
- Operating Temperature：-20°C ~ 50°C (-4°F ~ 122°F)
- Operating Humidity：0% ~ 80%, non-condensing
- Dimension (W x H x D, mm)：119.8 x 268.3 x 49.6 (4.7″ x 10.5″ x 1.9″)
- Weight（Device）：670g
- Weight（Bracket）：205g
- Ingress Protection (IP)：IP65
- Certificates：CE, FCC, KC, RoHS, REACH, WEEE
Fingerprint
- Image Dimension：300 x 400 pixels
- Resolution：500 dpi
- Template：SUPREMA / ISO19794-2, ANSI-378
- Extractor / Matcher：MINEX certified and compliant
- Sensor Certificates：FBI PIV and FBI Mobile ID FAP20
- Live Fingerprint Detection：Supported (Deep learning-based)
Face
- Recognition Distance：0.5m ~ 1.3m (19.7″ ~ 51.2″)
- Recognition Height：140cm ~ 190cm (55.1″ ~ 74.8″)
- Matching Speed：Less than 0.5 sec
- Live Face Detection (Anti-Spoofing)：Supported
Capacity
- Max. User (1:1)：100,000
- Max. User (1:N)：Face: 50,000 ，Fingerprint: 100,000
- Max. Text Log：5,000,000
- Max. Image Log：50,000
Interface
- Ethernet：10/100 Mbps, auto MDI/MDI-X
- RS-485：1ch Host or Slave (Selectable)
- Wiegand：1ch Input or Output (Selectable)
- TTL Input：2ch Inputs
- Relay：1 Relay
- USB：USB 2.0 (Host)
- Tamper：Supported
Power
- DC 12V 1.9A, DC 24V 1A
* Use a DC 24V 1A adapter. Must follow the product manual when using a DC 12V adapter.
