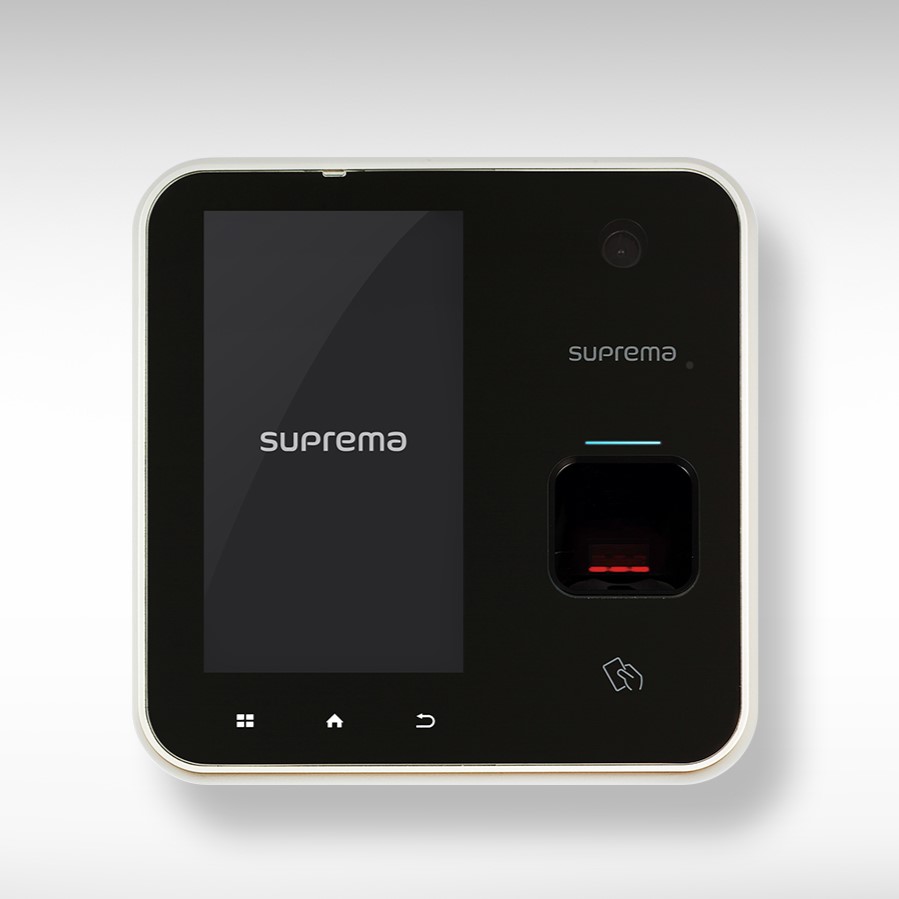

Suprema OMNIS Time and Attendance/Workforce Management Multimedia Workstation

描述

Credential

• Biometric: Fingerprint
• RF Option
  • OMNIS-E: 125kHz EM
  • OMNIS-H: 125kHz HID Prox
  • OMNIS-I: 13.56MHz iCLASS SE/SR/Seos, NFC
  • OMNIS-M: 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC
• RF read range*: EM/HID Prox: 50 mm, MIFARE: 50 mm, DESFire: 50 mm, Felica: 30 mm
• LFD: Supported

General

• CPU: 1.0 GHz Quad Core
• Memory: 8GB Flash + 1GB RAM
• LCD type: 5” color TFT touch
• LCD resolution: 480 x 854
• LED: Multiple colors
• Sound: 24 bit/Voice DSP (echo cancel)
• Operating temperature: -20 °C – 50 °C
• Storage temperature: -40 °C – 70 °C
• Operating humidity: 0% – 80%, non-condensing
• Storage humidity: 0% – 90%, non-condensing
• Camera type: CMOS 2M pixels
• Camera resolution: 1600 x 1200
• Camera angle: Diagonal 122°, Horizontal 64.7°, Vertical 103.3°
• Dimension (W x H x D) :155 mm x 155 mm x 40 mm
• Weight
  – Device: 444 g
  – Bracket: 89 g (Including washer and bolt)
• Certificates: CE, FCC, KC, RoHS, REACH, WEEE

Fingerprint

• Image dimension: 272 x 320 pixels
• Image bit depth: 8bit, 256 grayscale
• Resolution: 500 dpi
• Template: SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher: MINEX certified and compliant
• LFD: Supported

Capacity

• Max. User (1:1) : 50,000
• Max. User (1:N) : 20,000
• Max. Template (1:1) : 100,000 (Two templates per finger)
• Max. Template (1:N) : 40,000 (Two templates per finger)

Interface

• Wi-Fi: Supported
• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• Wiegand: 1ch Input
• TTL input: 1ch Input
• Relay: 2 Relay
• USB: USB 2.0 (Host)
• SD Card: microSD card (Supports up to 32 GB)
• PoE: Supported (IEEE 802.3af compliant)
• Tamper: Supported

Electrical

• Power
  – Voltage: 12 VDC
  – Current: Max. 850 mA
• Switch input VIH
  – Min.: 3 V
  – Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Relay
  – Voltage: Max. 30 VDC
  – Current: Max. 1 A
