Suprema X-Station 2 Versatile Intelligent Terminal

描述

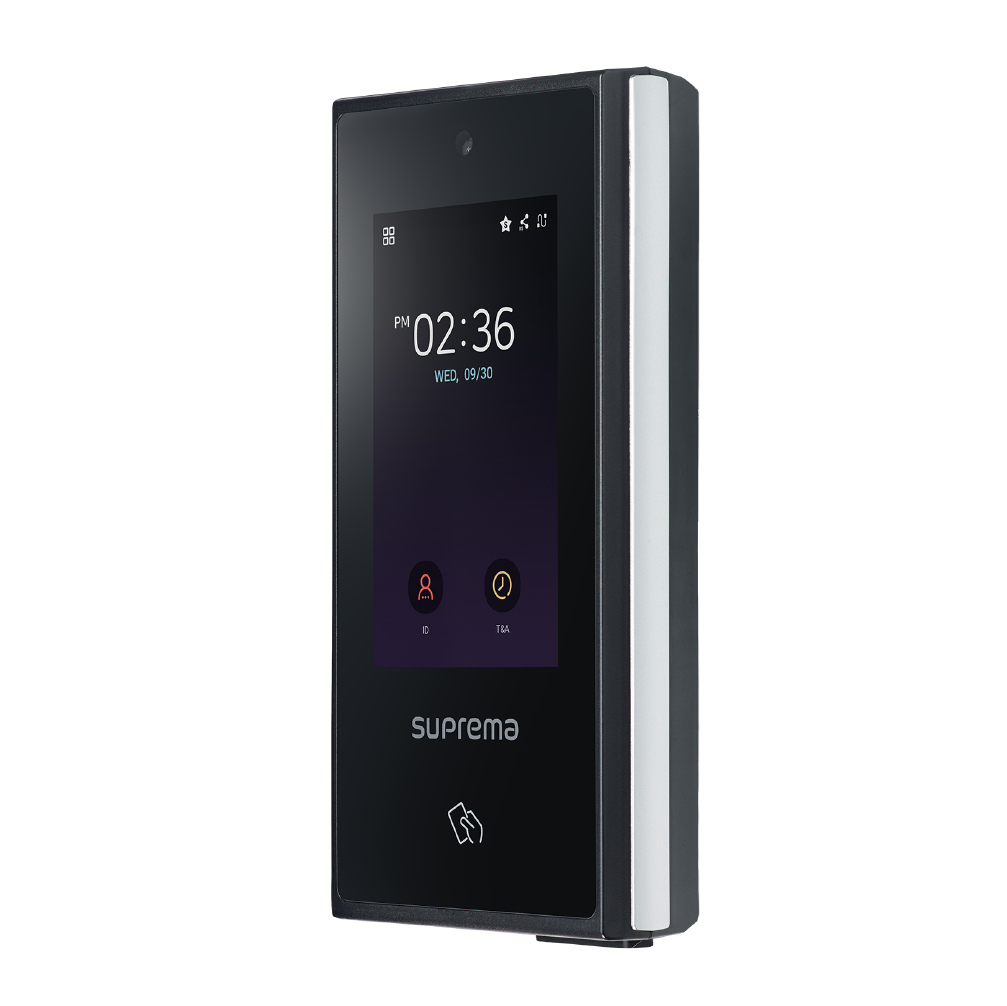

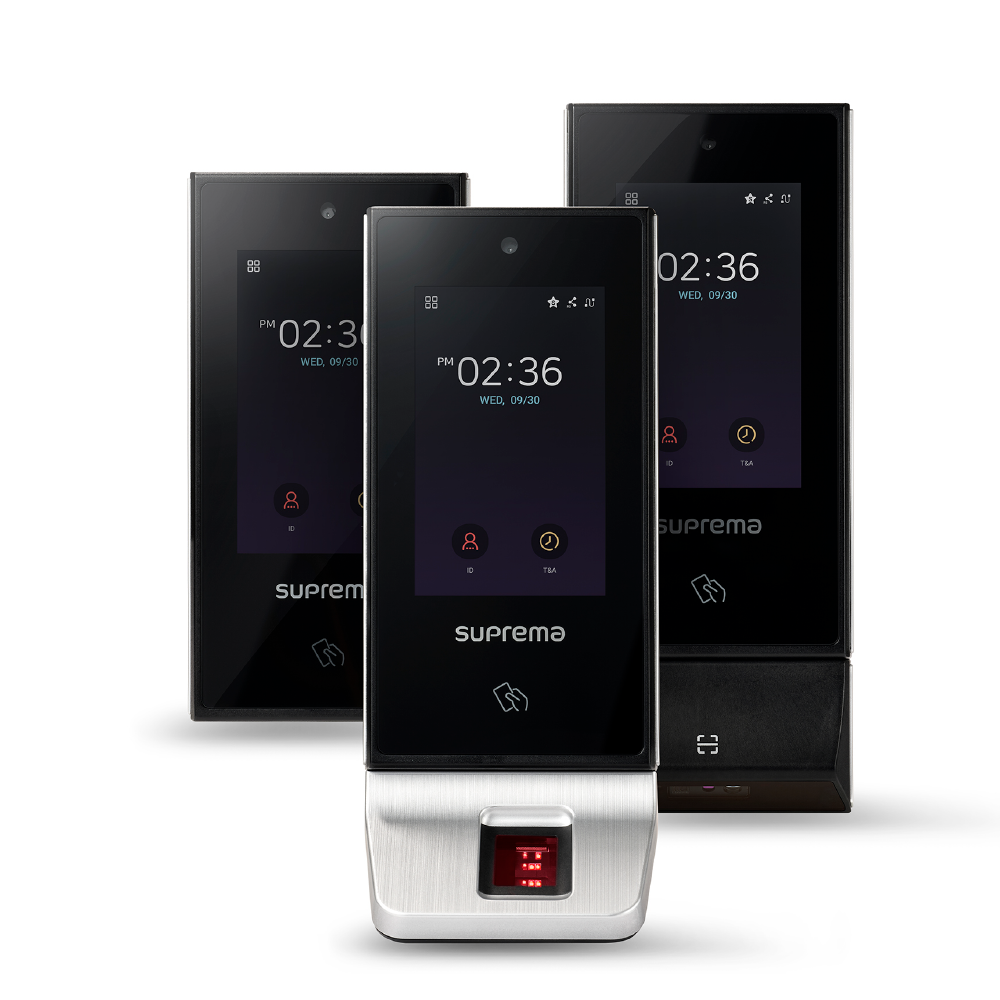

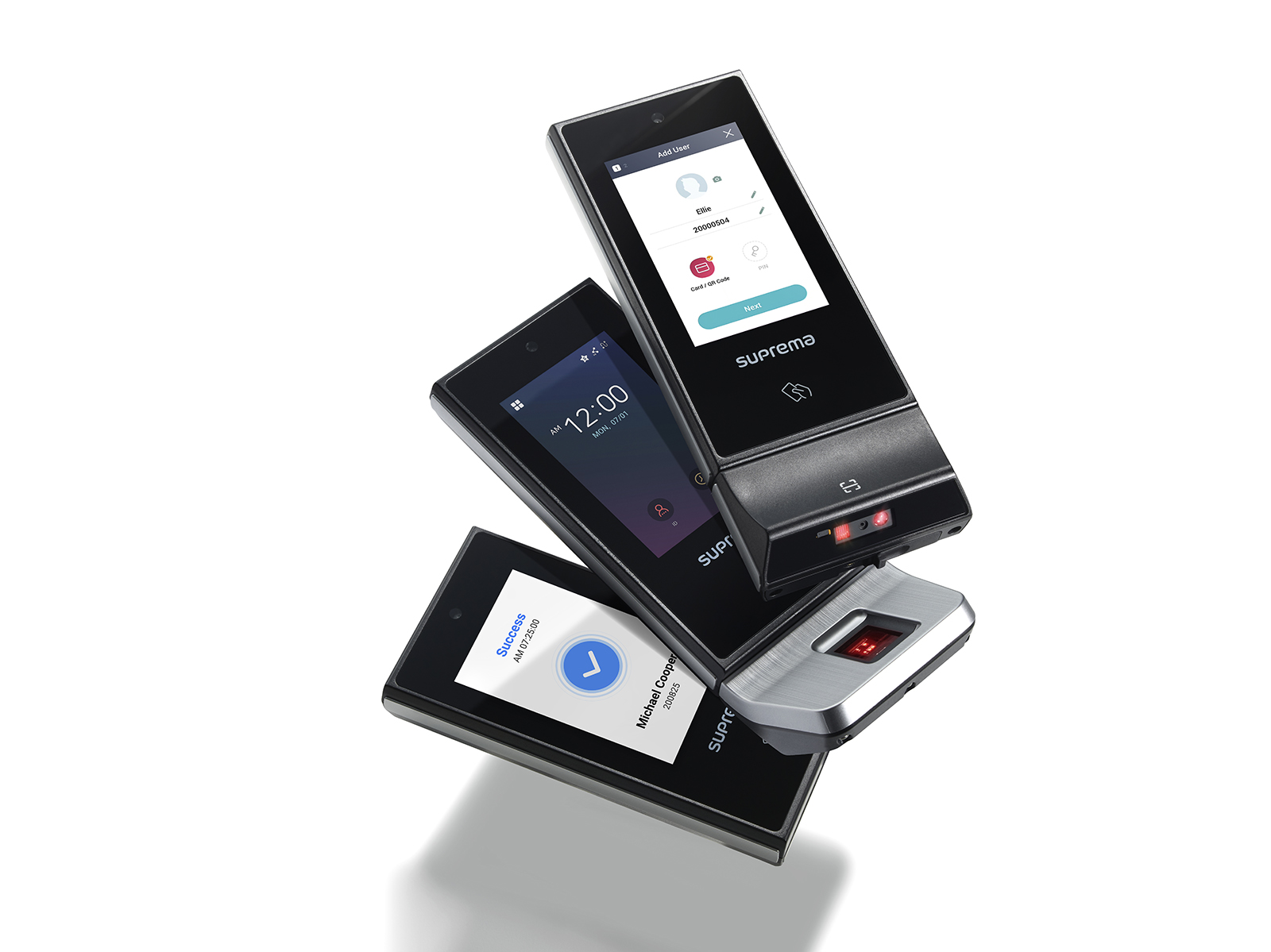

Suprema X-Station 2 Versatile Intelligent Terminal

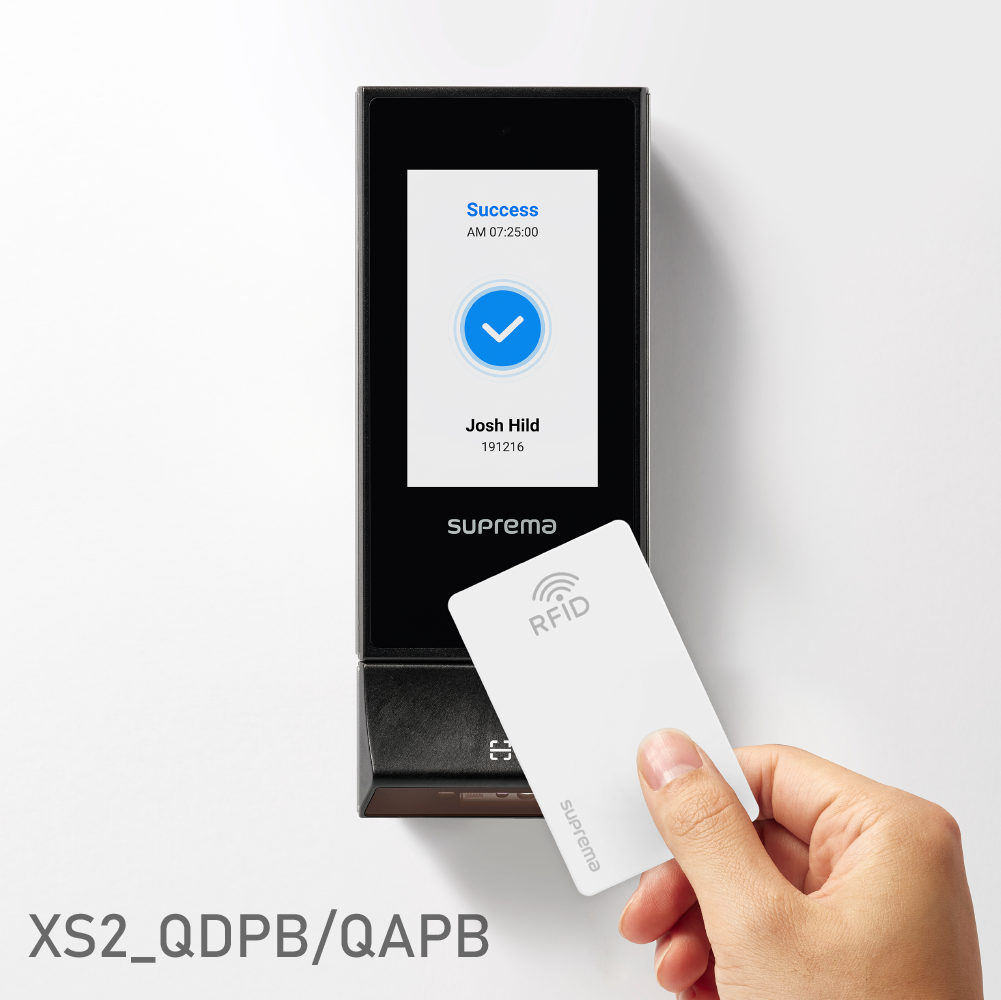

Model: XS2-QDPB, XS2-QAPB ; XS2-ODPB, XS2-OAPB ; XS2-DPB, XS2-APB

Suprema X-Station 2 is a versatile intelligent terminal that supports different credentials, such as QR codes, Mobile Access, RFID cards and fingerprints, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.



---

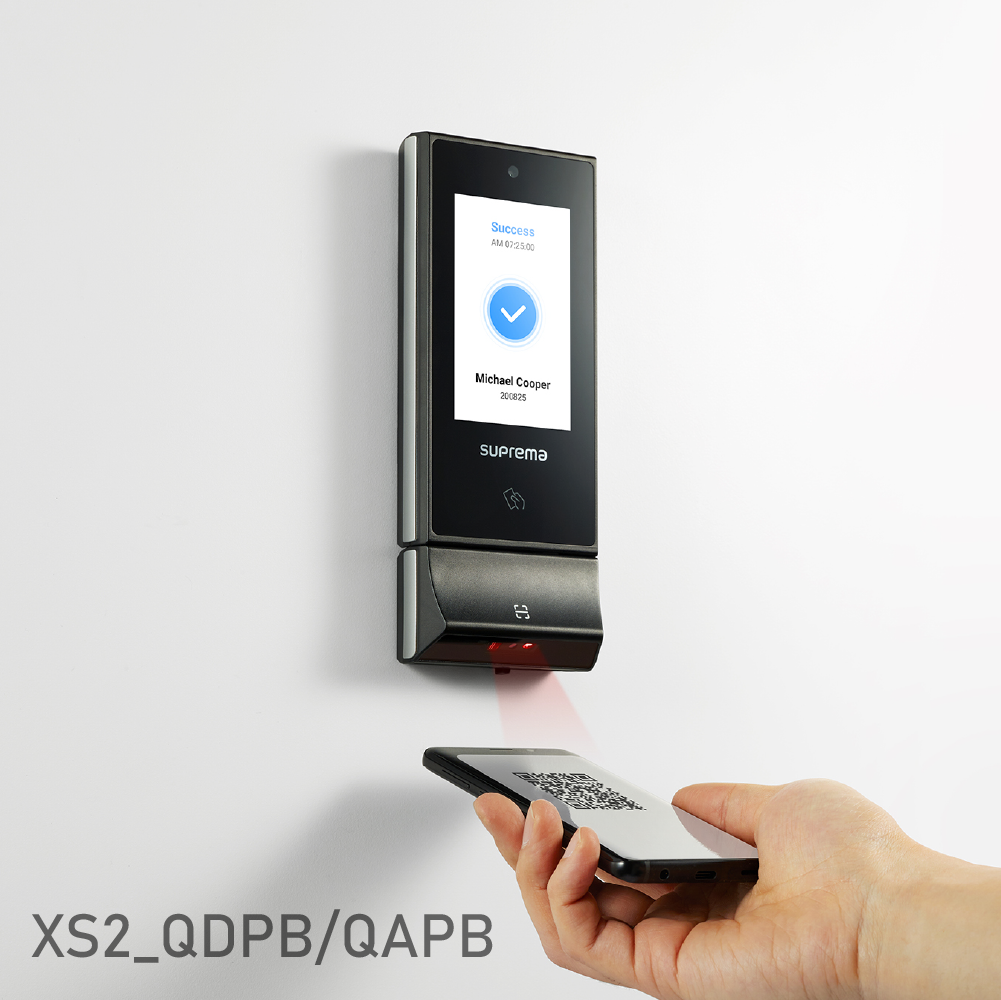

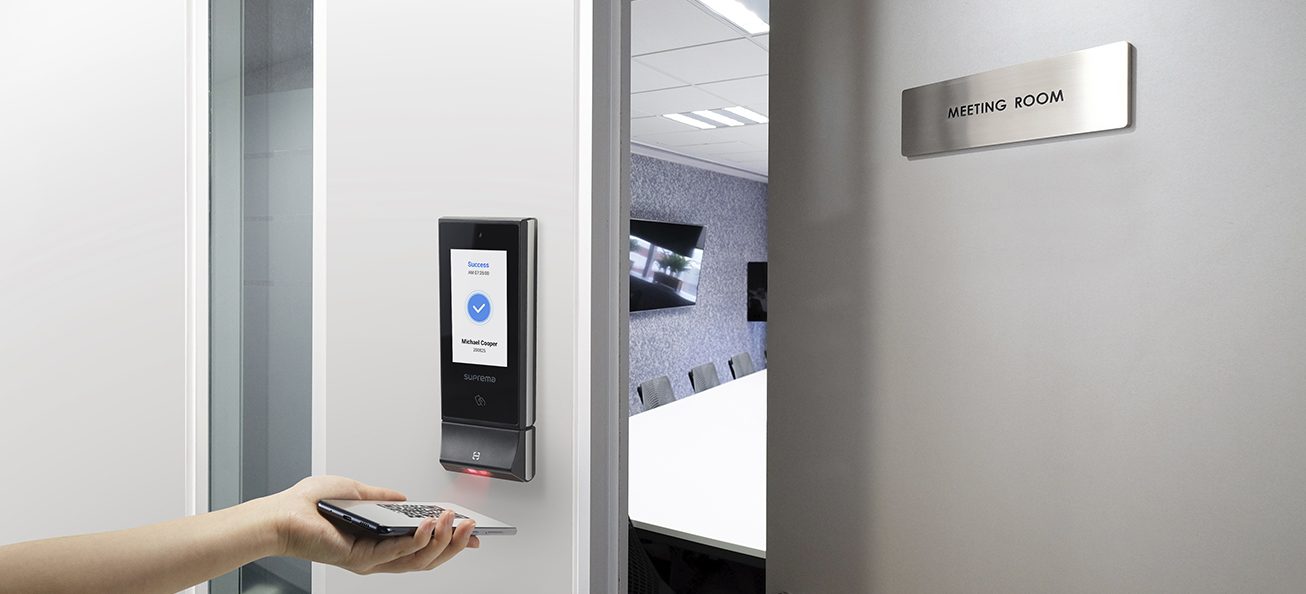

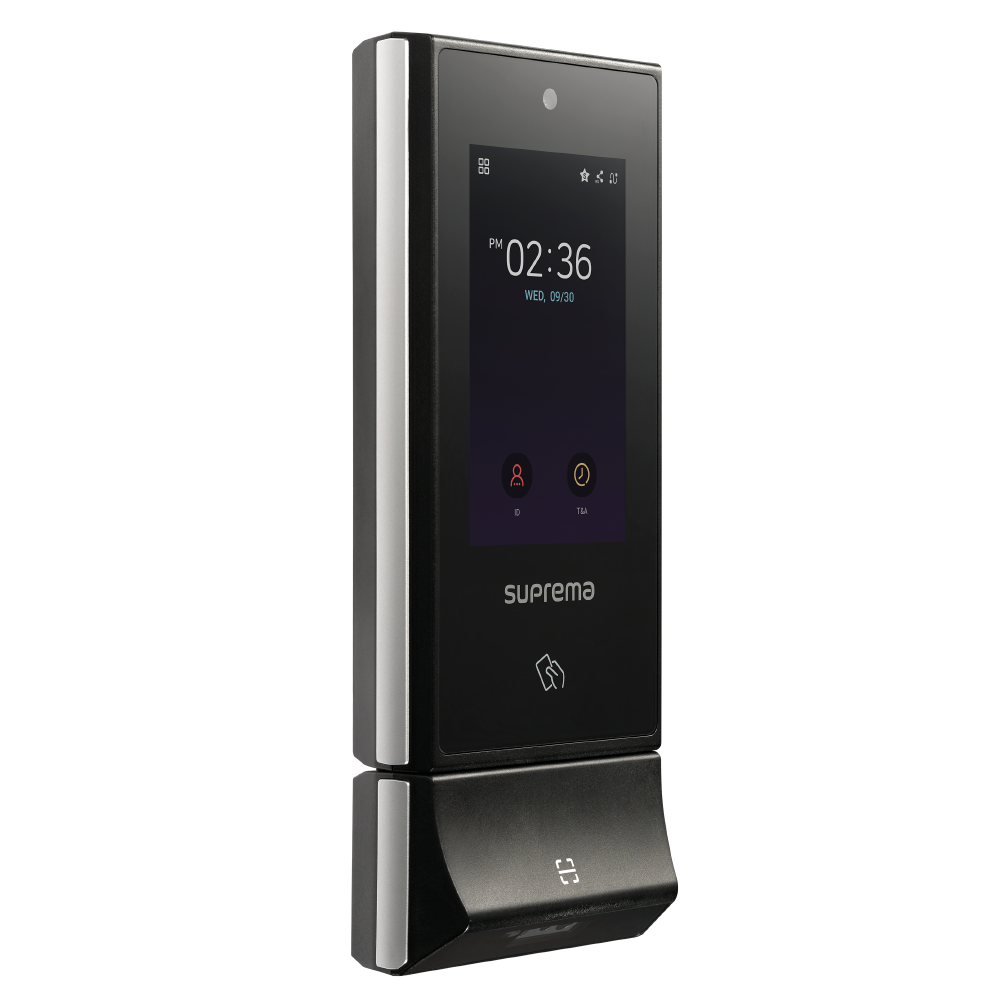

Specifications (Model:XS2-QDPB, XS2-QAPB)



Credential

• RF Option
  • XS2-QDPB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa
  • XS2-QAPB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa, iCLASS SE/SR/Seos
• RF read range²⁾: MIFARE/DESFire/iCLASS/HID Prox/EM: 50 mm, Felica: 30 mm
• Mobile: NFC, BLE
• Scramble keypad (PIN): Supported
• QR/Barcode³⁾: Supported



General

• CPU: 1.5 GHz Quad Core
• Memory: 16 GB Flash + 1 GB RAM
• Crypto chip: Supported
• LCD type: 4″ IPS color LCD
• LCD resolution: 480 x 800
• Sound: 24 bit
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Camera type: CMOS 2M pixels
• Camera resolution: 1600 x 1200
• Dimension (W x H x D): 82 x 203 x 33.9 (mm)
• Weight
  • Device: 343 g
  • Bracket: 88 g (Including washer and bolt)
• IP rating: IP65
• Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE



Capacity

• Max. User: 500,000
• Max. Card: 500,000
• Max. Text Log: 5,000,000
• Max. Image Log: 50,000



Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Host or Slave (Selectable)
• Wiegand: 1 ch Input or Output (Selectable)
• TTL input: 2 ch Inputs
• Relay: 1 Relay
• USB: USB 2.0 (Host)
• PoE: Supported (IEEE 802.3af compliant)
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.8 A
  –
  • Voltage: 24 Vdc
  • Current: Max. 0.5 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
2) RF read range will vary depending on installation environment.
3) Supports QR/Barcodes composed of up to 32 ASCII code strings.

---

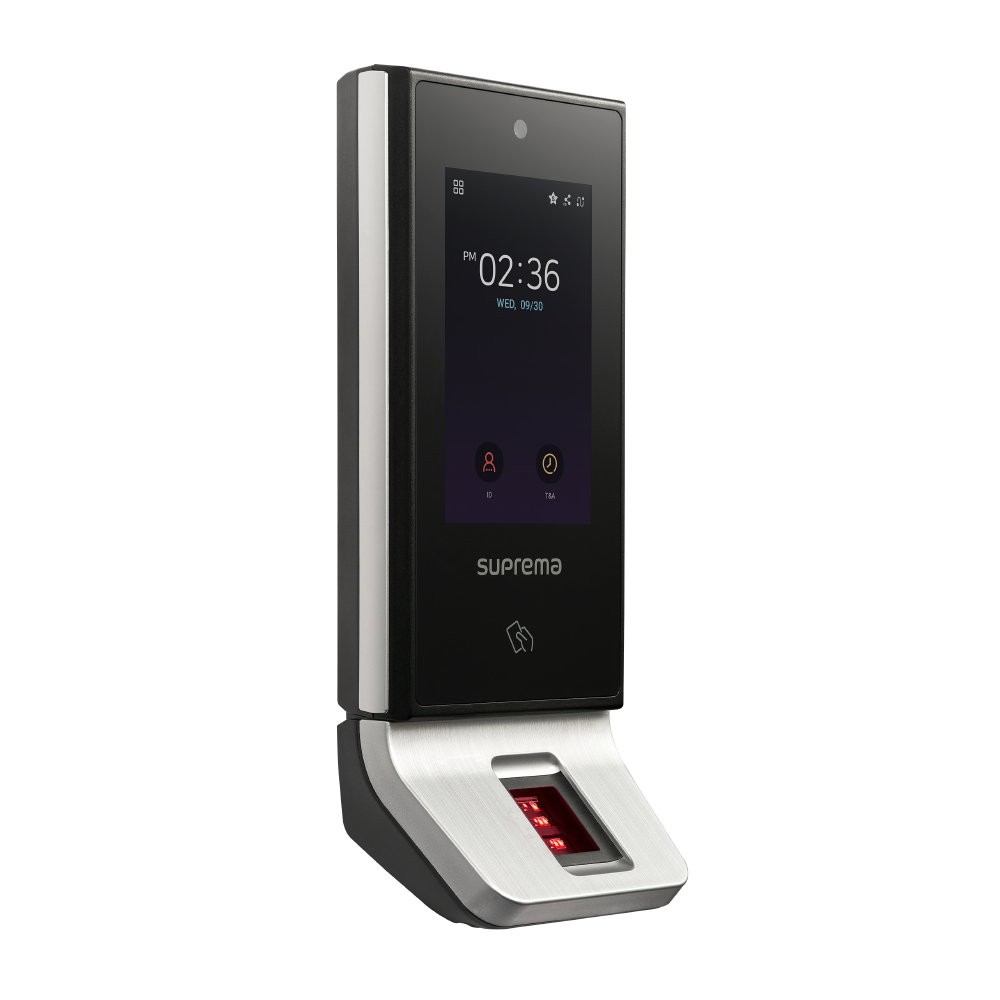

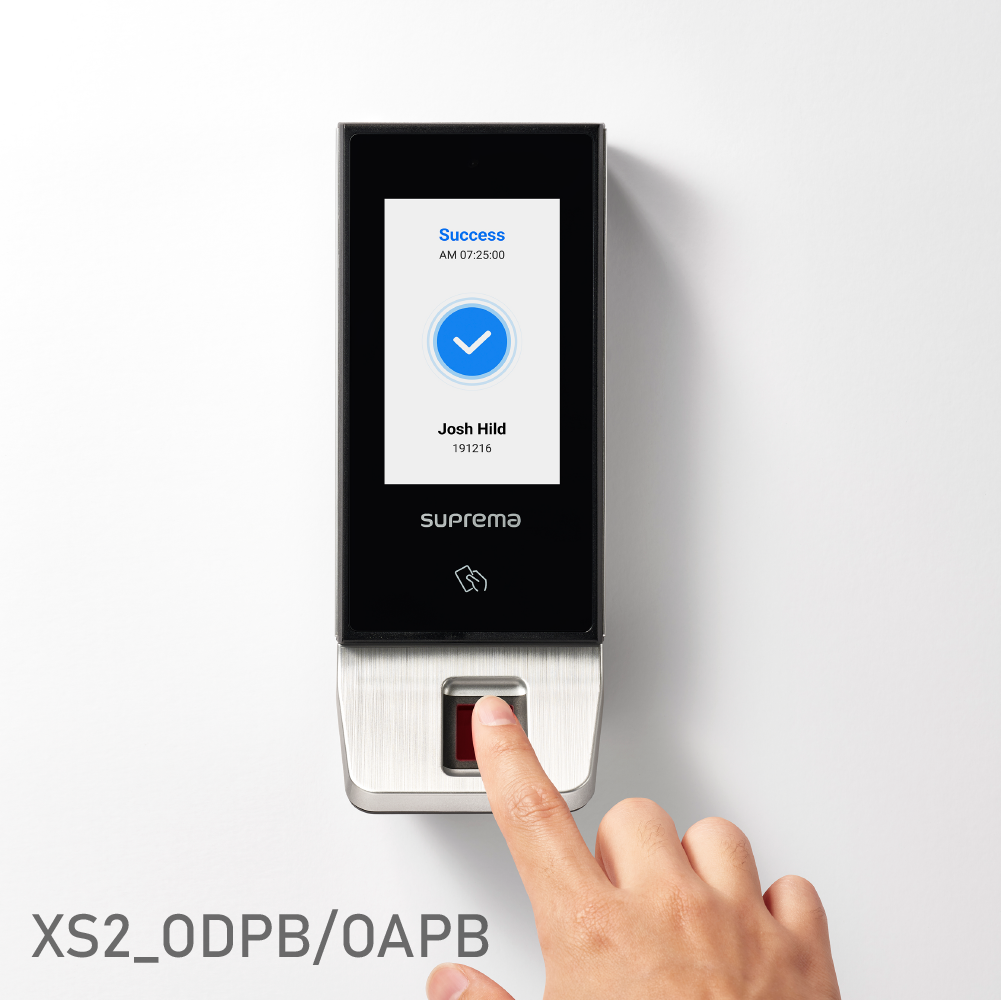

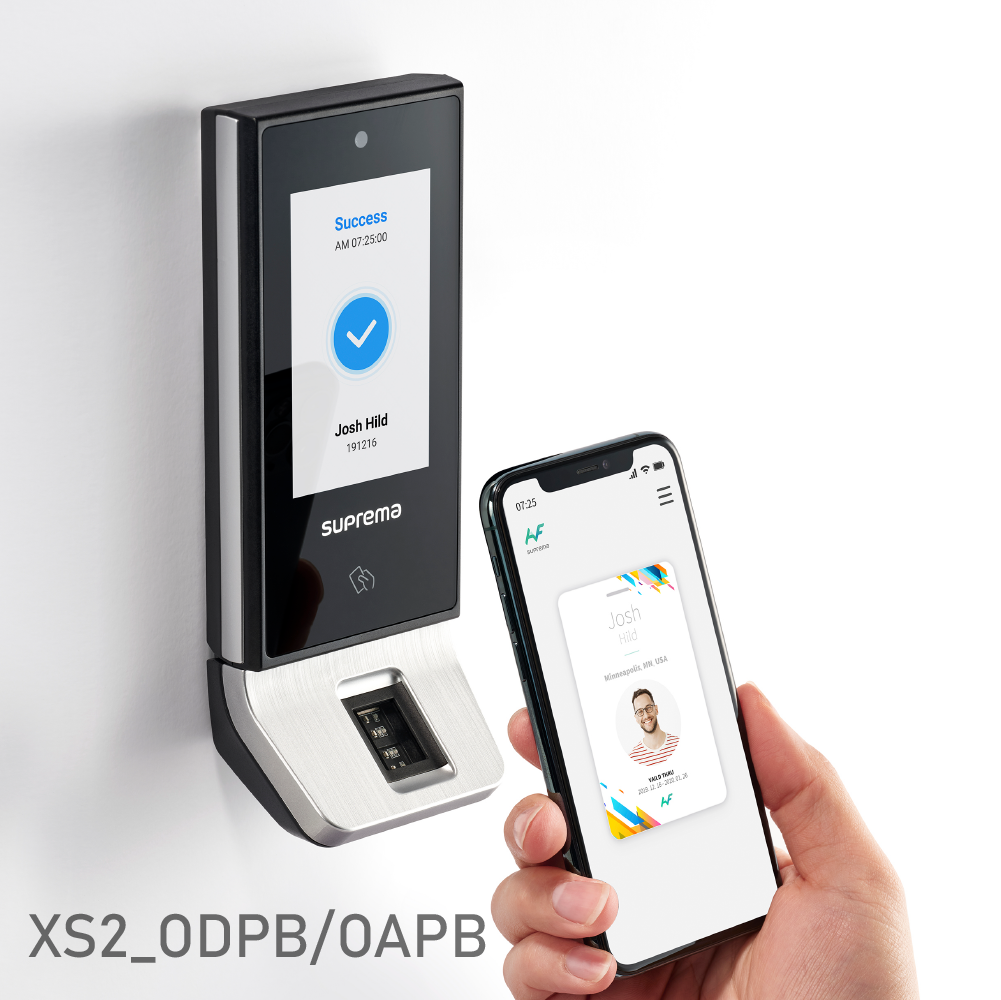

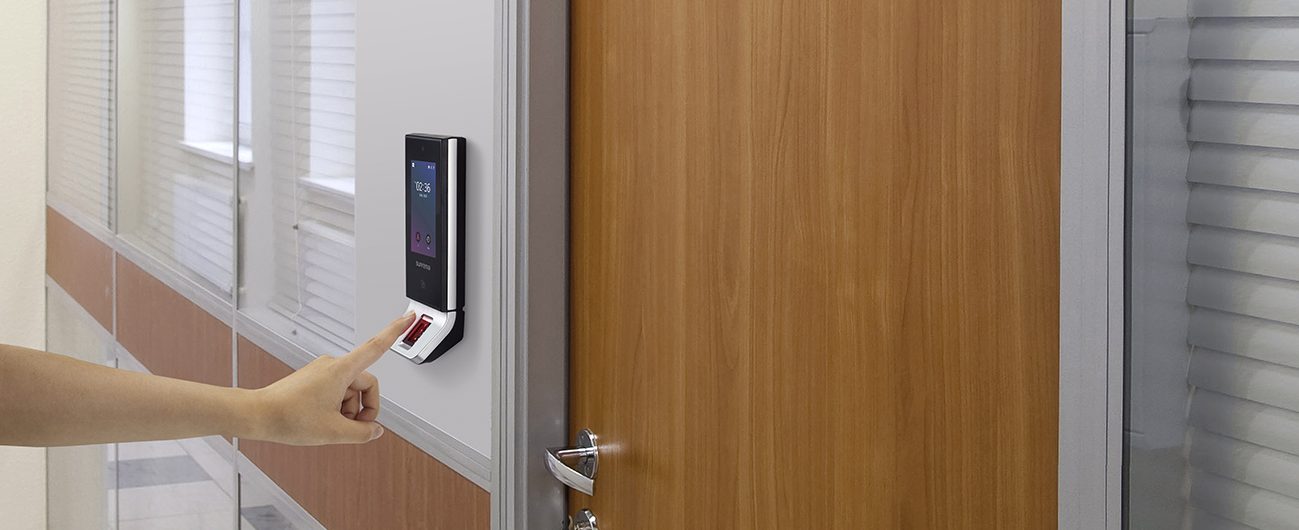

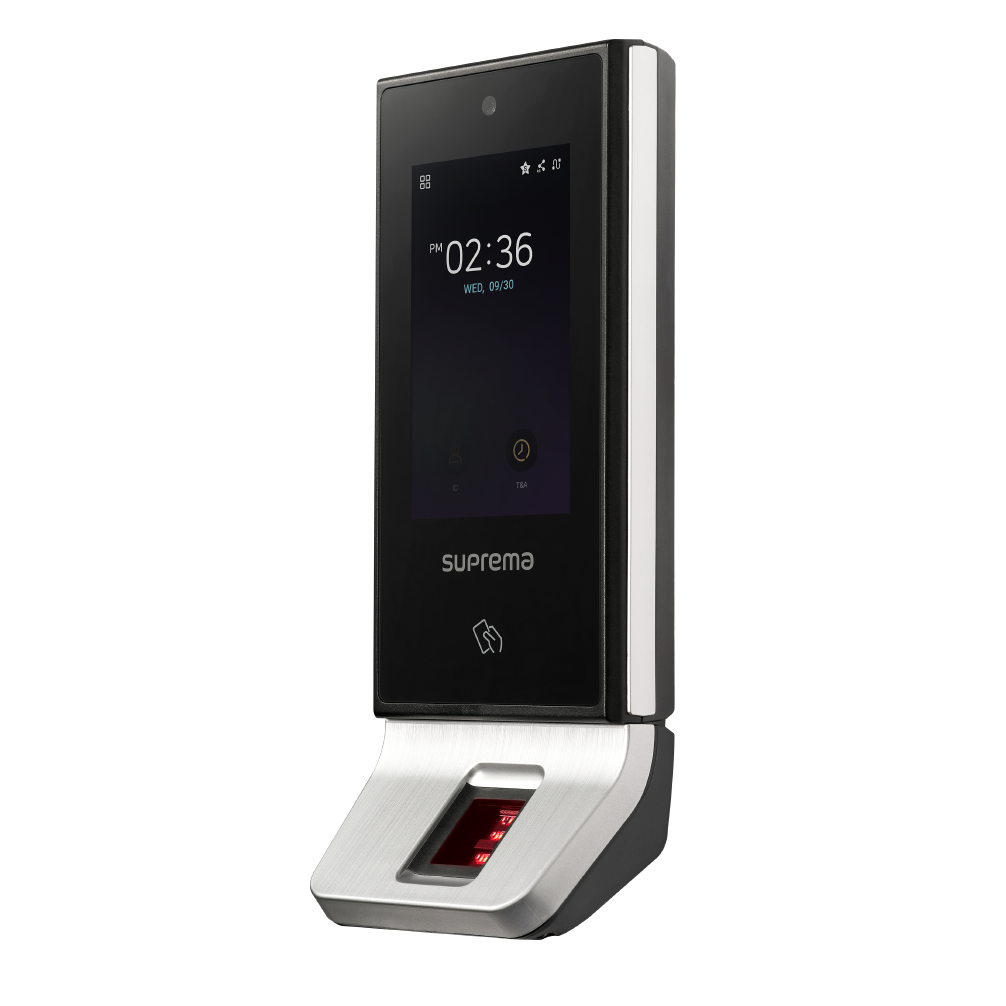

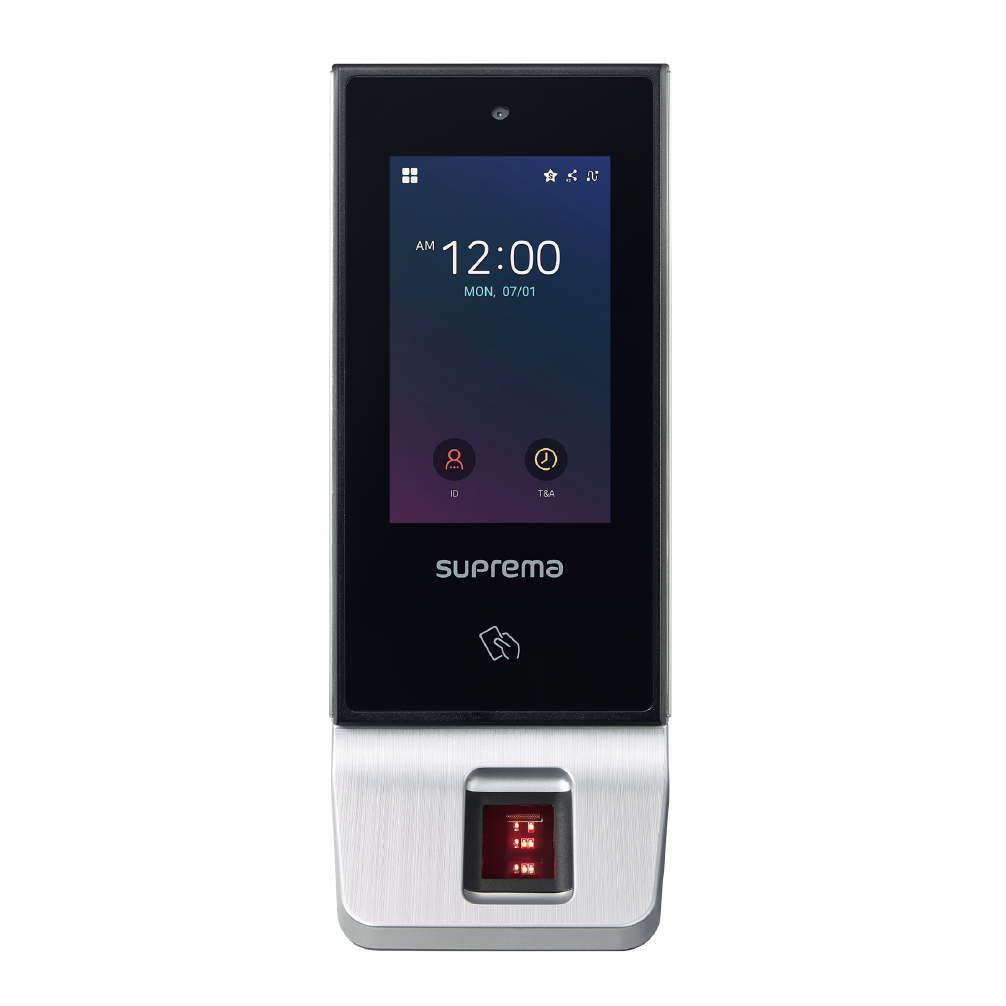

Specifications(Model:XS2-ODPB, XS2-OAPB)

Credential

• RF Option
  • XS2-ODPB: 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus,
  DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa
  • XS2-OAPB: 125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE
  Plus, DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa, iCLASS SE/SR/Seos
• RF read range²⁾ MIFARE/DESFire/iCLASS/HID Prox/EM: 50 mm, Felica: 30 mm
• Mobile NFC, BLE
• Scramble keypad (PIN) Supported
• QR/Barcode³⁾ Supported⁴⁾



General

• CPU 1.5 GHz Quad Core
• Memory 16 GB Flash + 1 GB RAM
• Crypto chip Supported
• LCD type 4″ IPS color LCD
• LCD resolution 480 x 800
• Sound 24 bit
• Operating temperature -20 °C ~ 50 °C
• Storage temperature -40 °C ~ 70 °C
• Operating humidity 0 % ~ 80 %, non-condensing
• Storage humidity 0 % ~ 90 %, non-condensing
• Camera type CMOS 2M pixels
• Camera resolution 1600 x 1200
• Dimension (W x H x D) 82 x 208.5 x 53 (Bottom) / 25.9 (Top) (mm)
• Weight • Device: 375 g
  • Bracket: 86 g (Including washer and bolt)
• IP rating IP65
• Certificates CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE



Fingerprint

• Image dimension 300 x 400 pixels
• Resolution 500 dpi
• Template SUPREMA / ISO19794-2, ANSI-378
• Extractor / Matcher MINEX certified and compliant
• Sensor Certificates FBI PIV and FBI Mobile ID FAP20
• Live Fingerprint Detection Supported (SW-based)



Capacity

• Max. User 500,000 ⁵⁾
• Max. Credential (1:N) Fingerprint: 100,000
• Max. Credential (1:1)
  • Fingerprint: 500,000
  • Card: 500,000
  • PIN: 500,000
• Max. Text Log 5,000,000
• Max. Image Log 50,000



Interface

• Ethernet Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485 1 ch Host or Slave (Selectable)
• Wiegand 1 ch Input or Output (Selectable)
• TTL input 2 ch Inputs
• Relay 1 Relay
• USB USB 2.0 (Host)
• PoE Supported (IEEE 802.3af compliant)
• Tamper Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.8 A
  • Voltage: 24 Vdc
  • Current: Max. 0.5 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL Max.: 1 V
• Switch Pull-up resistance 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH More than 4.8 V
• Wiegand output VOL Less than 0.2 V
• Wiegand output Pull-up resistance Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load

1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
2) RF read range will vary depending on installation environment.
3) Supports QR/Barcodes composed of up to 32 ASCII code strings.
4) Requires a separate license.
5) The number of users registered without having any credential data.

---

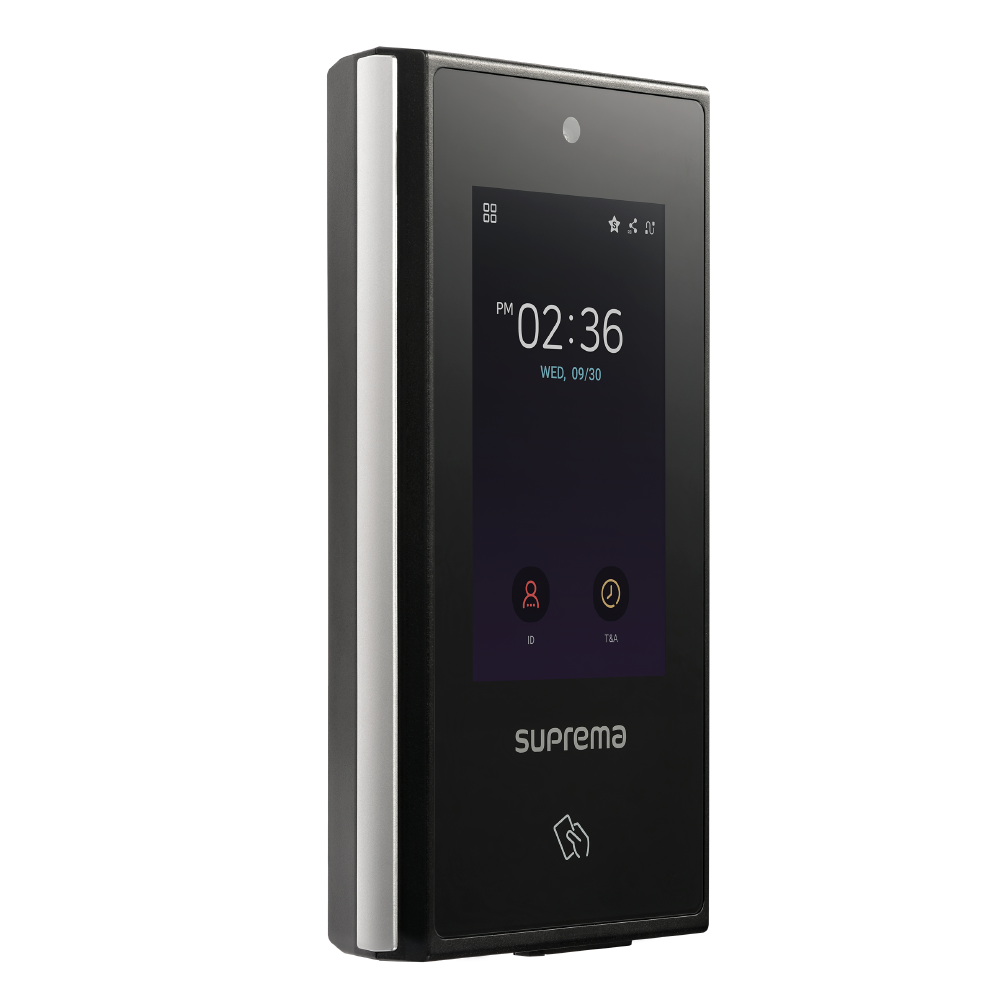

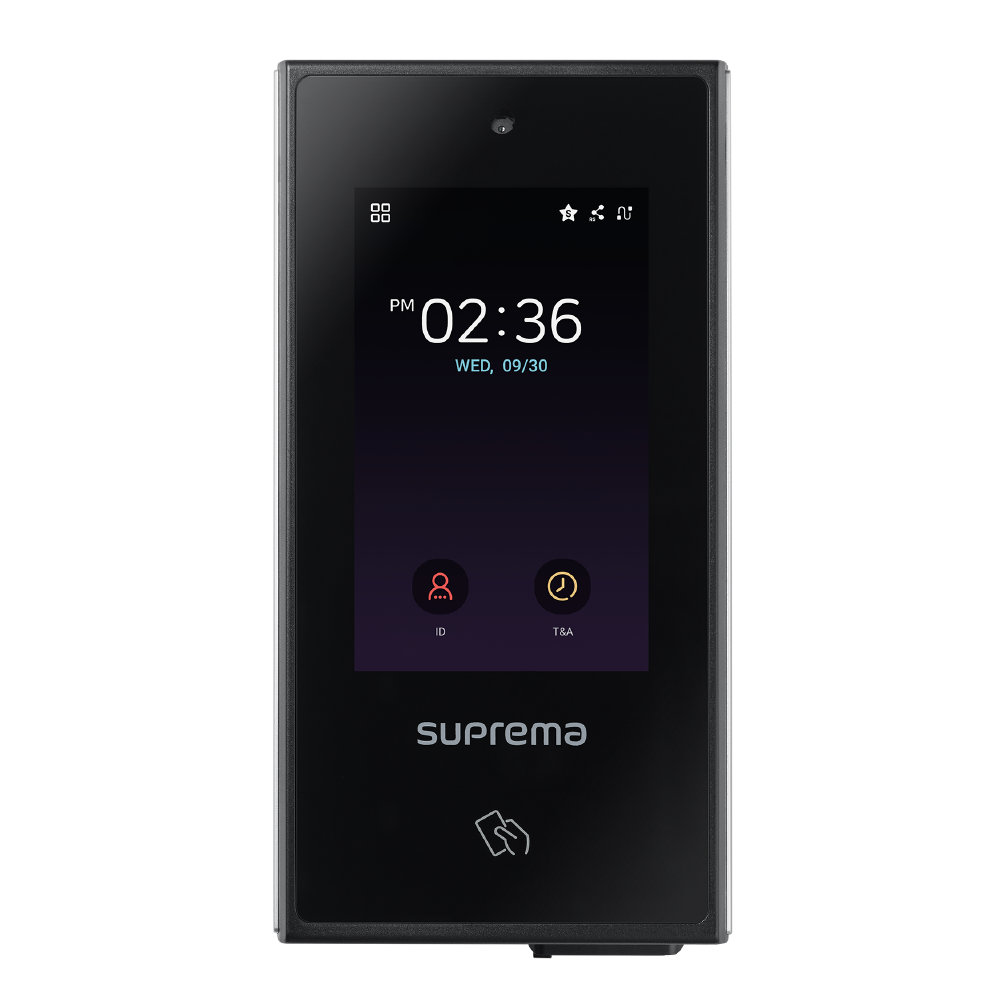

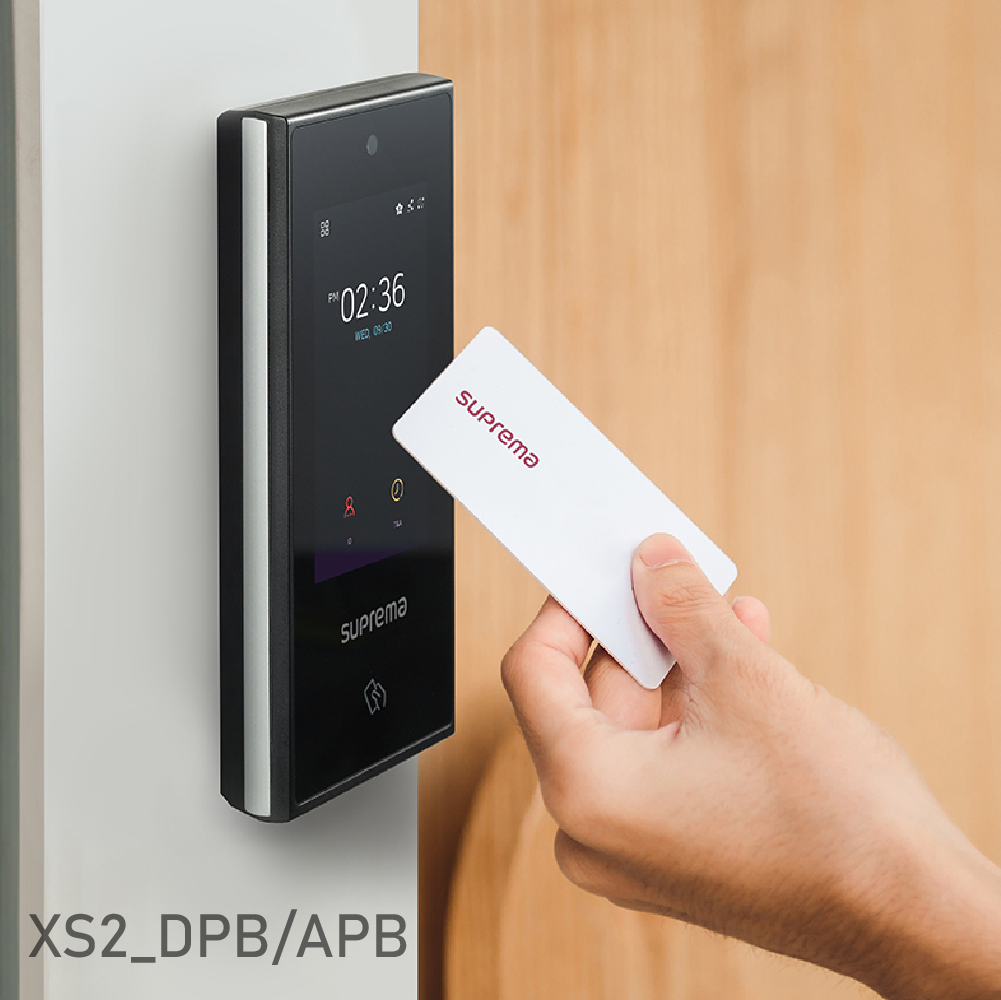

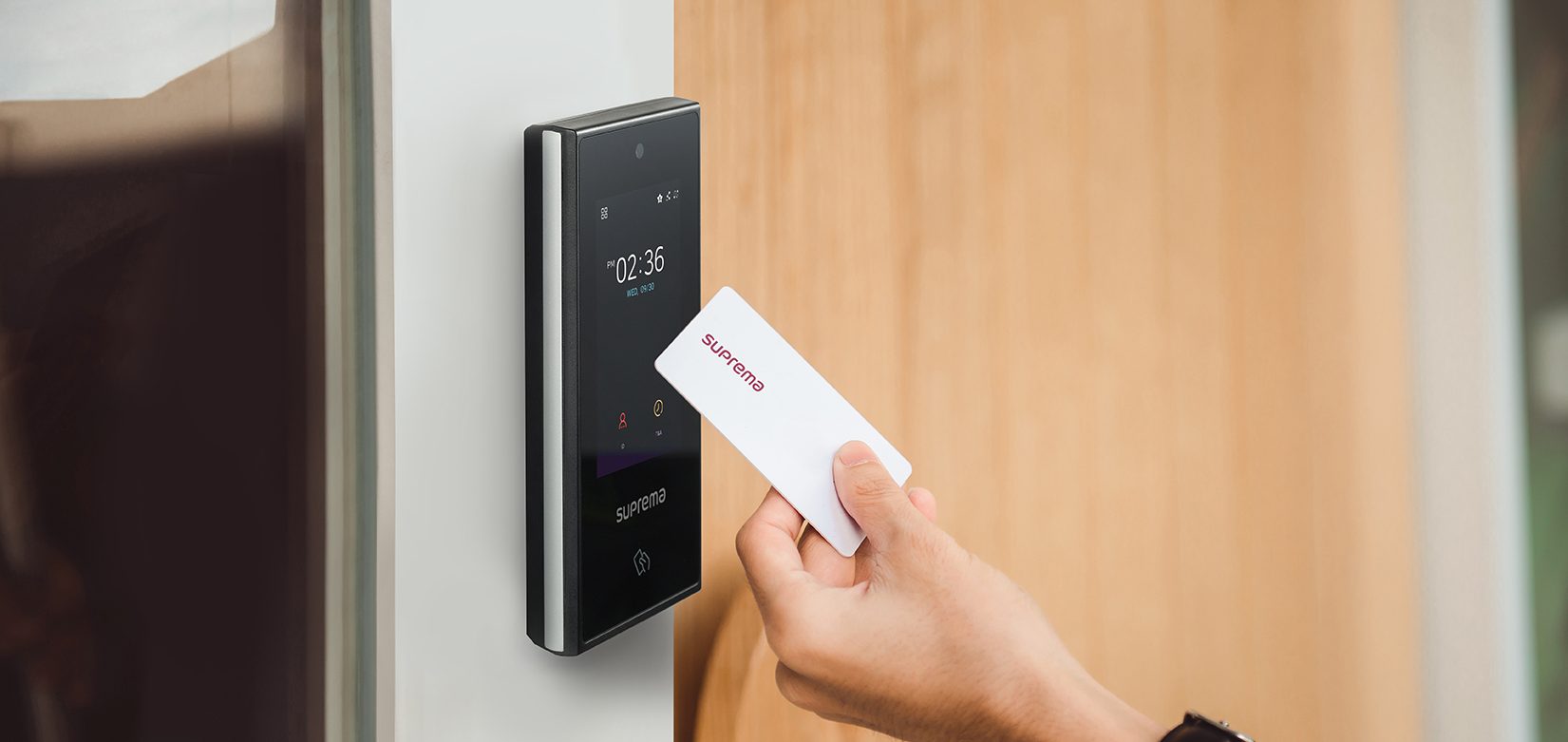

Specifications (Model:XS2-DPB, XS2-APB)

Credential

• RF Option
  • XS2-QDPB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus,DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa
  • XS2-QAPB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa, iCLASS SE/SR/Seos
• RF read range²⁾: MIFARE/DESFire/iCLASS/HID Prox/EM: 50 mm, Felica: 30 mm
• Mobile: NFC, BLE
• Scramble keypad (PIN): Supported
• QR/Barcode³⁾: Supported



General

• CPU: 1.5 GHz Quad Core
• Memory: 16 GB Flash + 1 GB RAM
• Crypto chip: Supported
• LCD type: 4″ IPS color LCD
• LCD resolution: 480 x 800
• Sound: 24 bit
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Camera type: CMOS 2M pixels
• Camera resolution: 1600 x 1200
• Dimension (W x H x D): 82 x 203 x 33.9 (mm)
• Weight
  • Device: 343 g
  • Bracket: 88 g (Including washer and bolt)
• IP rating: IP65
• Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE



Capacity

• Max. User: 500,000
• Max. Card: 500,000
• Max. Text Log: 5,000,000
• Max. Image Log: 50,000



Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Host or Slave (Selectable)
• Wiegand: 1 ch Input or Output (Selectable)
• TTL input: 2 ch Inputs
• Relay: 1 Relay
• USB: USB 2.0 (Host)
• PoE: Supported (IEEE 802.3af compliant)
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.8 A
  –
  • Voltage: 24 Vdc
  • Current: Max. 0.5 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
2) RF read range will vary depending on installation environment.
3) Supports QR/Barcodes composed of up to 32 ASCII code strings.
