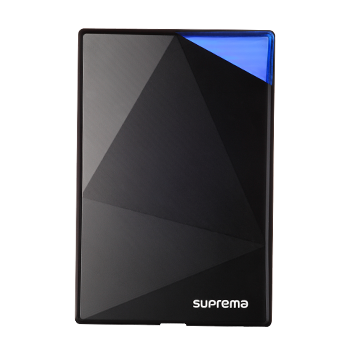

Suprema XPass S2
Intelligent IP Multi-smartcard Access Control Device
XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.
Specifications
Main
- IP Rating: IP65
- RF Card: XPS2M: 13.56MHz MIFARE, MIFARE Plus,
DESFire/EV1 (CSN), FeliCa,ISO14443A, ISO15693 - Multi-Controller: Supported
Capacity
- Max. User (1:1): 50,000
- Max. User (1:N): 50,000
- Max. Text Log: 100,000
Interface
- TCP/IP: Supported
- RS-485: 1 ch Host or Slave (Selectable)
- Wiegand: 1 ch In or Out (Selectable)
- TTL Input: 2 Inputs
- Relay: 1 Relay
Relay
- Voltage: Max.: 24 VDC
- Current: Typ. 0.5A, Max. 1.0A
Hardware
- CPU: 533 MHz DSP
- Memory: 16 MB RAM + 16 MB Flash
- LED: Multi-Color
- Sound: 16-bit Hi-Fi
- Operating Temp.: -35 °C ~ 65 °C
- Tamper: Supported
- Power
• Voltage: 12 Vdc
• Current: Max. 0.4 A - Dimensions (W x H x D): 80 x 120 x 11.4 (mm)
- Certification: CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE
