Suprema XPass2 Outdoor Compact RFID Device

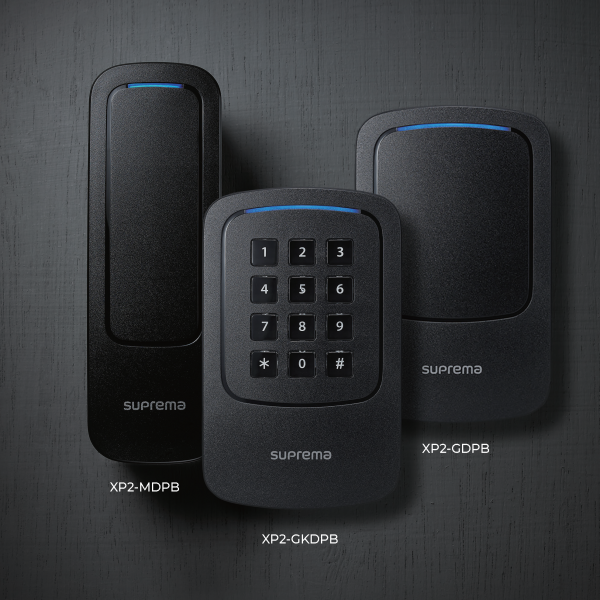

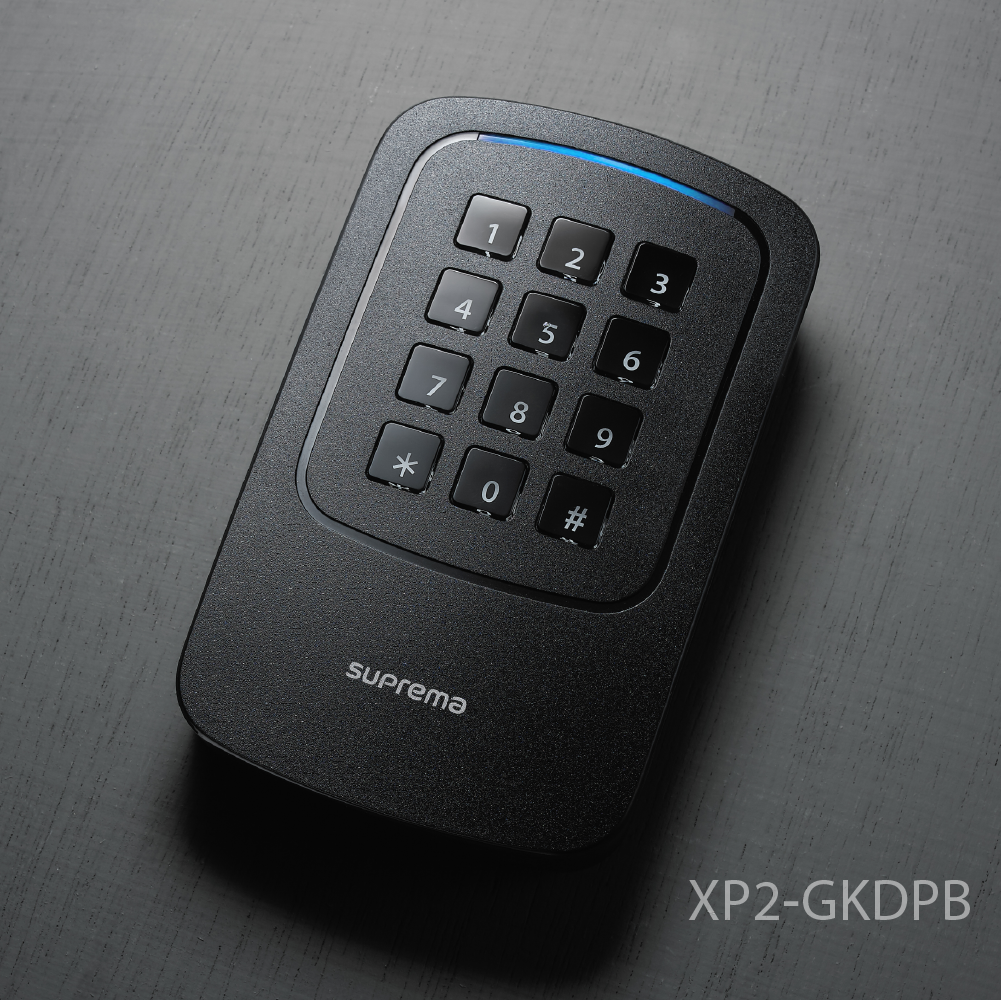

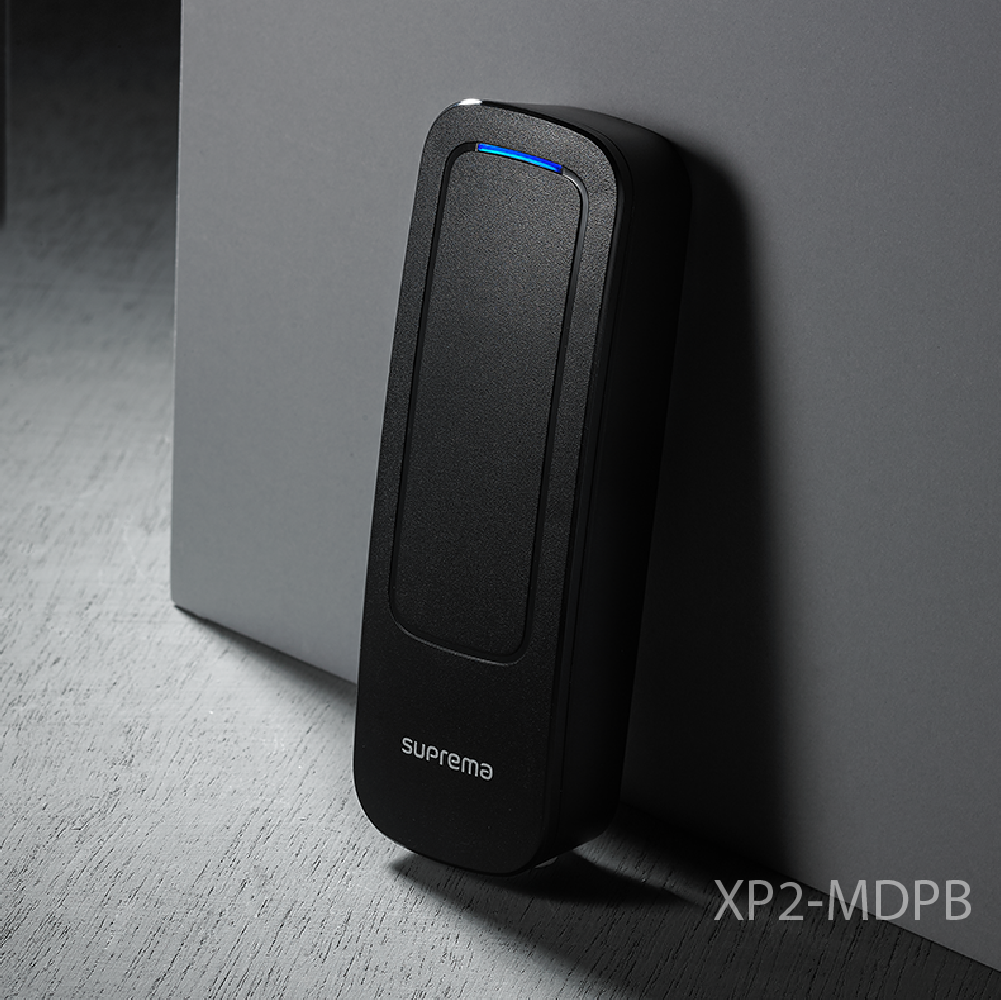

Model: XP2-MDPB, XP2-GDPB, XP2-GKDP

XPass 2 is an outdoor compact RFID device based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology, mullion-type, gangbox-type, and gangbox keypad-type are all supported which provides perfect installation in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environment and outdoor installation.



Specifications



Credential

• RF Option: 125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire,
  DESFire EV1/EV2/EV3¹⁾, FeliCa
• RF read range²⁾: MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm
• Mobile: NFC, BLE



General

• CPU: 1 GHz
• Memory: 4 GB Flash + 64 MB RAM
• Crypto chip: Supported
• LED: Multi-color
• Sound: Multi-tone Buzzer
• Operating temperature: -35 °C to 65 °C
  Storage temperature: -40 °C to 70 °C
• Operating humidity: 0 % to 95 %, non-condensing
• Storage humidity: 0 % to 95 %, non-condensing
• Dimension (W x H x D)
  • XP2-MDPB: 48 x 144.7 x 27 (mm)
  • XP2-GDPB: 80 x 130 x 25 (mm)
  • XP2-GKDPB: 80 x 130 x 25 (mm)
• Weight
  • Device
     – XP2-MDPB: 144 g
     – XP2-GDPB: 220 g
     – XP2-GKDPB: 235 g
  • Bracket
     – XP2-MDPB: 30 g (Including washer and bolt)
     – XP2-GDPB: 52 g (Including washer and bolt)
     – XP2-GKDPB: 52 g (Including washer and bolt)
• IP rating: IP65, IP67
• IK rating: IK08



Certificates

• XP2-MDPB, XP2-GDPB: CE, UKCA, KC, FCC, IC, RCM,
  BIS, SIG,RoHS, REACH, WEEE
• XP2-GKDPB: CE, UKCA, KC, FCC, IC, RCM, BIS, SIG,
  TELEC, RoHS, REACH, WEEE



Capacity

• Max. User: 200,000
• Max. Card: 200,000
• Max. Text Log: 1,000,000



Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Master or Slave (Selectable)
• Wiegand: 1 ch Input or Output (Selectable)
• TTL Input: 2 ch Input
• Relay: 1 Relay
• PoE: Supported (IEEE 802.3af compliant)
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.5 A
  • Voltage: 24 Vdc
  • Current: Max. 0.3 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input ports are pulled up with 4.7 kΩ.)
• Wiegand output VOH: Min.: 4.8 V
• Wiegand output VOL: Max.: 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with XPass 2.
2) RF read range will vary depending on the installation environment.
