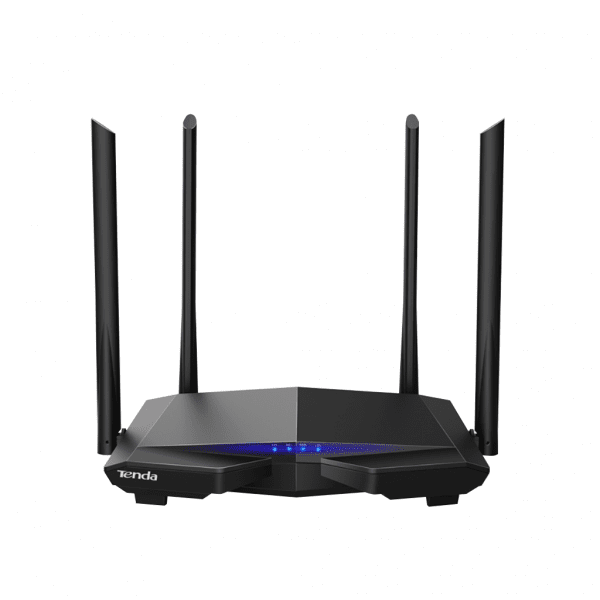

Tenda AC6 v5.0
AC1200 Smart Dual-band WiFi Router
Features
- 5th Generation WiFi: 802.11ac with Dual-band Connectivity
- High-powered amplifiers
- 28nm CPU for stability
- Innovative MU-MIMO technology
- Beamforming+ for wider WiFi coverage and internet stability
- Hassle-free configuration
Specifications
| Hardware | |
| Standard & Protocol | IEEE802.3, IEEE802.3u |
| CPU | 600MHz |
| RAM | 32MB |
| Interface | 1*10/100Mbps WAN port 3*10/100Mbps LAN ports |
| Antenna | 4*6dBi external antennas |
| Button | 1* Wi-Fi / Reset button |
| Power | Input：100-240V—50/60Hz 0.4A Output：DC 9V1A |
| LED indicator | Sys*1,WiFi*1, WAN*1, LAN*1 |
| Dimensions | 220mm*141.5mm*49mm(L*W*H) |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/a/n @5GHz IEEE 802.11b/g/n @2.4GHz |
| Data Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Frequency | CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5250MHz(CH36-CH64) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5250MHz(CH36-CH64) 5725-5825MHz(CH149-CH165) |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Wireless Security | WPA2-PSK Wireless Security : Enable /Disable |
| Other Features | |
| Temperature | Operating Temperature : 0℃~40℃ Storage Temperature : -40C ~70℃ |
| Operating Humidity | Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing |
