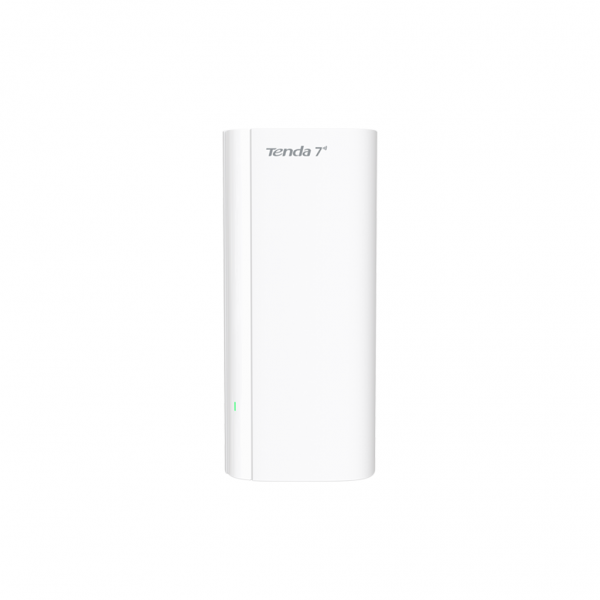

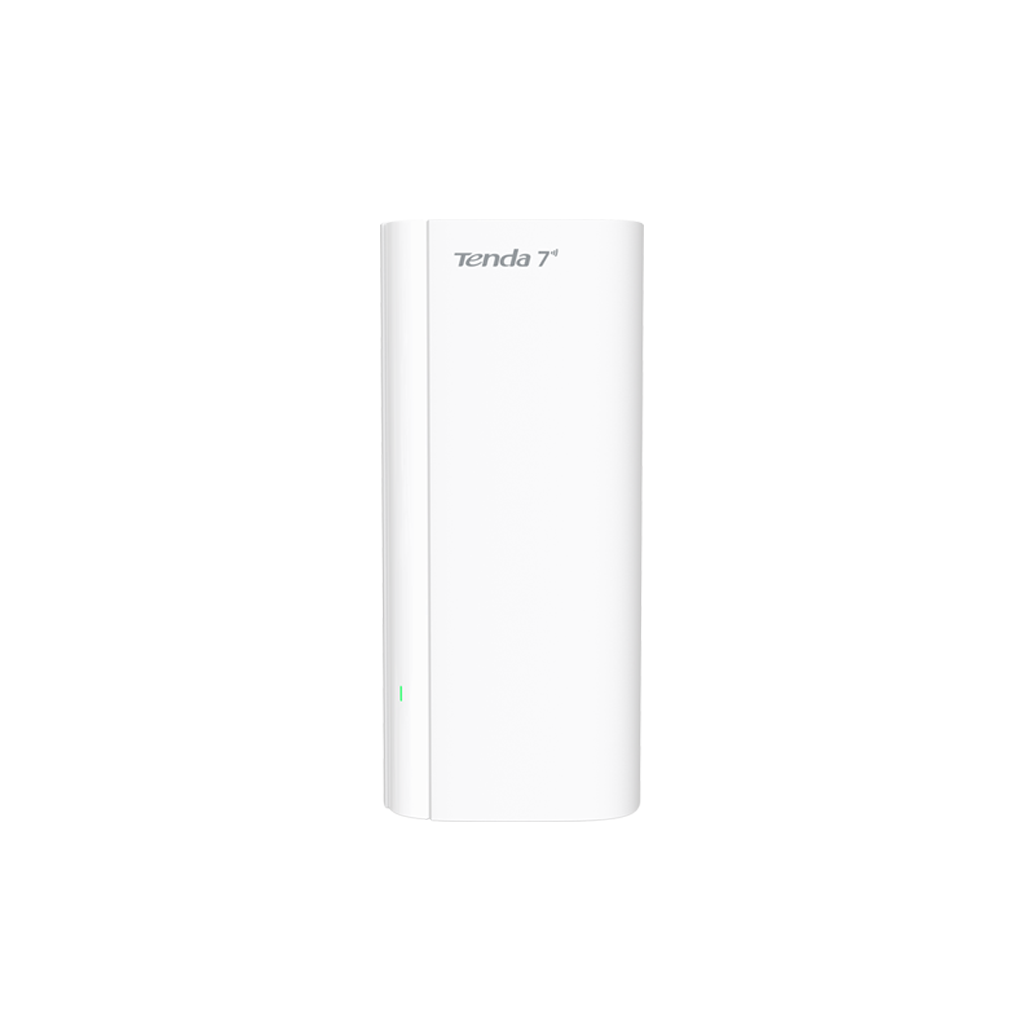

Tenda EE6 Pro
BE5100 Whole Home Mesh Wi-Fi7 System
Features
- 2.5G Ethernet port
- Innovative intelligent five-antenna
- 6nm advanced process chip
- Millisecond-level AI seamless roaming
- Wireless access binding
- AI automatic networking
- One-Touch Wi-Fi Connection with NFC
- Easier to use and more secure VPN
- APP control access devices
Specifications
| Hardware Features | |
| Standard&Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab |
| CPU | Dual-Core 1GHz CPU |
| RAM | 512MB |
| Interface | 1*2.5GE Port, 2*GE Ports per node |
| Antenna | 5*3dBi Internalantennas |
| Button | 1x MeshButton, 1x Reset Button |
| Power | Input: AC 100-240V, 50/60Hz Output: DC 12V⎓2A |
| LED indicator | 1x Tri-color LED Indicator(Green, Yellow, Red) |
| Dimensions | 86*86*190mm(3.39*3.39*7.48 in) |
| Wireless Features | |
| Wireless Standards | 5 GHz: IEEE 802.11be/ax/ac/n/a 2.4 GHz: IEEE 802.11be/ax/n/b/g |
| Data Rate | 5 GHz: 4323 Mbps (802.11be) 2.4 GHz: 688 Mbps (802.11be) |
| Frequency | 2.4G & 5G |
| Transmission Power | CE: <20 dBm(2.4GHz) <23 dBm(5GHz) FCC: <30 dBm(2.4GHz) <30 dBm(5GHz) |
| Basic Functions | Beamforming MU-MIMO AP Steering Band Steering OFDMA 4K-QAM |
| Wireless Security | WPA2-PSK WPA3-SAE/WPA2-PSK |
| Other Features | |
| Temperature | Operating Temperature : 0℃~40℃ Storage Temperature : -40C ~70℃ |
| Humidity | Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing |
| Package Content | BE5100 Mesh*3 Power Adapters *3 Quick Installation Guide *1 Ethernet Cable *1 NFC Sticker*1 |
