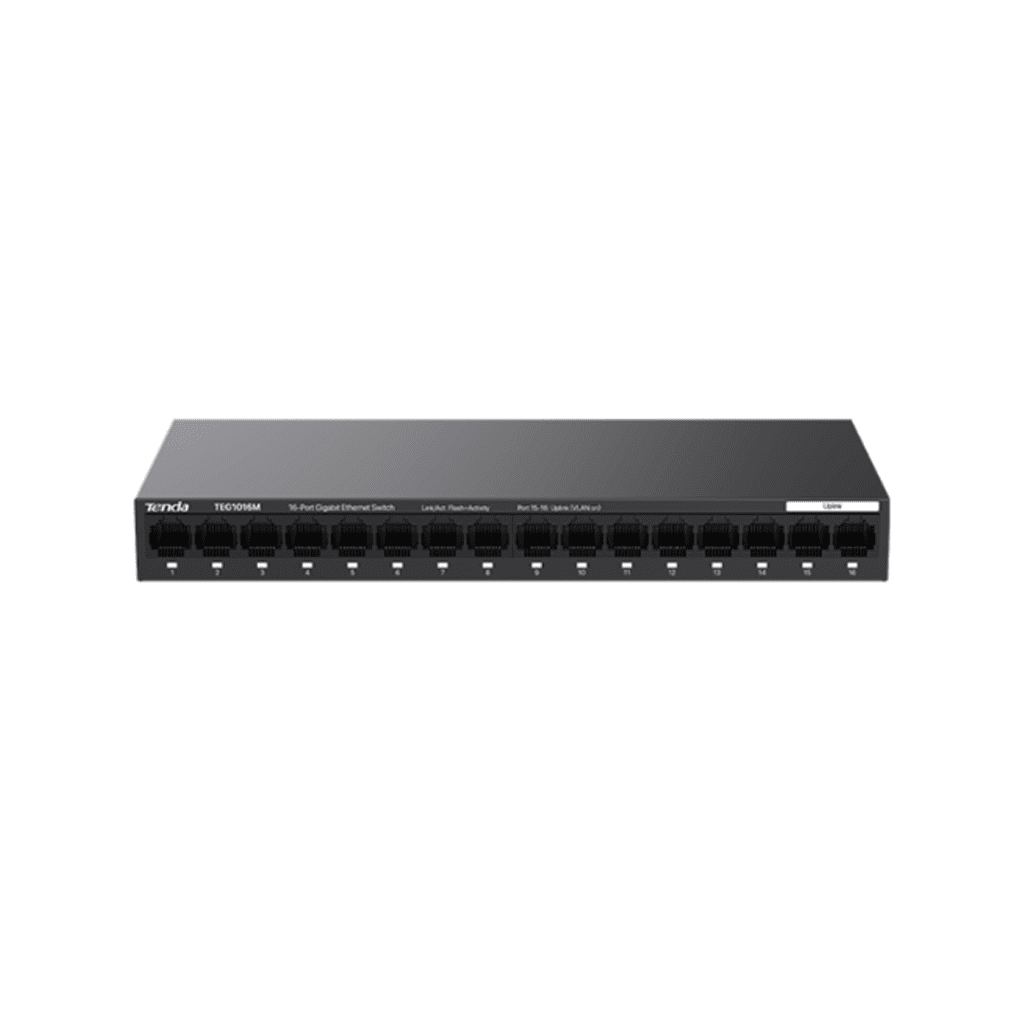

Tenda TEG1016M v2.1
16-Port Gigabit Ethernet Switch
Features
- All Gigabit Speed, Enjoy High-Speed Networking
- Stable Transmission, Safe And Reliable, Suitable For Small & Micro Office/Home Network
- American Chip, High Performance Guarantee
- Mini Steel Shell, Wall-mount Design, Plug & Play
- 6kV Ports Lightning Protection, Stable Operation
- The Hidden-soft-light LEDs Will Not Distract You
Specifications
| Hardware | |
| Network standards | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab |
| LED Indicator | One Link/Act LED indicator for each Gigabit port One Power LED indicator for each device |
| Interfaces | 16*10/100/1000Base-T Ethernet ports |
| Transmission media | Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Dimension | 235mmx103mmx27mm |
| Material | Metal |
| Level of protection | Lightning protection for port: 6 kV Lightning protection for power: N/A Electrostatic protection: -Air discharge: ±8 kV -Contact discharge: ±6 kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 32Gbps |
| Forwarding rate | 23.8Mpps |
| Buffer | 2Mb |
| MAC address table | 8K |
| Power method | Input: 100 – 240V AC 50/60Hz, 0.4A Output: 12V 1A |
| Power consumption | Max: <12 W |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C – 40℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
