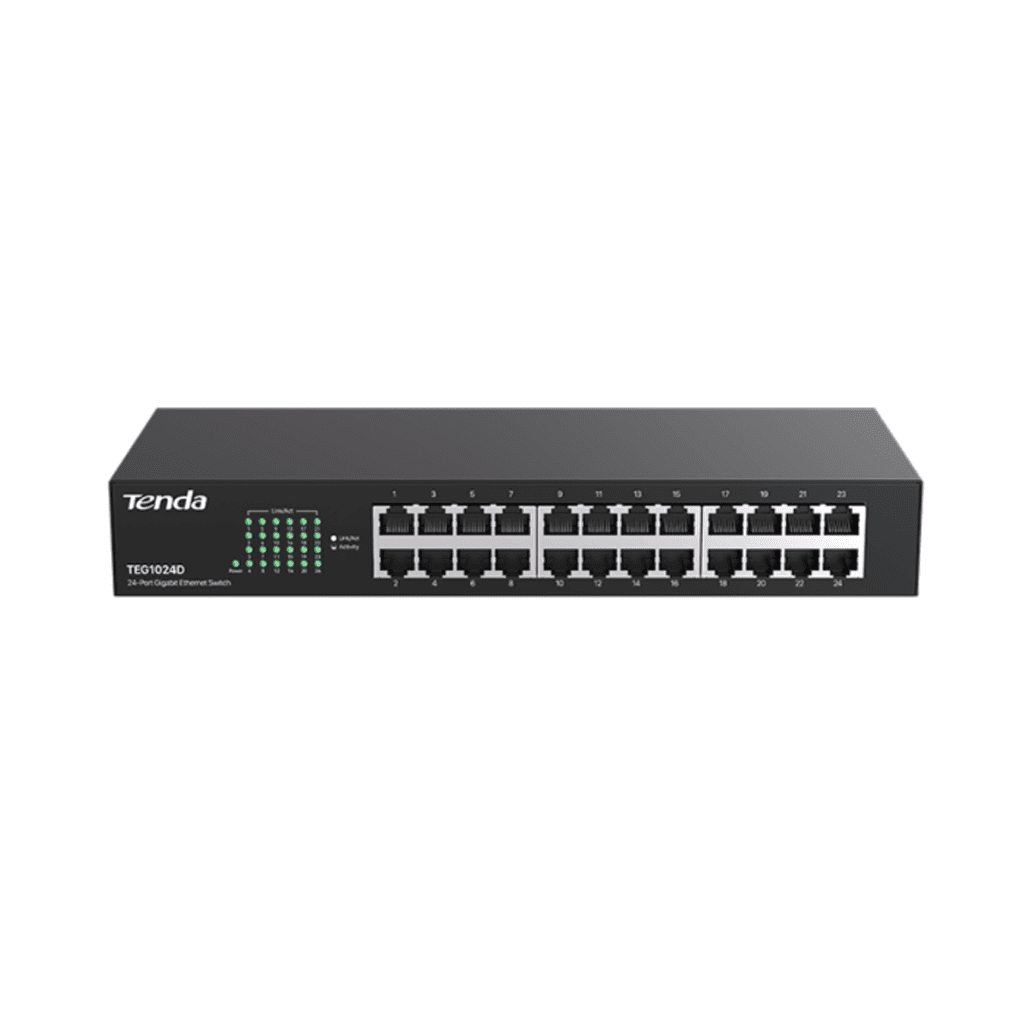

Tenda TEG1024D v9.0
24-Port Gigabit Ethernet Switch
Features
- Gigabit ports, high-speed network
- High-performance Chip Achieve True Stability
- Plug And Play, Make Networking Easier
- 6KV port lightning protection to ensure stable operation
Specifications
| Hardware | |
| Network standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab |
| LED Indicator | Power Link/Act |
| Interfaces | (24) 1GE RJ45 ports |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 294mm*120mm*44mm |
| Material | Metal |
| Level of protection | Port: 6 KV Power：4 KV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 48Gbps |
| Forwarding rate | 35.7Mpps |
| Buffer | 4Mb |
| MAC address table | 8K |
| Power method | 100-240V AC 50/60Hz |
| Power consumption | Max:<12W |
| Mounting | Rack mounting Desktop mounting Wall mounting |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
