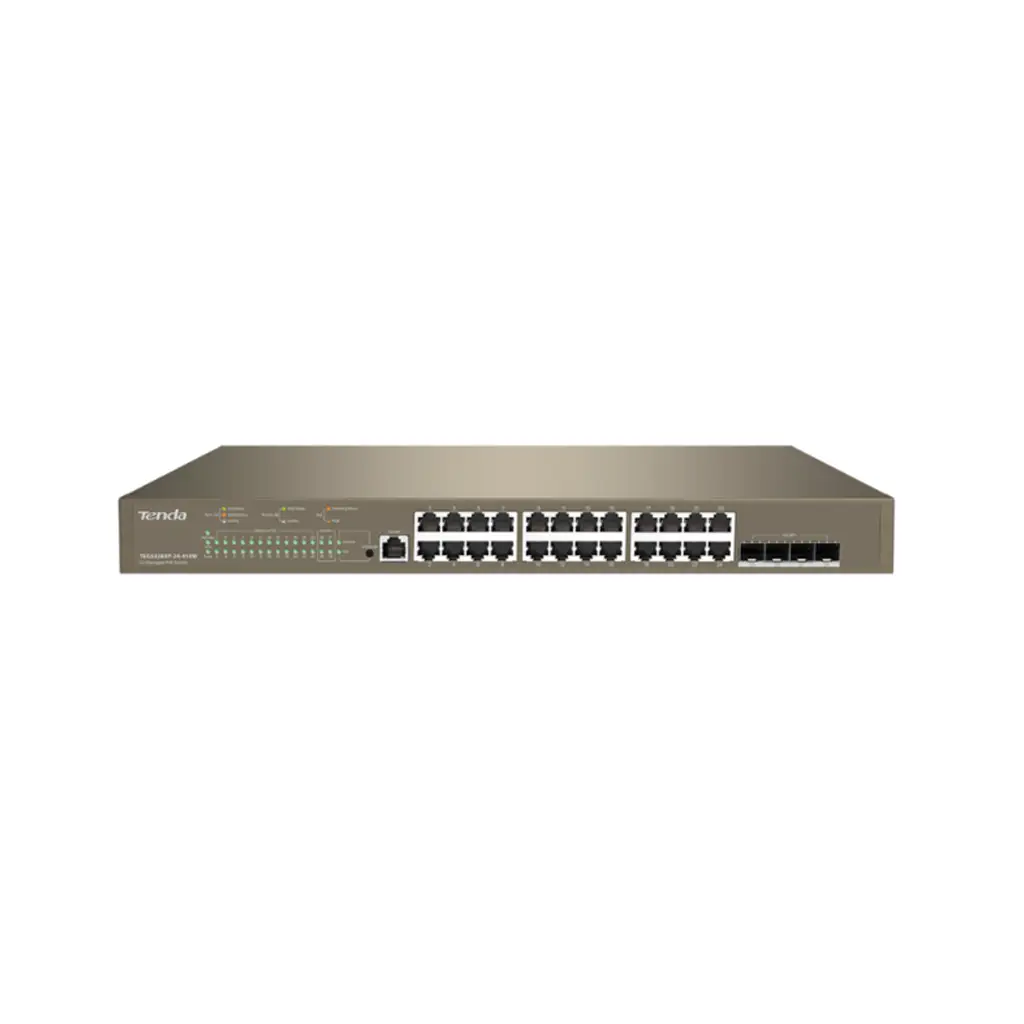

Tenda TEG5328XP-24-410W
L3 Managed PoE Switch With 4-Port 10G SFP+
Features
- Layer-3 routing engine, high-efficiency fast forwarding
- 370W Smart PoE supply, 2 times load capacity
- Flexible QoS, precise traffic control
- Supports layer 2 and layer 3 ACL, for more secure access
- Multiple attack defenses, multiple securit blessings
Specifications
| Hardware | |
| Network standards | IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s |
| LED Indicator | Power Link/Act PoE MAX System |
| Interfaces | (24) 1GE RJ45 ports (4) 10GE SFP+ ports (1) RJ45 Console port |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | 2 |
| Level of protection | Port: 6 KV Power：6 KV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 128Gbps |
| Packet forwarding rate | 95.2Mpps |
| Buffer | 12M |
| MAC address table | 16K |
| PoE power supply management | PoE port configuration and power supply with priority PoE over-temperature protection PoE scheduled management Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 370W |
| Input voltage | 410W |
| Power consumption | 100-240V AC，50 / 60Hz |
| Dimension | 440mm*284mm*44mm |
| Mounting | Rack mounting : support Desktop mounting: support Wall mounting: support |
| Energy Efficient | Support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
