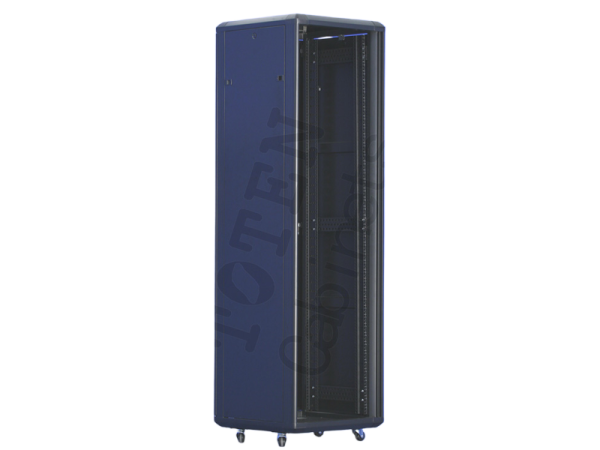

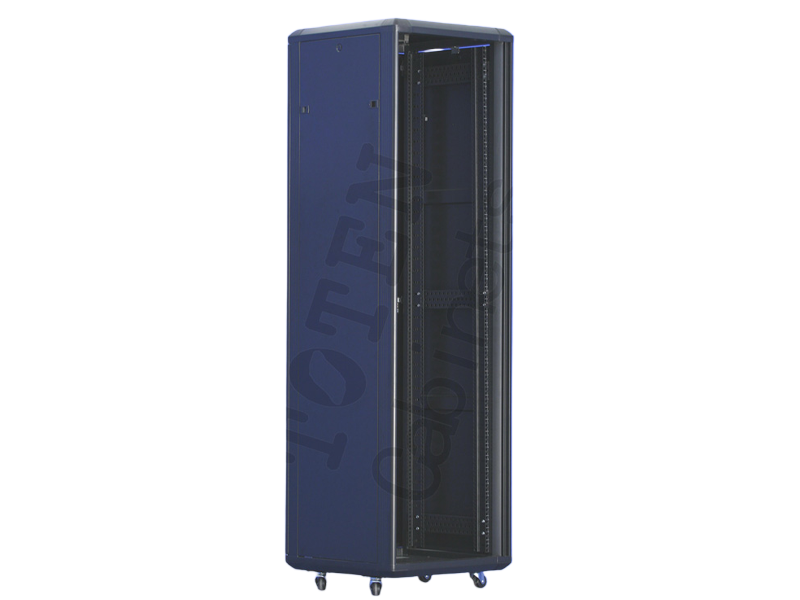

TOTEN-BA

Radio and Television Cabinet

TOTEN-BA 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

The exterior design is noble and elegant, with exquisite craftsmanship and precise dimensions, exuding a strong sense of the times and adding value to your project; No front door, easy to use, suitable for small computer rooms.

規格

Standard

Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7 standard

Features

Aluminum profile frame, lightweight and compact structure;

Fully assembled structure, quick assembly (patent); Significant (50%) savings in transportation and storage costs;

Internal adjustment support legs;

Both the top and bottom of the cabinet are equipped with dust-proof wiring holes, and the size of the wiring holes can be adjusted as needed;

High density mesh rear door, with a ventilation rate of over 55%, provides a comprehensive solution to the requirements of mechanical protection, ventilation and heat dissipation, and external observation of machine operation status;

Moonlight spinning cabinet door lock;

High universality of accessories;

The volume of individual packaging is only about one-third of the total container volume.

Load capacity: Static load of 800KG

Protection level: IP20

Main materials: frame: aluminum alloy profiles;

Others: SPCC high-quality cold-rolled steel plate, thickness: square hole strip 2.0mm, installation beam 1.5mm, others 1.2mm.

Surface treatment: degreasing, acid washing, phosphating, electrostatic spraying

Order Code	Capacity (U)	Width (mm)	Depth (mm)	Height (mm)	Packaging size (WDH)	Volume (CBM)
BA.6618.90■	18	600	600	930	575575125+893.1680110+1003.1680220	0.1756
BA.6818.90■	18	600	800	930	575775125+893.1680110+1003.1880220	0.1980
BA.6918.90■	18	600	900	930	575875125+893.1680110+1003.1980220	0.2093
BA.6018.90■	18	600	1000	930	575975125+893.1680110+1003.11080220	0.2205
BA.6622.90■	22	600	600	1108	575575125+1070.9680110+1180.9680220	0.1967
BA.6822.90■	22	600	800	1108	575775125+1070.9680110+1180.9880220	0.2192
BA.6922.90■	22	600	900	1108	575875125+1070.9680110+1180.9980220	0.2304
BA.6022.90■	22	600	1000	1108	575975125+1070.9680110+1180.91080220	0.2416
BA.6627.90■	27	600	600	1330	575575125+1293.2680110+1403.2680220	0.2231
BA.6827.90■	27	600	800	1330	575775125+1293.2680110+1403.2880220	0.2456
BA.6927.90■	27	600	900	1330	575875125+1293.2680110+1403.2980220	0.2568
BA.6027.90■	27	600	1000	1330	575975125+1293.2680110+1403.21080220	0.2680
BA.6632.90■	32	600	600	1552	575575125+1515.4680110+1625.4680220	0.2495
BA.6832.90■	32	600	800	1552	575775125+1515.4680110+1625.4880220	0.2720
BA.6932.90■	32	600	900	1552	575875125+1515.4680110+1625.4980220	0.2832
BA.6032.90■	32	600	1000	1552	575975125+1515.4680110+1625.41080220	0.2944
BA.6637.90■	37	600	600	1775	575575125+1737.7680110+1847.7680220	0.2760
BA.6837.90■	37	600	800	1775	575775125+1737.7680110+1847.7880220	0.2994
BA.6937.90■	37	600	900	1775	575875125+1737.7680110+1847.7980220	0.3096
BA.6037.90■	37	600	1000	1775	575975125+1737.7680110+1847.71080220	0.3208
BA.6642.90■	42	600	600	1995	575575125+1959.9680110+2069.9680220	0.3024
BA.6842.90■	42	600	800	1995	575775125+1959.9680110+2069.9880220	0.3248
BA.6942.90■	42	600	900	1995	575875125+1959.9680110+2069.9980220	0.3360
BA.6042.90■	42	600	1000	1995	575975125+1959.9680110+2069.91080220	0.3472
BA.6647.90■	47	600	600	2217	575575125+2182.2680110+2292.2680220	0.3288
BA.6847.90■	47	600	800	2217	575775125+2182.2680110+2292.2880220	0.3512
BA.6947.90■	47	600	900	2217	575875125+2182.2680110+2292.2980220	0.3624
BA.6047.90■	47	600	1000	2217	575975125+2182.2680110+2292.21080220	0.3736
