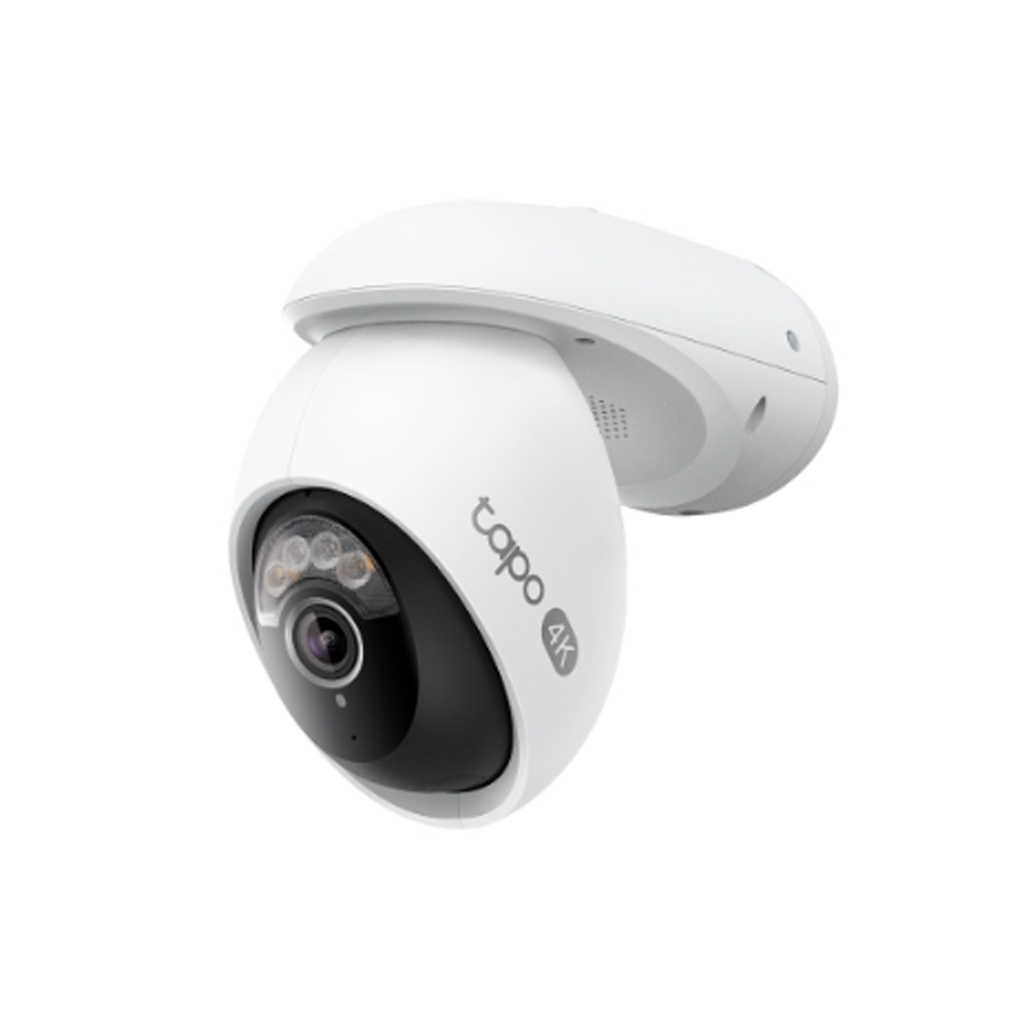

TP-Link Tapo C560WS
Outdoor Pan/Tilt Security Wi-Fi Camera
Features
- 4K Ultimate Clarity
- Local Facial Recognition
- Wi-Fi 6 Dual-Band Connection
- Starlight Color Night Vision
- Free Person/Pet/Vehicle Detection
- Flexible Storage Options
- IP66 Weatherproof
Specifications
| CAMERA | |
| Image Sensor | 1/27” Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4 mm ± 5% Aperture: F1.6 ± 5% Field of View: 105° (Diagonal), 88°(Horizontal), 45°(Vertical) |
| Motion Range | Pan Mechanical Range: 326° (360° Pan Coverage) Tilt Mechanical Range: 53° (98° Tilt Coverage) |
| Night Vision | 850 nm IR LED Starlight Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
| VIDEO & AUDIO | |
| Maximum Resolution | 4K 8MP (3840 × 2160 px) |
| Frame Rate | 25 fps |
| Digital Zoom | 18x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz |
| Ethernet Port | Yes |
| RTSP | Yes |
| ONVIF | Yes |
| SECURITY | |
| Security | SSL/TLS,AES |
| POWER | |
| Power Source | 12V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 12.0+ and Android 5.0+ operating systems |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ (-22°F~140°F) |
| Storage Temperature | -40℃~60℃ (-40°F~140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | 147.4 × 74.7 × 165.4mm（Mounting Bracket Included） 147.4 × 74.7 × 157.4mm（Mounting Bracket Excluded) |
