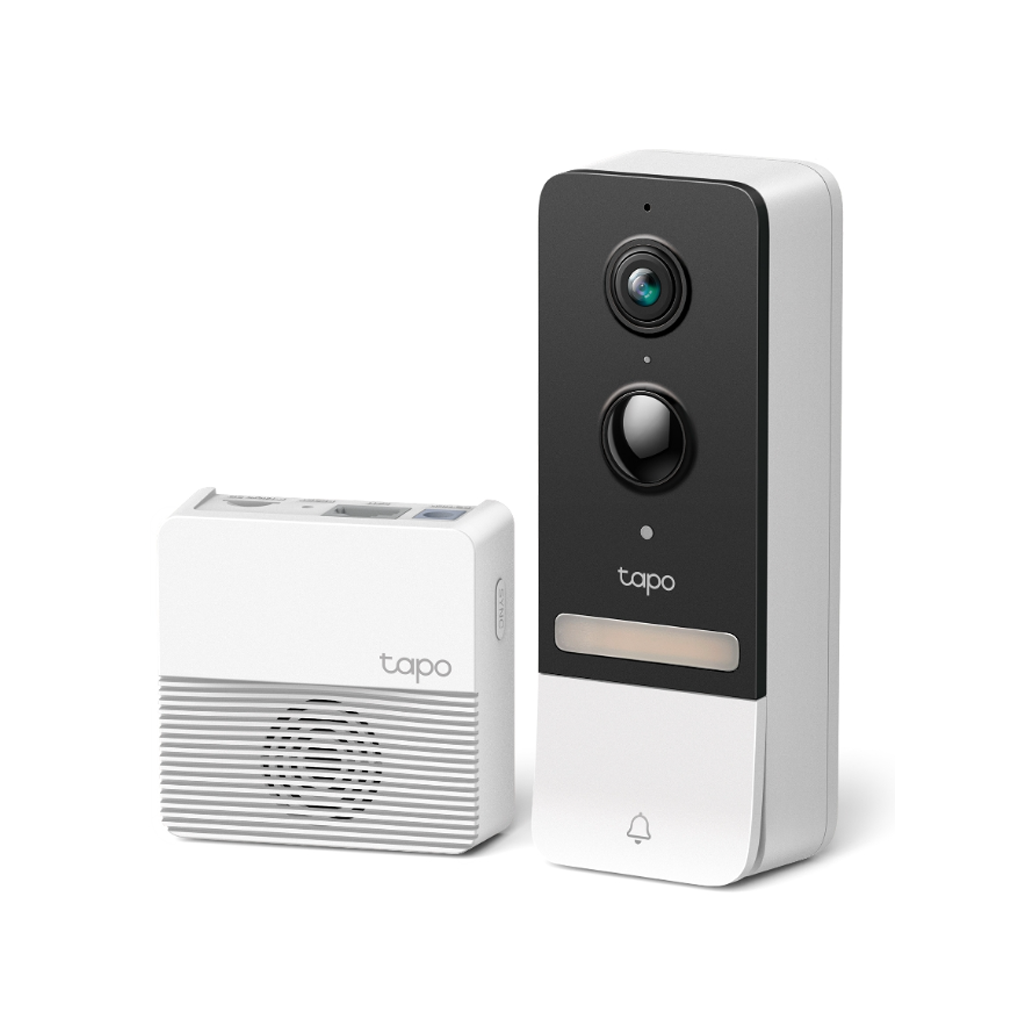

TP-Link Tapo D230S1
Tapo Smart Battery Video Doorbell
Features
- 2K 5MP Live View
- Color Night Vision
- Head-to-Toe View
- Flexible Placement, Flexible Views
- Longer Battery Life
- Smart AI Detection and Notification
- Multiple Ways to Answer
- Flexible Storage Choice
- Anti-theft Alarm
- Water & Dust Resistant IP64
Specifications
| CAMERA | |
| Image Sensor | 1/2.7“ |
| Lens | F/NO: 2.1 |
| Night Vision | 850 nm IR LED up to 25 ft |
| Lighting | Built-in Spotlights |
| Interface & Button | 1× RESET Button 1× Doorbell Button 1× Anti-Theft Button |
| Hub Compatibility | Compatible with H200 (Included) |
| Weatherproof Rating | IP64 |
| Viewing Angle | 160° Diagonal |
| Resolution | 2K 5MP (2560 × 1920px) |
| HUB | |
| Device Compatibility | Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. |
| Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512 GB) 1x SYNC Button |
| VIDEO & AUDIO | |
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
| Frame Rate | 15 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
| Local Storage | MicroSD Card Slot on Hub (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| VIDEO | |
| Frame Rate | 15 fps |
| Video Streaming | 2K 5MP |
| Video Compression | H.264 |
| Audio Compression | G.711 |
| DETECTION and NOTIFICATIONS | |
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| AUDIO | |
| Audio Communication | 2-way audio |
| Audio Input & Output | Built-in microphone and speaker |
| NETWORK | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Sub-1G, 868MHz (Used for local connection between doorbell and hub) |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
| Wireless Security | WPA/WPA2-PSK |
| Standards and Protocols | IEEE 802.11b/g/n, 2.4 GHz |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4 GHz |
| SECURITY | |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
| Power Source | Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery Hub: 9V DC Power Adapter |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
| Output Voltage | Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection |
| Output Notification | Notification,Snapshot(Tapo Care),Clips(Tapo Care) |
| HARDWARE | |
| Button | Doorbell Button: Reset/SYNC/Anit-Theft Button Hub Button: Reset Button; SYNC Button |
| Indicator LED | Doorbell Indicator LED: System LED Hub Indicator LED: System LED |
| Adapter Input | Doorbell Adapter Input: 100-240V, 50/60Hz Hub Adapter Input: 100-240V, 50/60Hz, 0.3A |
| Adapter Output | Doorbell Adapter Output: 5.0V, 1.0A Hub Adapter Output: 9.0V, 0.85A |
| Product Dimensions (W x D x H) | Camera Dimensions (Lx W x H): 5.7*0.21*1.3in (146*54.5*35.5mm) Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP64 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a Wall Mount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm) Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |
| ENVIRONMENT | |
| Operating Temperature | -20℃~45℃(-4°F ~113 °F ) |
| Storage Temperature | -20℃~45℃(-4°F ~113 °F ) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 5%~90%RH, Non-condensing |
