UACC-OM-QSFP28-LR4
100G LR4 Single-Mode Optical Module
UACC-OM-QSFP28-LR4 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。

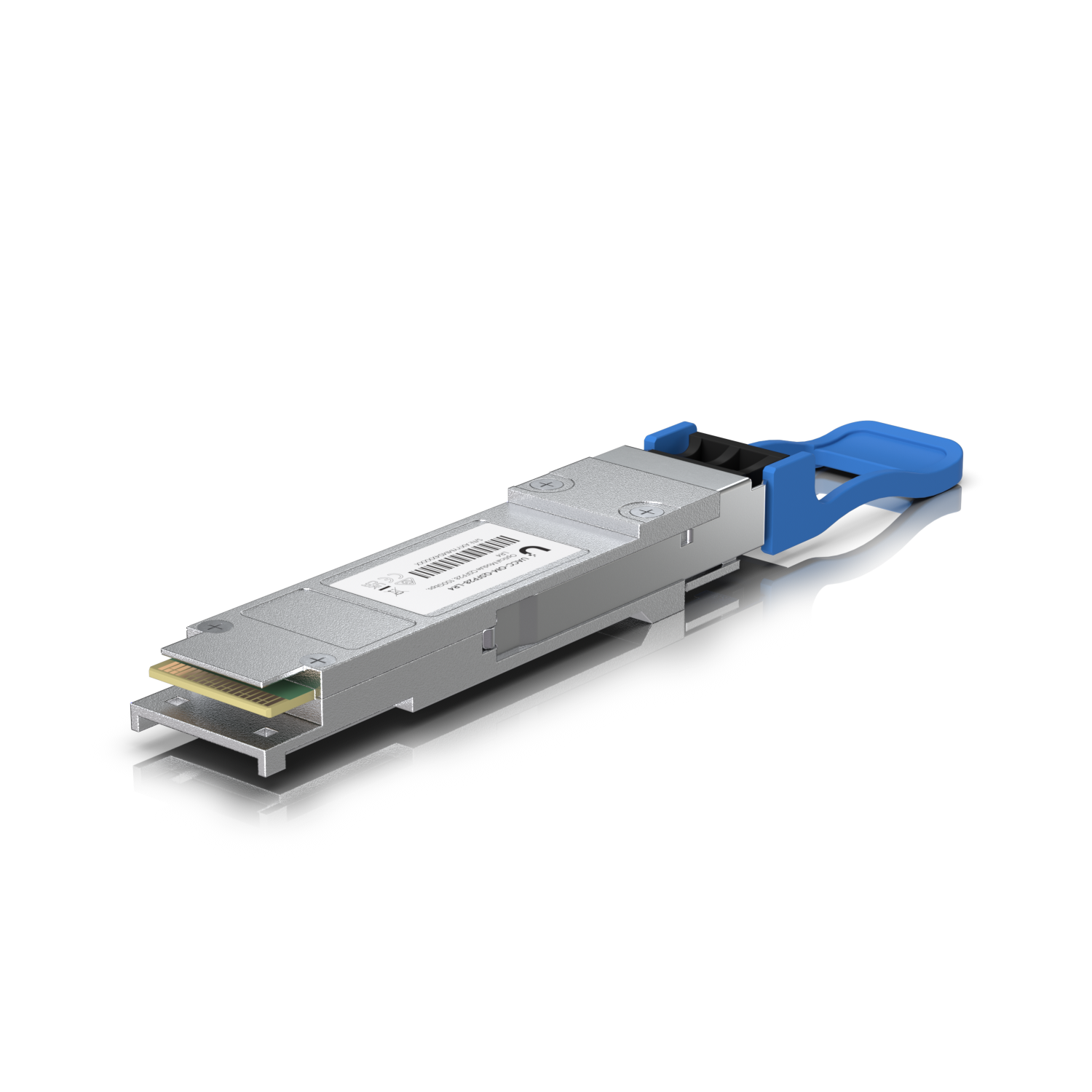

QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
功能重點
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- Duplex LC UPC connector
- Supports single-mode fiber connections up to 10 km*
- *Fiber cable is not included.
規格
Overview
| Form Factor | QSFP28 |
|---|---|
| Connector | Duplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1295 / 1300 / 1304 / 1309 nm |
| RX Wavelength | 1295 / 1300 / 1304 / 1309 nm |
| Supported Data Rate | 100 Gbps |
| Supported Cable Distance | 10 km (6.2 mi) |
| Max. Power Consumption | 4 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014; Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
