描述

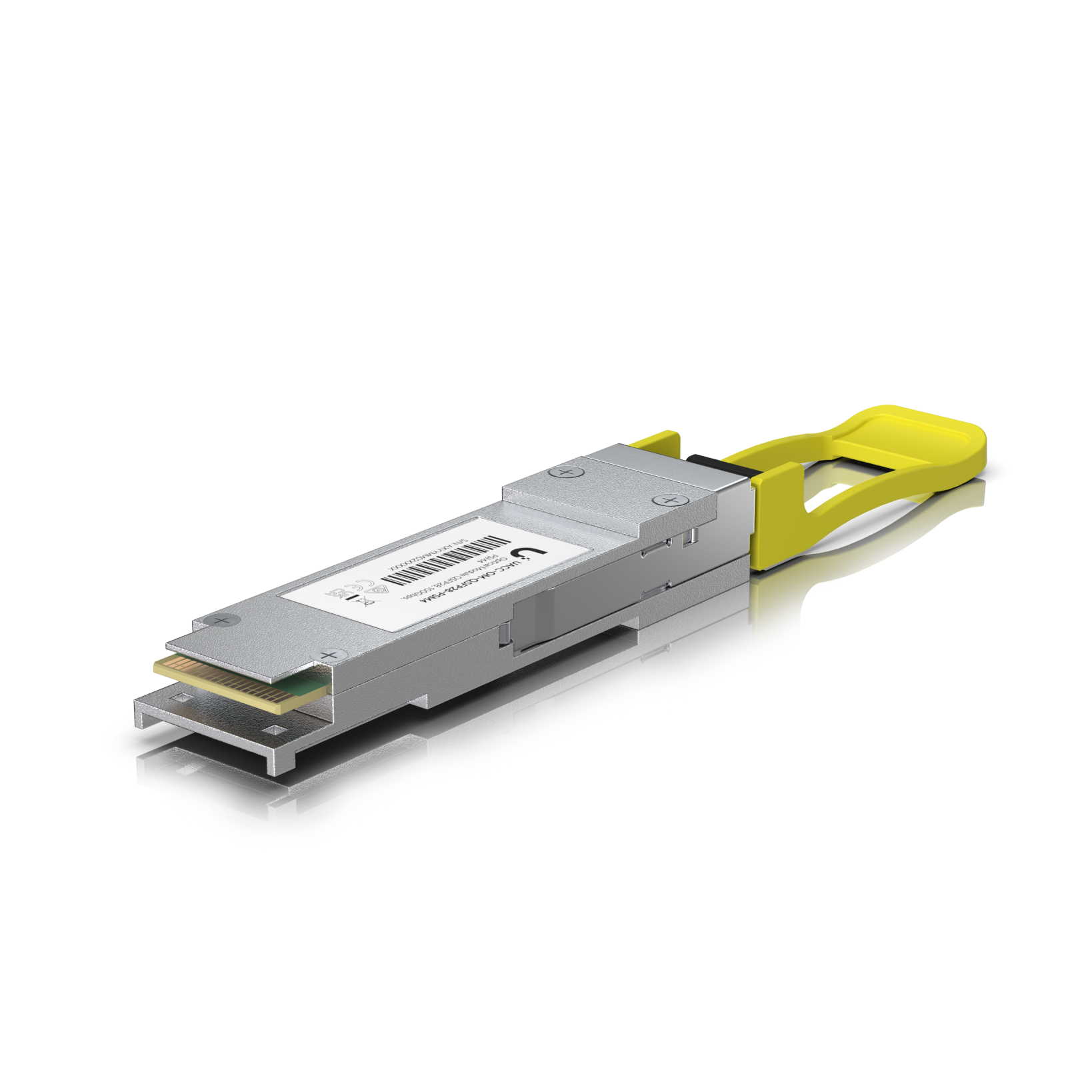

UACC-OM-QSFP28-PSM4
100G PSM4 Single-Mode Optical Module
UACC-OM-QSFP28-PSM4 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.
功能重點
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B APC connector
- Supports single-mode fiber connections up to 2 km*
- *Requires OS2 single-mode fiber. Transmission distance is limited to 500 m with OS1 single-mode fiber. Fiber cable is not included.
規格
Overview
| Form Factor | QSFP28 |
|---|---|
| Connector | MPO-12 Type B APC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Supported Data Rate | 100 Gbps |
| Supported Cable Distance | 2 km (1.2 mi) |
| Max. Power Consumption | 3.5 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014; Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
