描述

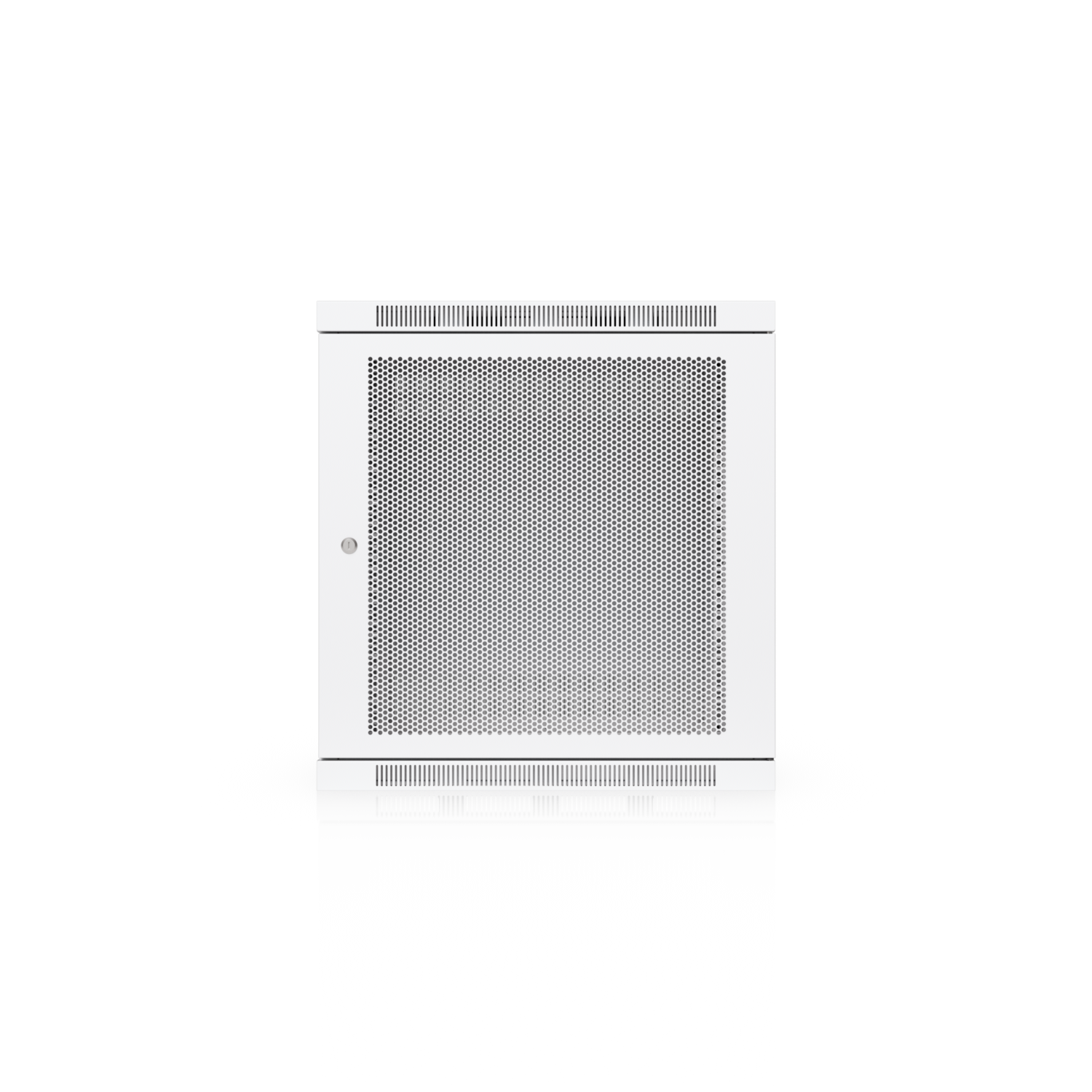

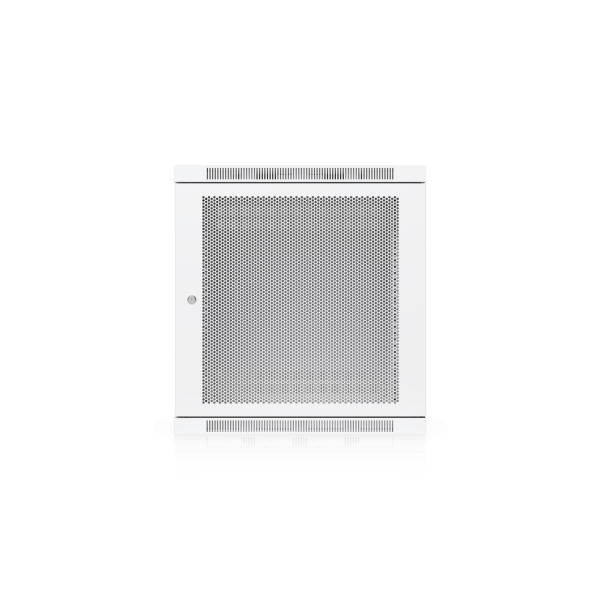

UACC-Rack-12U-Wall-600-P
12U Rack Cabinet, 600 mm, Perforated Door
UACC-Rack-12U-Wall-600-P 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.
Shipping note: Due to the product’s size and weight, delivery may be restricted for certain residential addresses. This rack ships fully assembled and may require additional handling and processing time before shipment.
規格
Overview
| Dimensions | Packaging: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9"); Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2") |
|---|---|
| Weight | Packaging: 31.8 kg (70.1 lb); Rack: 26.4 kg (58.2 lb) |
| Enclosure Material | SPCC steel; Door/side panels: 1.2 mm (0.05"); Main body: 1.2 mm (0.05"); Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height | 12U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | Default 448 mm (17.6"); Max. 508 mm (20"); Adjustable pitch 20 mm (0.8") |
| Max. Weight Capacity | 80 kg (176 lb) |
| Front Door | Perforated; Default left-hand outswing, reversible |
| Side Panels | (2) Solid, removable and lockable |
| Mounting | Wall mount |
| Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9"); (1) Top: 336.5 x 52.5 mm (13.2 x 2.1"); (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Security | (1) Front door lock; (4) Side panel locks; (2) Keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
