描述

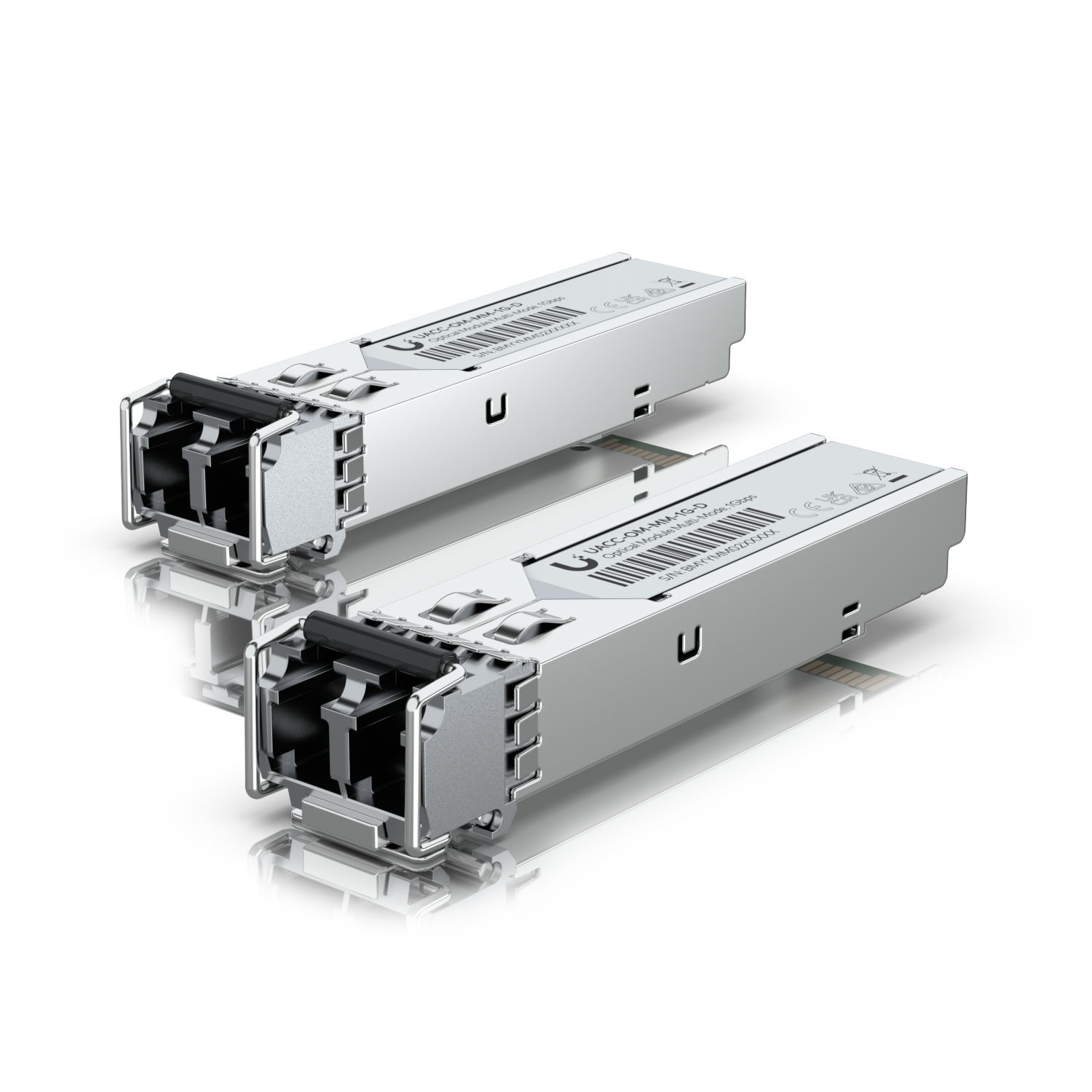

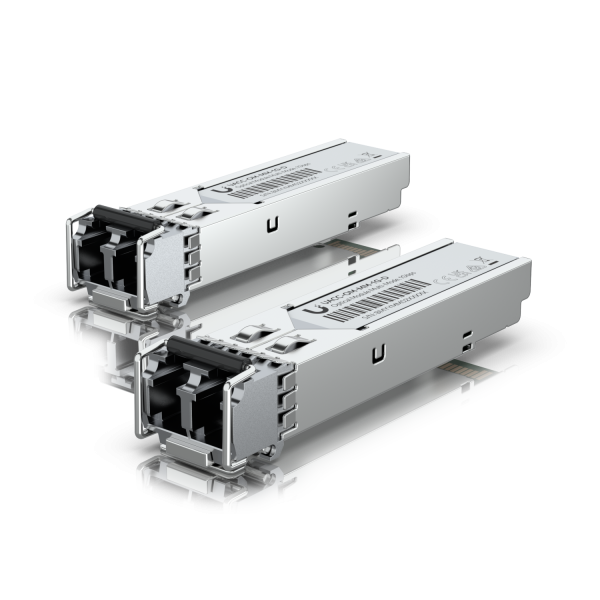

UACC-OM-MM-1G-D
1G Multi-Mode Optical Module
UACC-OM-MM-1G-D 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
功能重點
- Max data rate: 1 Gbps
- Compatible with SFP interfaces
- Duplex LC UPC connector
- Supports multi-mode fiber connections up to 550 m*
- *Fiber cable is not included.
規格
Overview
| Form Factor | SFP |
|---|---|
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 Gbps |
| Supported Cable Distance | 550 m (1,804 ft) |
| Max. Power Consumption | 0.66 W |
| Pack Options | Single Unit; 2-Pack; 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014; Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
