描述

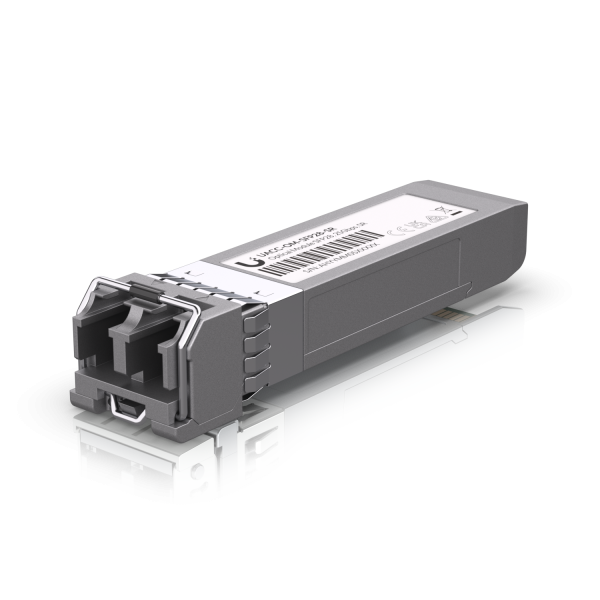

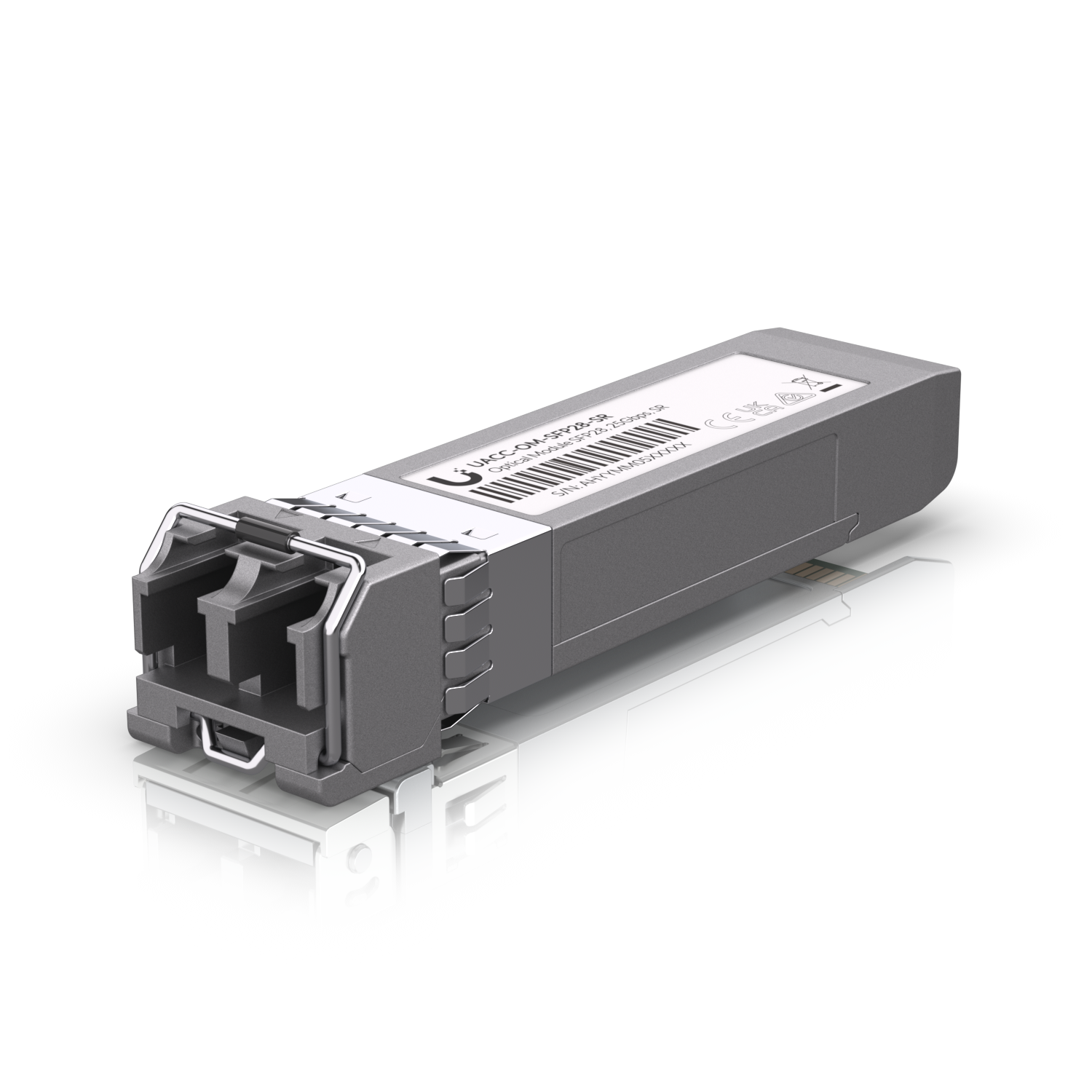

UACC-OM-SFP28-SR
25G Multi-Mode Optical Module
UACC-OM-SFP28-SR 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
SFP28 transceiver that supports 25G connections up to 100 m using multi-mode fiber with a duplex LC UPC connector.
功能重點
- Max data rate: 25 Gbps
- Compatible with SFP28, SFP+, and SFP interfaces
- Duplex LC UPC connector
- Supports multi-mode fiber connections up to 100 m*
- *Up to 100 m with OM4 and 70 m with OM3. Fiber cable is not included.
規格
Overview
| Form Factor | SFP28 |
|---|---|
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 / 10 / 25 Gbps |
| Supported Cable Distance | OM4 – 100 m (328 ft); OM3 – 70 m (229 ft) |
| Max. Power Consumption | 0.8 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014; Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
