描述

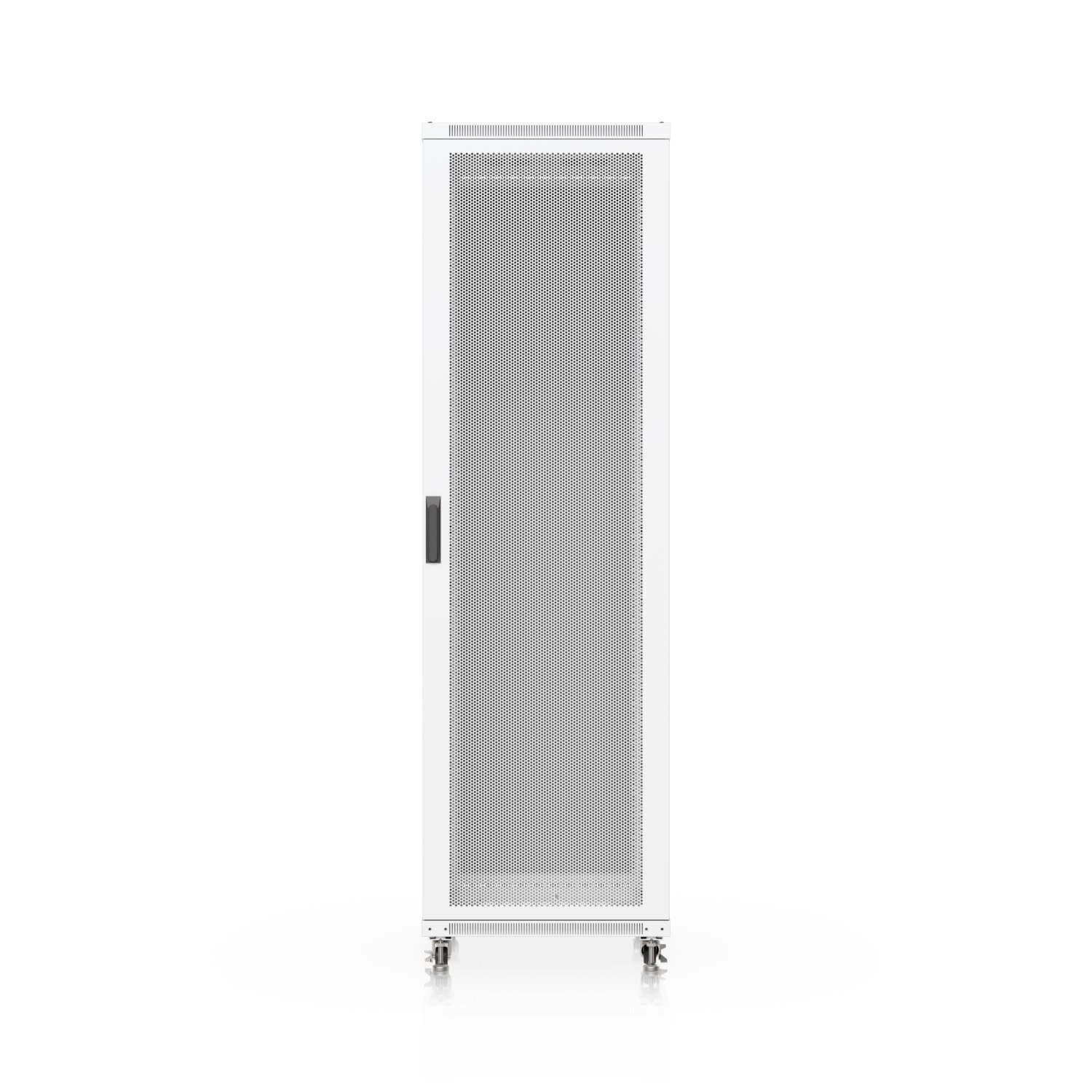

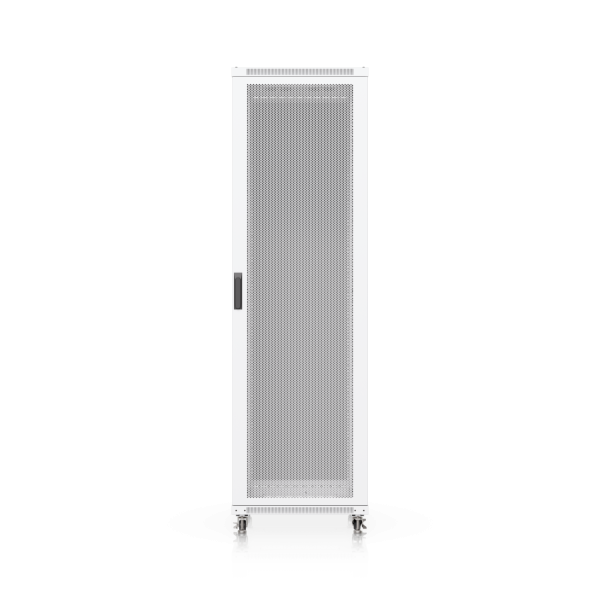

UACC-Rack-42U-800-P
42U Rack Cabinet, 800 mm, Perforated Door
UACC-Rack-42U-800-P 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Fully assembled floor rack with built-in fans, removable panels, and lockable casters, engineered for optimal airflow, heavy-duty stability, and easy equipment access.
Shipping note: Due to the product’s size and weight, delivery may be restricted for certain residential addresses. This rack ships fully assembled and may require additional handling and processing time before shipment. Delivery is door-to-door and will not be delivered inside.
規格
Overview
| Dimensions | Packaging: 740 x 965 x 2,223 mm (29.1 x 38 x 87.5"); Rack with caster: 600 x 800 x 2,050 mm (23.6 x 31.5 x 80.7"); Rack without caster: 600 x 800 x 1,966 mm (23.6 x 31.5 x 77.4") |
|---|---|
| Weight | Packaging: 110.4 kg (243.4 lb); Rack: 84.6 kg (186.5 lb) |
| Enclosure Material | SPCC steel; Door/side panels: 1.2 mm (0.05"); Main body: 1 mm (0.04"); Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height | 42U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | Default 607.2 mm (23.9"); Max. 682.2 mm (26.9"); Adjustable pitch 15 mm (0.6") |
| Max. Weight Capacity | Static 800 kg (1764 lb); Rolling 320 kg (705 lb) |
| Front Door | Perforated; Default left-hand outswing, reversible |
| Rear Door | Perforated; Default left-hand outswing, reversible |
| Side Panels | (4) Solid, removable and lockable |
| Mounting | Floor stand |
| Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Cable Entry Opening | (2) Top: 335 x 52.5 mm (13.2 x 2.1"); (2) Bottom: 335 x 52.5 mm (13.2 x 2.1") |
| Security | (1) Front door lock; (1) Rear door lock; (8) Side panel locks; (3) Keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
