描述
U7-Industrial

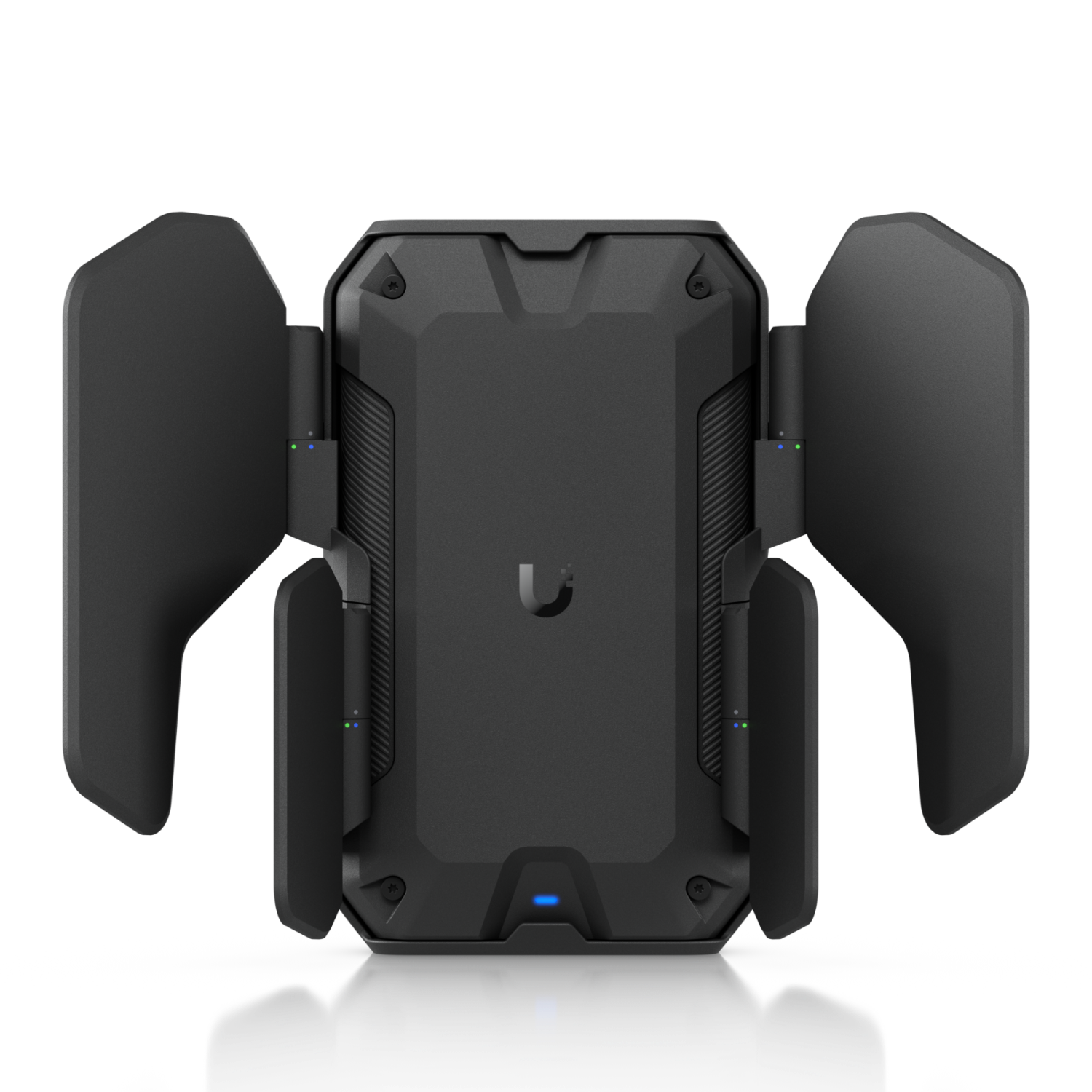

Access Point U7 Industrial
U7-Industrial 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
IP67 industrial WiFi 7 access point with extended-temperature operation, integrated high-gain directional RF system with adjustable isolation and beamwidth control.
Note. Requires UniFi Network 11 RC and Access Point 8.8.12 (expected Oct 12).
規格
Overview
| Dimensions | Device: 170 × 103 × 41.2 mm (6.7 × 4.1 × 1.6") ; Ball mount installed: 170 × 103 × 107.6 mm (6.7 × 4.1 × 4.2") ; Adjustable reflectors installed: 177.6 x 299.7 × 177.8 mm (7 x 11.8 × 7") ; Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (13.5 × 4.1 × 4.2") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts included) |
| Weatherproofing | IP67 |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
|---|---|
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | Directional internal (Built-in): 10 dBi, 95° x 45°; Directional internal (Reflector Wide Angle): 11 dBi, 70° x 45°; Directional internal (Reflector Narrow Angle): 12 dBi, 55° x 45°; External omni: 6 dBi, 360° x 45° |
| 2.4 GHz | Directional internal (Built-in): 8 dBi, 100° x 45°; Directional internal (Reflector Wide Angle): 9 dBi, 80° x 45°; Directional internal (Reflector Narrow Angle): 10 dBi, 65° x 45°; External omni: 5 dBi, 360° x 45° |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
Features
Hardware
| Max. Power Consumption | 13W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | Device: 577 g (1.3 lb); Ball mount: 163 g (5.8 oz); Reflector antenna set: 500 g (1.1 lb); Omni antenna set: 52 g (1.8 oz) |
| Wind Loading | 97.3 N at 200 km/h (21.9 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| System | (4) Blue: signal; (1) White/Blue: indicator |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
