描述

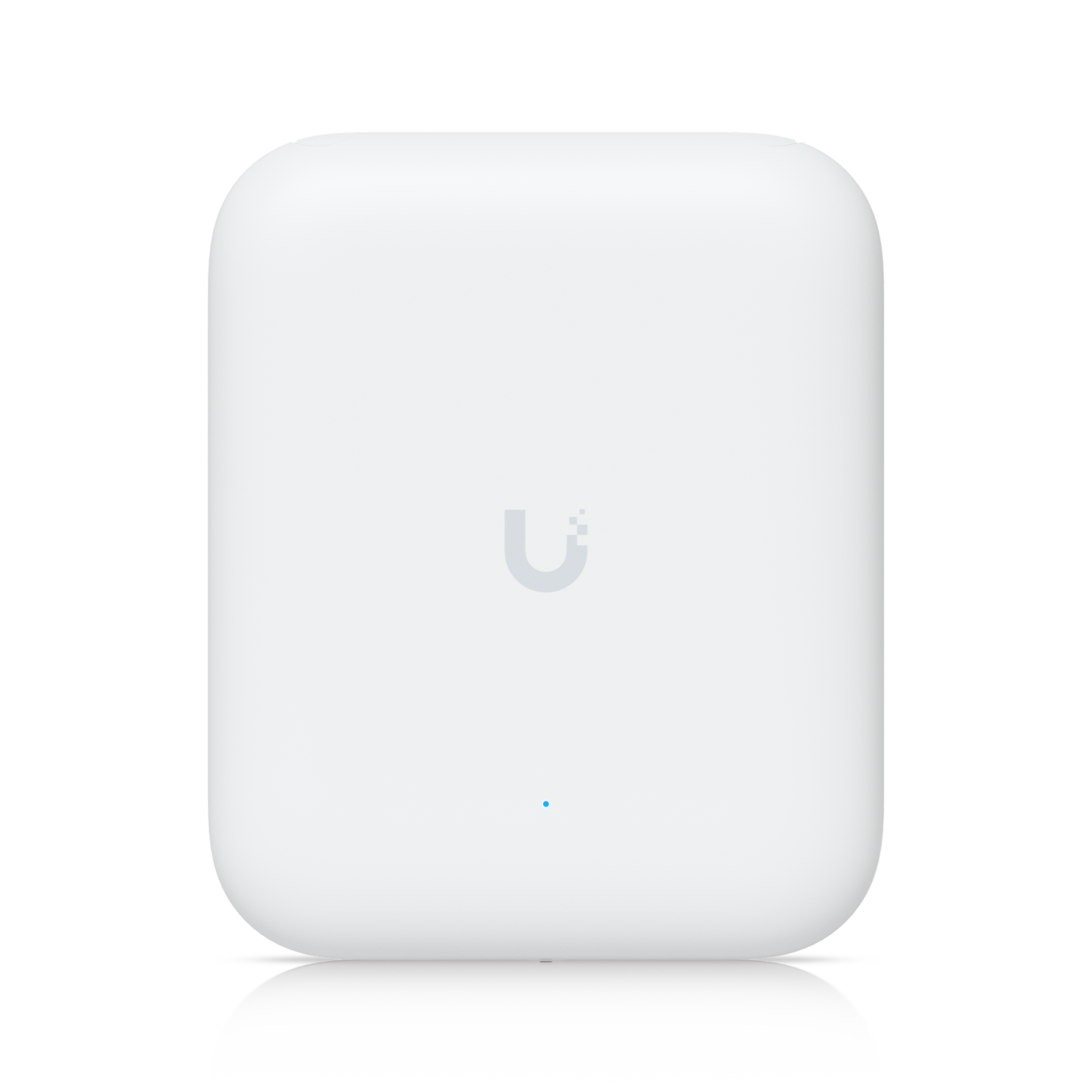

U7-Pro-Outdoor
Access Point U7 Pro Outdoor
U7-Pro-Outdoor 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Note. 6 GHz operation is supported in these countries. Long-range 6 GHz performance with AFC available in FCC/IC region only.
功能重點
- WiFi 7 with 6 GHz support
- 6 spatial streams
- Long-range 6 GHz performance with AFC*
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-switchable from internal directional to included external omni antennas
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
- Note. 6 GHz operation is supported in these countries.
- *Available in FCC/IC region only.
規格
Overview
| Dimensions | Without mount: 170 x 208 x 66.5 mm ; (6.7 x 8.2 x 2.6"); ; With mount: 170 x 208 x 121.8 mm ; (6.7 x 8.2 x 4.8") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole; (Mounts Included) |
| Weatherproofing | IPX6; IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
Performance
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
|---|---|
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 10 dBi, 90° x 45° |
| 5 GHz | Directional internal: 11 dBi, 90° x 45°; External omni: 8 dBi, 360° x 15° |
| 2.4 GHz | Directional internal: 8 dBi, 90° x 90°; External omni: 6 dBi, 360° x 15° |
| 6 GHz | 26 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
Hardware
| Max. Power Consumption | 21W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg (2.6 lb); With mount: 1.33 kg (2.9 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| System | (1) Power: White/Blue; (4) Mesh signal: Blue |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
Software
| UniFi Network | Version 9.0.114 and later |
|---|---|
| Mobile App | iOS™ version 10.20.2 and later; Android™ version 10.21.7 and later |
