描述
UVC-AI-MS-2
Camera AI Multi Sensor 2
UVC-AI-MS-2 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

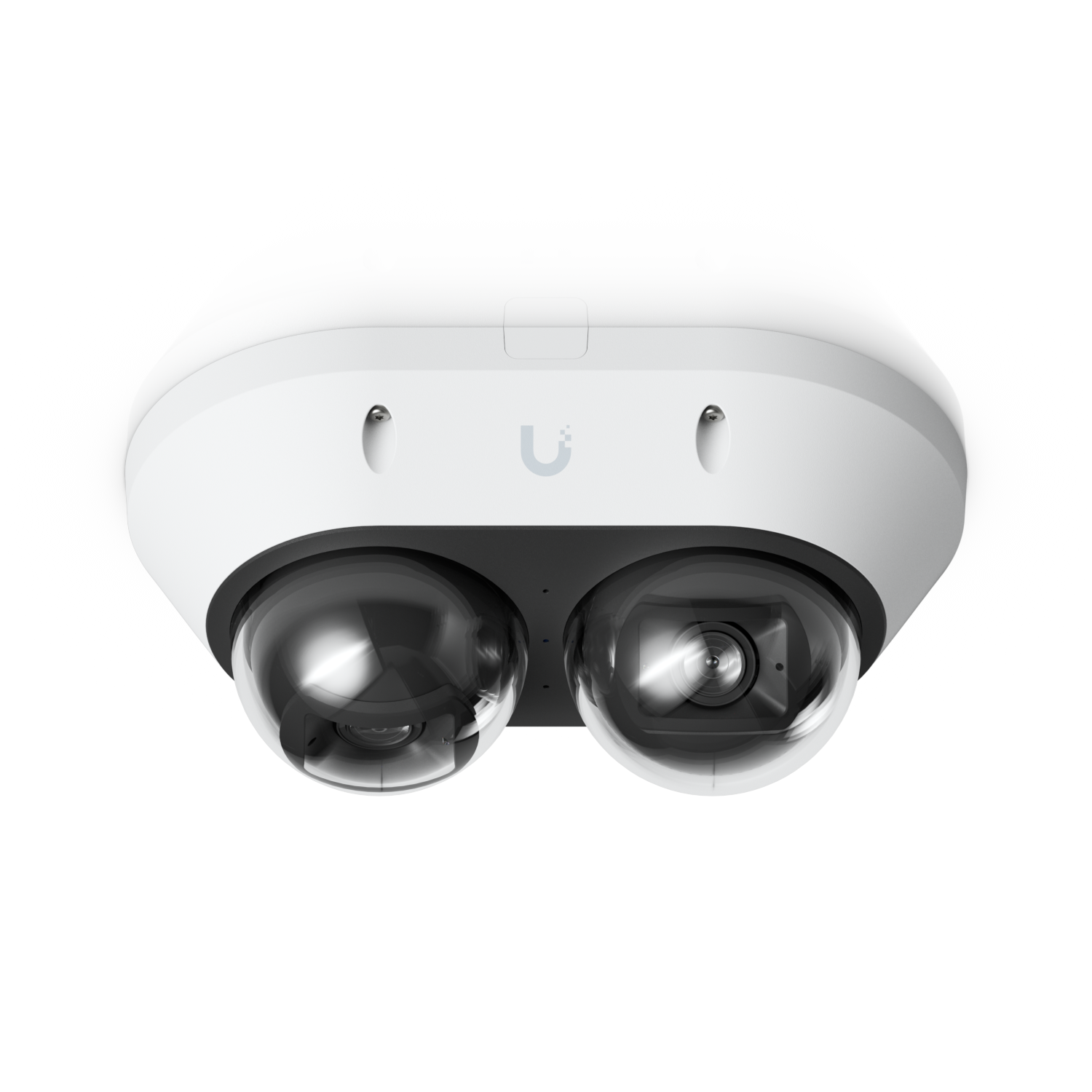

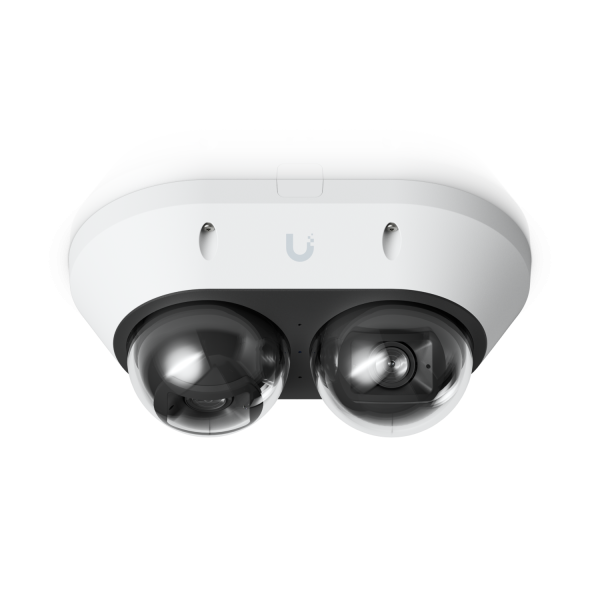

All-weather PoE+ 16MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 20 m IR coverage, and two independently adjustable lenses for wide-area and close-up monitoring.
規格
Overview
| Dimensions | 218 x 132 x 93.5 mm; (8.6 x 5.2 x 3.7") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2.33x Optical |
| Resolution | 16 MP |
| Field of View | Wide: H:108.8°, V:57.6° , D:130.8°; Tele: H:42.8°, V:24.1° , D:49.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Ceiling, Wall, Pole mount, Conduit pipe adapter (Included); Weather Shield, Arm, Pendant mount; (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | GbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | (2) 8MP 3840 x 2160 (16:9) |
| Sensor | 1/2.8" 8MP |
| Lens | (2) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Night Mode | Built-in adaptive IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 25W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Dual-core Arm® Cortex®-A76 based chip |
| Weight | 1.3 kg (3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Expansion Slot | MicroSD card |
| Button | (1) Factory-reset |
| LEDs | Status LED |
| Cable Diameter | Max. 6.5 mm (0.26") |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
