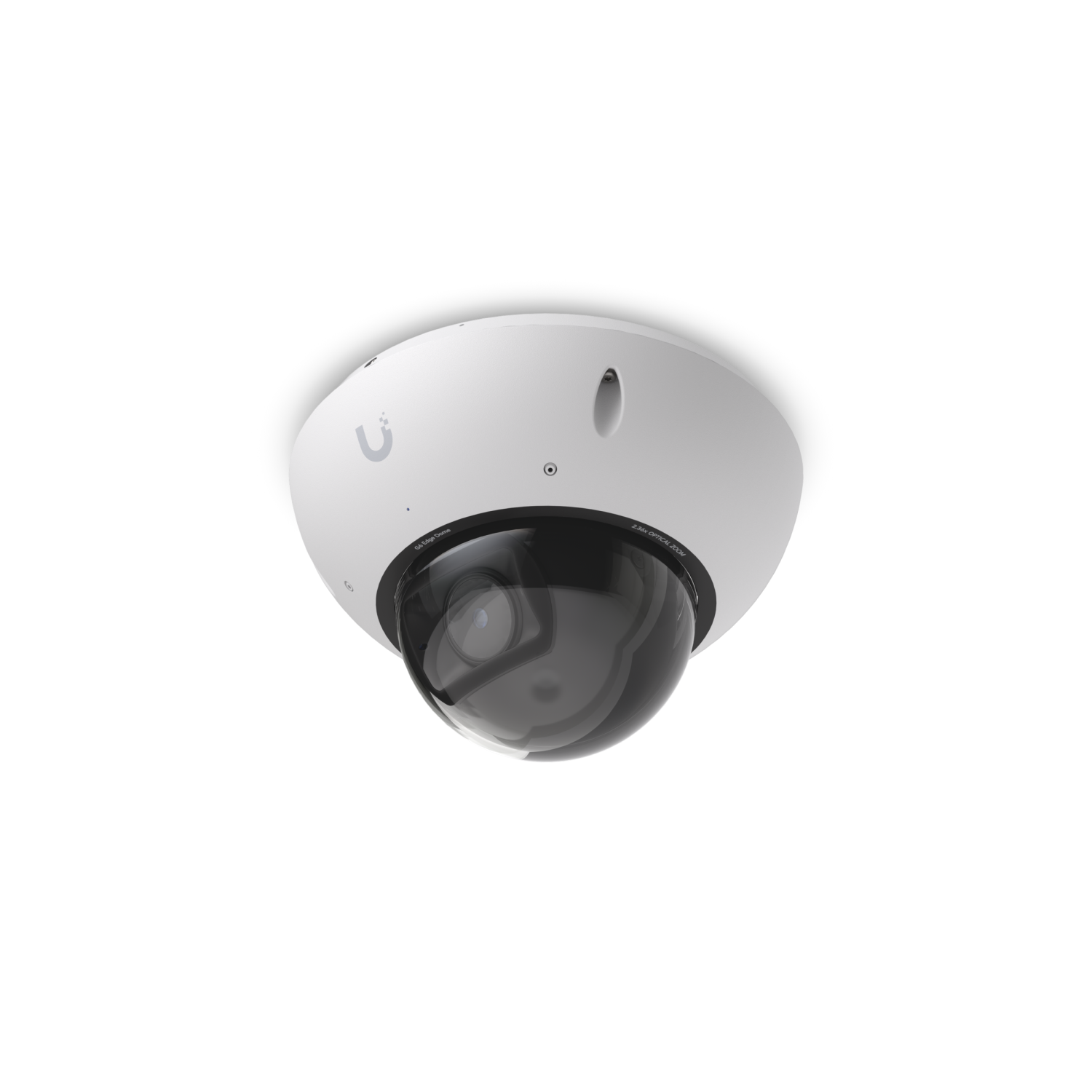

UBIQUITI Camera G6 Edge Dome UVC-G6-Edge-Dome

描述

UVC-G6-Edge-Dome

Camera G6 Edge Dome

UVC-G6-Edge-Dome 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

All-weather, vandal-proof 4K PoE+ camera that supports standalone operation* (NVR optional), integrated AI-powered search, 2.36x optical zoom, and a large 1/1.2″ CMOS sensor for exceptional low-light clarity and long-range IR night vision.

*Mobile app setup required for standalone.

規格

Overview

Dimensions	⌀163.8 × 108.8 mm; (⌀6.5 × 4.3")
IR Night Vision	40 m (131 ft)
Zoom Mode	2.36x Optical
Resolution	4K
Field of View	Wide: H: 113.8°, V: 61.9°, D: 134°; Tele: H: 45.5°, V: 25.8°, D: 52°
Audio	Microphone
Weatherproofing	IP66
Tamper Resistance	IK10
Mounting	Ceiling, Wall mount (Included); Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)
UniFi Application Suite	Protect

Performance

Networking Interface	GbE RJ45 port; Bluetooth
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate	30 FPS
Resolution	8MP 3840 x 2160 (16:9)
Sensor	1/1.2" 8MP
Lens	F 5.9-13.8 mm; ƒ/1.5-ƒ/2.9
Night Mode	Built-in adaptive IR LED illumination and IR cut filter

Hardware

Max. Power Consumption	15W
Supported Voltage Range	42.5–57V DC
Power Method	PoE+
Processor	Dual-core Arm® Cortex®-A76 based chip
Weight	1.2 kg (2.6 lb)
Enclosure Material	Aluminum alloy, polycarbonate
Mount Material	Stainless steel
Expansion Slot	MicroSD card
Button	(1) Factory reset
Ambient Operating Temperature	-20 to 50º C (-4 to 122º F)
Ambient Operating Humidity	0 to 90% noncondensing
Certifications	CE, FCC, IC

Software

Mobile App	iOS UniFi 10.38.1 version or later; iOS Protect 3.11.1 version or later; ; Android UniFi 11.0.1 version or later; Android Protect 3.8.3 version or later
