描述
CK-Enterprise

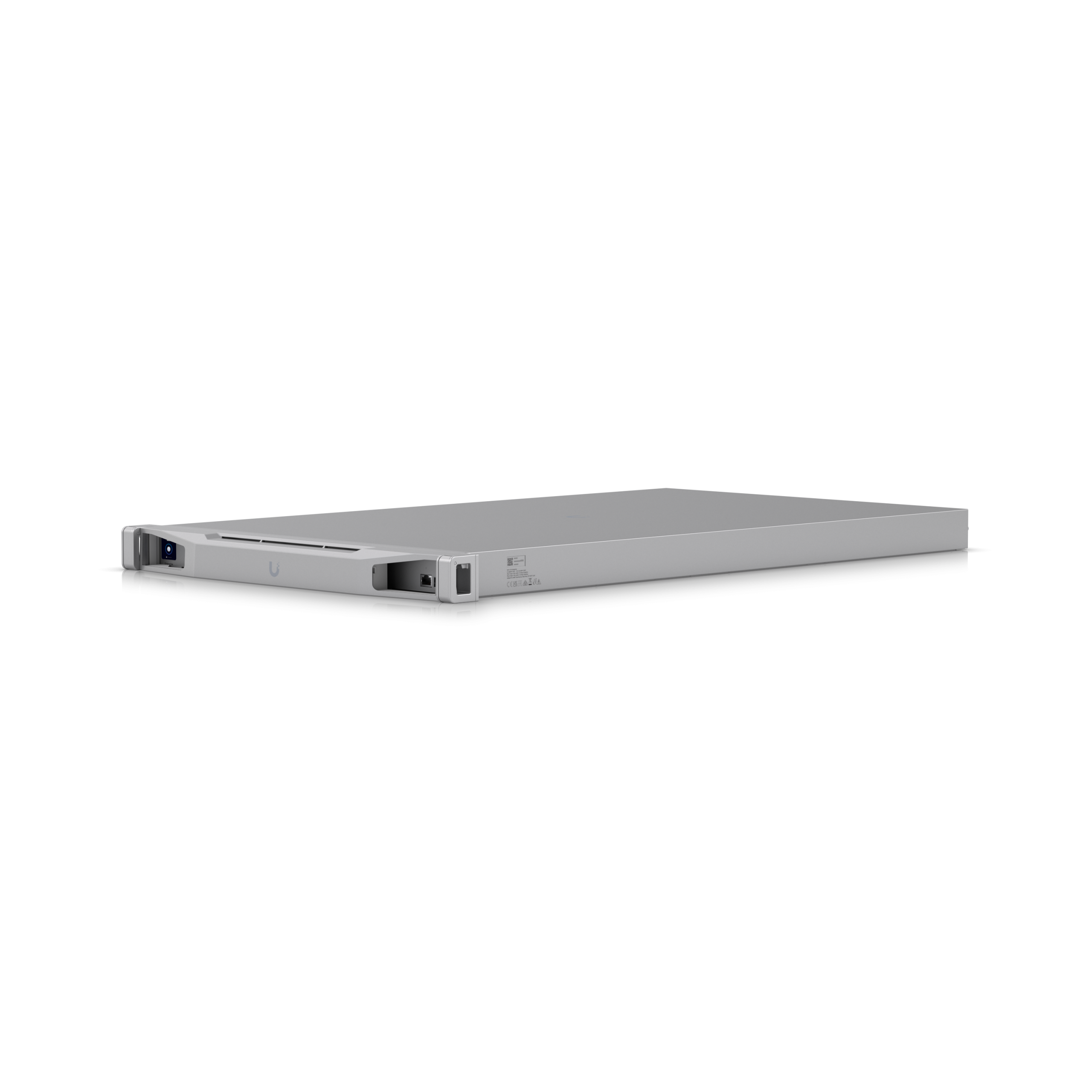

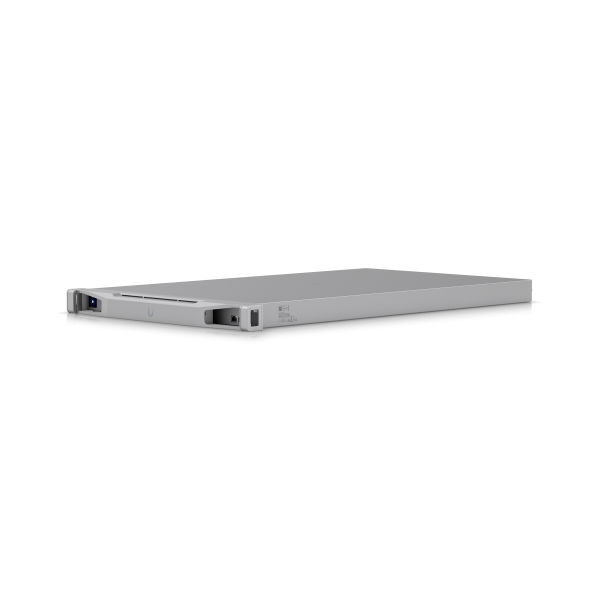

CloudKey Enterprise
CK-Enterprise 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
A UniFi Console designed for managing massive-scale UniFi Networks.
功能重點
- Manage 1,000+ UniFi Network devices and 10,000+ clients
- (1) 10G SFP+ and (1) GbE RJ45 LAN port
- (2) 550W redundant power supply units (PSUs)
- Full 1U form factor
- Bluetooth for instant setup
規格
Overview
| Dimensions | 787 x 43.7 x 481.4 mm; (31 x 1.7 x 19") |
|---|---|
| Managed UniFi Devices | 1,000 |
| Simultaneous Users Connected | 10,000 |
| 1 GbE RJ45 | 1; (1G/100M/10M) |
| 10G SFP+ | 1; (10G/1G) |
| MGMT | 1; (1G/100M/10M) |
| Form Factor | Rack Mount (1U) |
| Redundancy | (2) Hot-Swappable PSUs |
Networking
Hardware
| Max. Power Consumption | 190W |
|---|---|
| Power Method | Universal AC input, 100-240V AC, 7A Max., 50/60 Hz |
| Power Supply | (2) Hot-Swappable AC/DC 550W PSU |
| Supported Voltage Range | Universal AC input, 100-240V AC, 7A Max., 50/60 Hz |
| Heat Dissipation | 648 BTU/hr |
| Processor | 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz |
| System Memory | (2) 16 GB |
| On-board Storage | (1) 256 GB, M.2 2280 SATA |
| Weight | 13.1 kg (28.9 lb) |
| Enclosure Material | Front panel: Aluminium; Chassis: SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet; Bluetooth |
| Button | Factory Reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | 0 to 35° C (32 to 95° F) |
| Ambient Operating Humidity | 8 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 7.3.83 and later |
|---|
