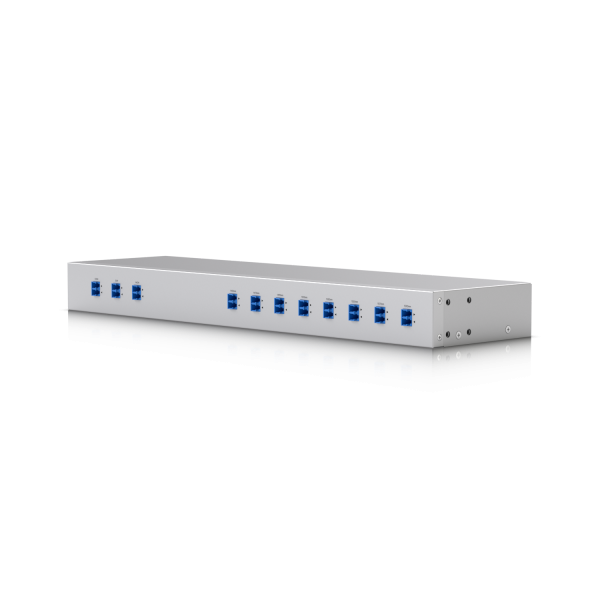

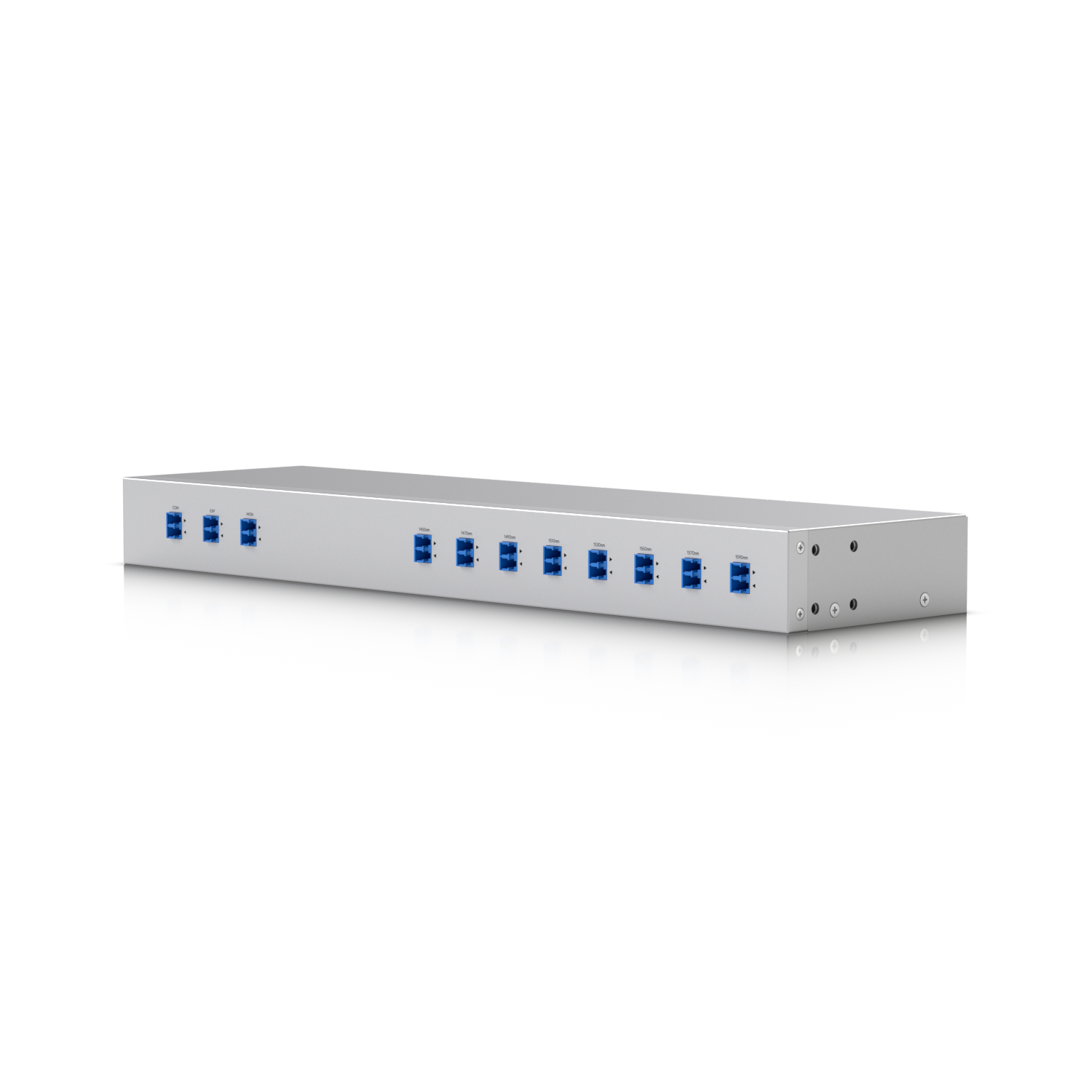

UACC-CWDM-8
CWDM Mux Demux 8
UACC-CWDM-8 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Rack-mountable 8-channel CWDM mux demux designed to increase capacity of existing fiber infrastructure.
功能重點
- (8) 1450/1470/1490/1510/1530/1550/1570/1590 nm channel ports
- (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
- (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
- (1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
規格
Overview
| Dimensions | 442 x 120 x 43.7 mm; (17.4 x 4.7 x 1.7") |
|---|---|
| Enclosure Material | SGCC steel |
| Weight | 1.4 kg (3.2 lb) |
| Pigtail and Connector Type | COM: 0.9 mm black LC/UPC; Other ports: 0.9 mm white LC/UPC |
| Connector | (1) COM (LC/UPC); (1) MON (LC/UPC); (1) EXP (LC/UPC); (8) 1450/1470/1490/1510/1530/1550/1570/1590 nm (LC/UPC) |
| Type | SMF-28e |
| Length | ≥0.5 to 1 m |
| Isolation | Adjacent Channel: Max. 30 dB; Non-Adjacent Channel: Min. 40 dB |
| Channel Count | 8 CH Mux/Demux |
| Channel Center Wavelength | 1450/1470/1490/1510/1530/1550/1570/1590 nm |
| Min. Channel Passband | ±6.5 nm |
| Insertion Loss | <2.5 dB (Max.) |
| Return Loss | 50 dB (Min.) |
| Max. Power Handling | 500 mW |
| Max. Passband Ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Max. Polarization Mode Dispersion | 0.1 ps |
| Min. Directivity | 55 dB |
| Ambient Storage Temperature | -40 to 90° C (-40 to 194° F) |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
