描述

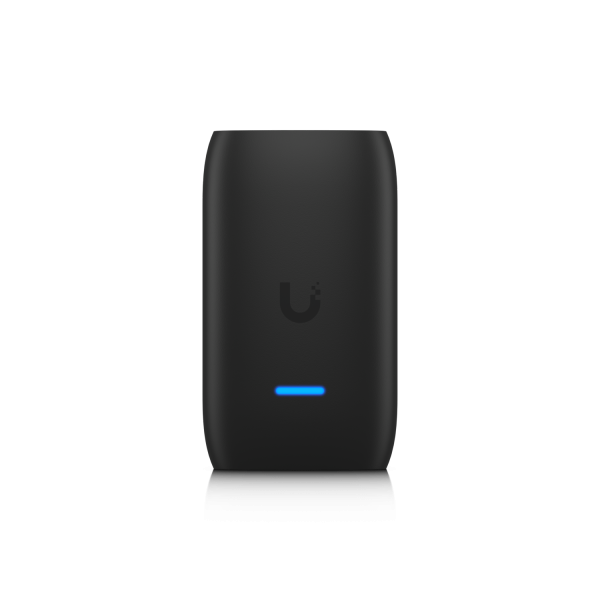

UC-Cast-Lite
Display Cast Lite
UC-Cast-Lite 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Digital signage player designed for media playback on HDMI displays.
Note. HDMI cable not included. Protect camera streaming not supported. Use Protect Viewport to view camera feeds on an HDMI display.
功能重點
- Supports media content playback up to 1080p resolution on any HDMI-compatible display
- Automatically powers the display on or off with HDMI CEC
- Powered by a USB-C adapter
- Connects easily with UniFi WiFi Auto-Link
- Note. HDMI cable not included. Protect camera streaming not supported. Use Protect Viewport to view camera feeds on an HDMI display.
規格
Overview
| Dimensions | Without mount: 90 x 52 x 31 mm ; (3.5 x 2.1 x 1.2"); With mount: 92.1 x 56.3 x 40.8 mm; (3.6 x 2.2 x 1.6") |
|---|---|
| Display Output | (1) HDMI port |
| Video Content Support | 480p / 720p / 1080p |
Mechanical
| Weight | Without mount: 160 g (5.6 oz); With mount: 180 g (6.3 oz) |
|---|---|
| Pole Mount Diameter | 1~2" (25–50 mm) |
Hardware
| Processor | Quad-Core Arm® Cortex®-A55, 1.9 GHz |
|---|---|
| Memory | Storage: 16 GB; RAM: 2 GB |
| Power Method | (1) USB Type-C 5V DC, 1A |
| Max. Power Consumption | 5W |
| Connectivity | WiFi 2.4G, BW 20/40 MHz; WiFi 5G, BW 20/40/80 MHz |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| System | White/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> ) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED; UL 62368-1, CSA C22.2 No. 62368-1 |
Software
| UniFi Connect Web | Version 3.17.0 and later |
|---|---|
| UniFi Connect iOS™ and Android™ | Version 2.26.0 and later |
