描述

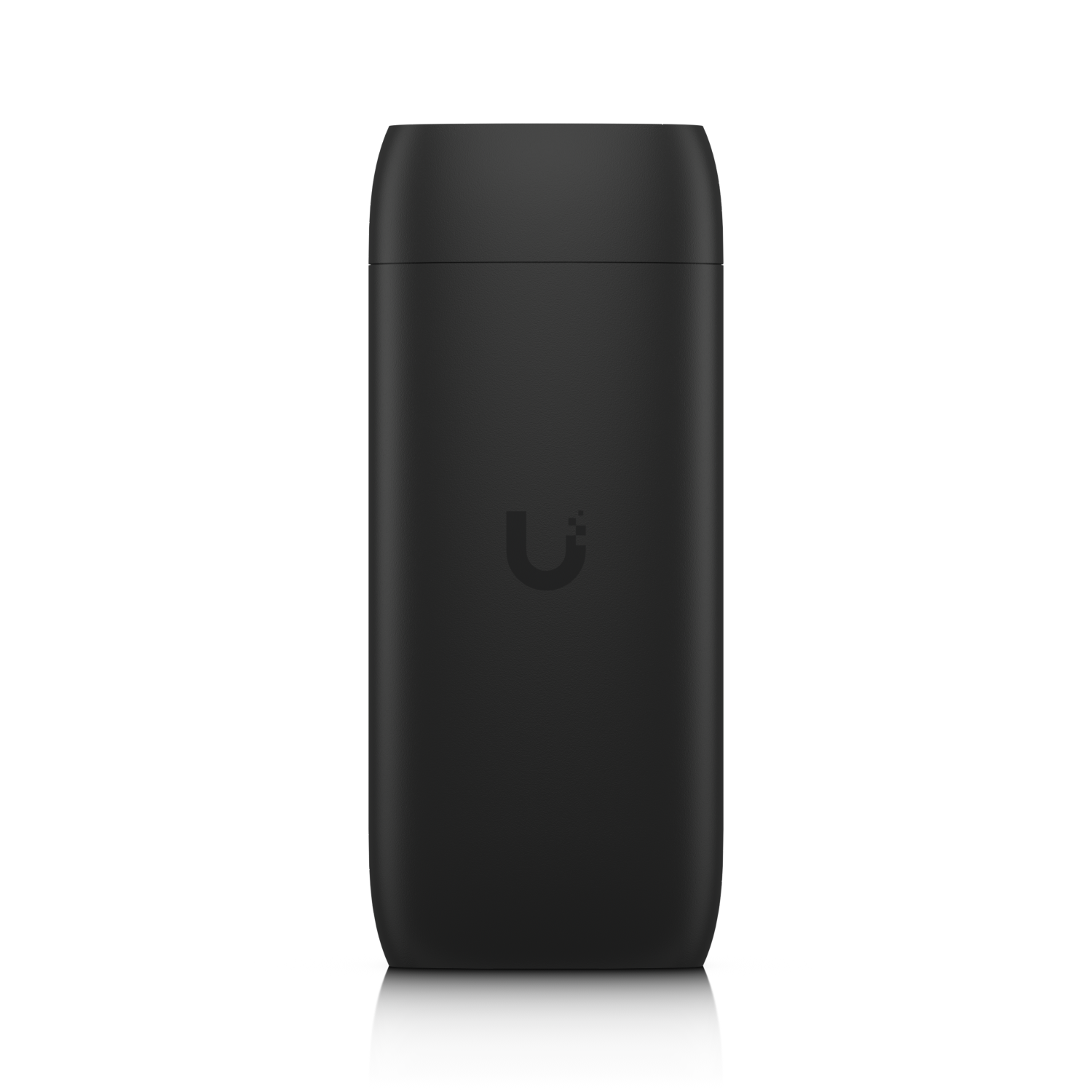

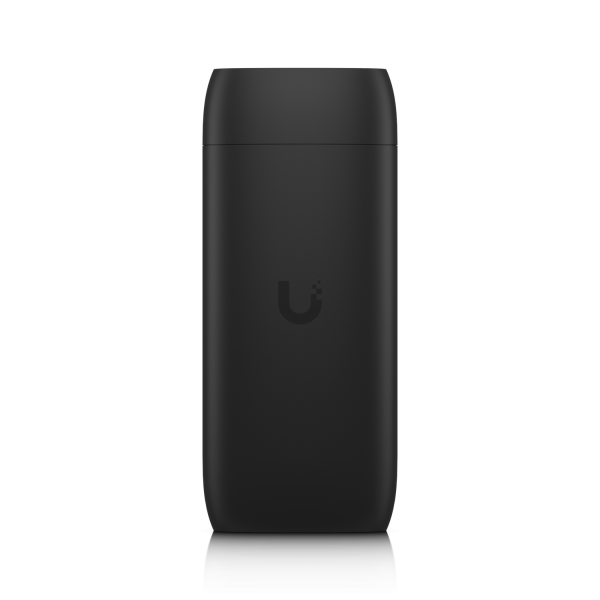

UC-Cast-Pro
Display Cast Pro
UC-Cast-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Note. USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect Viewport to view Protect camera feeds on an HDMI display.
功能重點
- Presents media content up to 4K resolution, websites, and YouTube videos to any HDMI-compatible display
- Create multimedia playlists and dynamic digital signage layouts with UniFi Connect
- Automatically power on/off display with HDMI CEC
- Keyboard and mouse control via USB-C
- PoE in or USB-C adapter power
- Connected with UniFi WiFi Auto-Link or Ethernet
- Note. USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect Viewport to view Protect camera feeds on an HDMI display.
規格
Overview
| Dimensions | Without mount: 123 x 52 x 31 mm; (4.8 x 2.1 x 1.2"); With mount: 125.1 x 56.3 x 40.8 mm; (4.9 x 2.2 x 1.6") |
|---|---|
| Display Output | (1) HDMI port |
| Video Content Support | 480p / 720p / 1080p / 4k |
Mechanical
| Weight | Without mount: 240 g (8.5 oz); With mount: 260 g (9.2 oz) |
|---|---|
| Pole Mount Diameter | 1—2" (25—50 mm) |
Hardware
| Processor | Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55; Integrated Mali-G57 GPU |
|---|---|
| Memory | Storage: 32 GB; RAM: 8 GB |
| Power Method | (1) GbE RJ45 PoE 48V DC, 0.35A; (1) USB Type-C 5V DC, 3A; UL 60950-1/62368-1 LPS/PS2 PSU |
| Connectivity | WiFi 2.4G, BW 20/40 MHz; WiFi 5G, BW 20/40/80 MHz |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| System | White/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> ) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED; UL 62368-1, CSA C22.2 No. 62368-1, Anatel: 06981-25-08356 |
Software
| UniFi Connect Web | Version 3.14.6 and later |
|---|---|
| UniFi Connect iOS™ and Android™ | Version 2.18.1 and later |
