描述

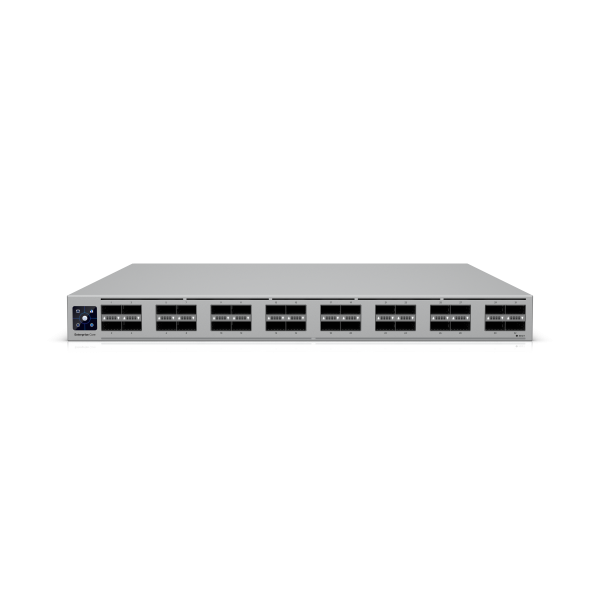

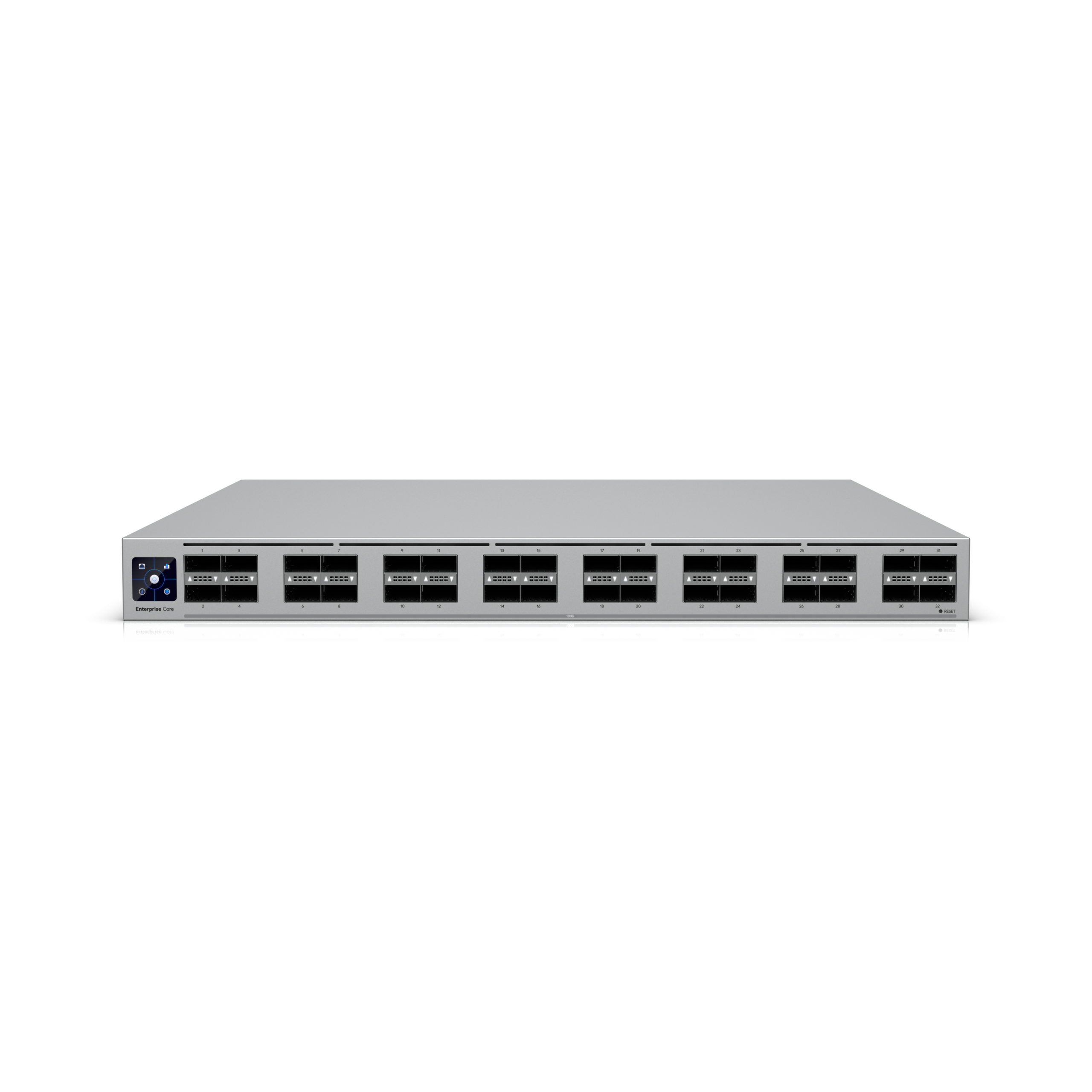

ECS-Core
Enterprise Campus Switch Core
ECS-Core 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
3.2 Tbps high-density 100G Layer 3 Etherlighting™ core switch with MC-LAG support for high availability system design.
Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
規格
Overview
| Dimensions | 442.4 x 43.7 x 480 mm; (17.4 x 1.7 x 18.9") |
|---|---|
| 1 GbE RJ45 | 1; (1G/100M/10M) |
| 100G QSFP28 | 32; (100G/40G) |
| Console | 1 |
| Redundancy | Multi-Chassis Link Aggregation (MC-LAG); (2) Hot-Swappable PSUs; (5) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
Performance
| Switching Capacity | 6.4 Tbps |
|---|---|
| Total Non-Blocking Throughput | 3.2 Tbps |
| Forwarding Rate | 2.8 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 24 MB |
| IPv4 | 512 |
| MAC | 512 |
Layer 3 Features
Layer 2 Features
Hardware
| Max. Power Consumption | 360W |
|---|---|
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet; AR; Serial Console |
| Heat Dissipation | 1,228 BTU/hr |
| Weight | Without mounting brackets: 9.7 kg (21.4 lb); With mounting brackets: 9.8 kg (21.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks; Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (5) Hot-swappable fan modules |
| ESD Protection | Air: ± 12KV; contact: ± 8KV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 10.6.101 and later |
|---|
