描述
UACC-ENVR-Bezel

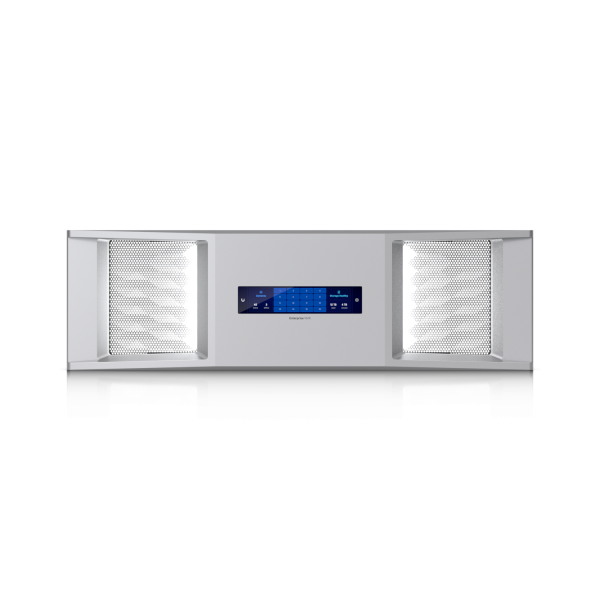

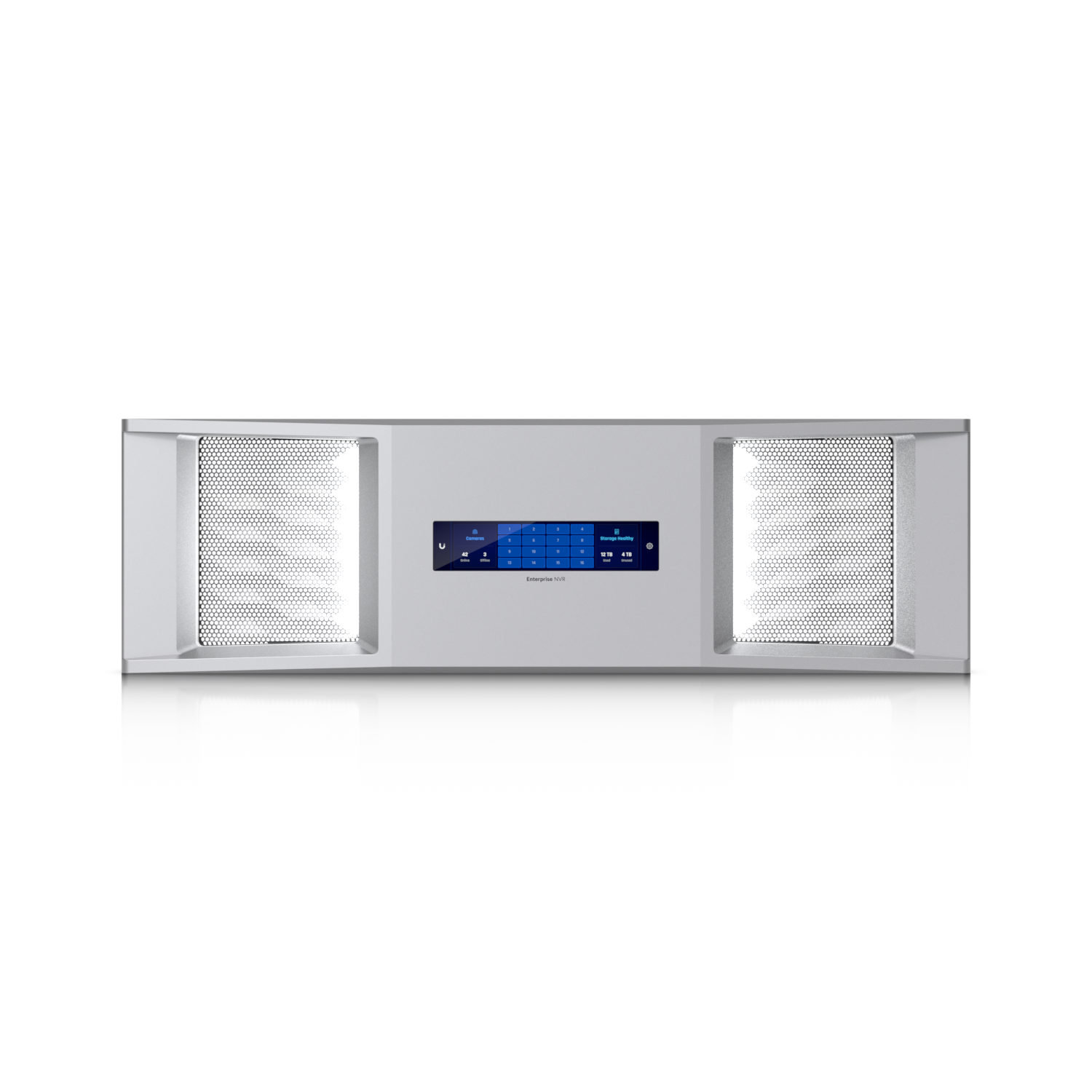

Enterprise NVR Bezel
UACC-ENVR-Bezel 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Faceplate that integrates with Enterprise NVR to provide a 4.7″ touch display and LED illumination.
功能重點
- Disc overview and management
- View livestreams directly from the rack
- Physically secure discs with a door latch
- 4.7" touchscreen
- Note. Support ENVR firmware version 4.1.10 and later.
規格
Mechanical
| Dimensions | 441.7 x 132 x 51.9 mm (17.4 x 5.2 x 2") |
|---|---|
| Weight | 1.1 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
Hardware
| Power Method | Magnetic Type-C |
|---|---|
| Supported Voltage Range | 5V |
| Max. Power Consumption | 3.78W |
| ESD/EMP Protection | Air: ± 12kV, contact: ± 8kV |
| LCM Display | (1) 4.7" touchscreen |
| LEDs | Boot sequence wave pattern; User configurable status; Locate function |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, IC, FCC |
